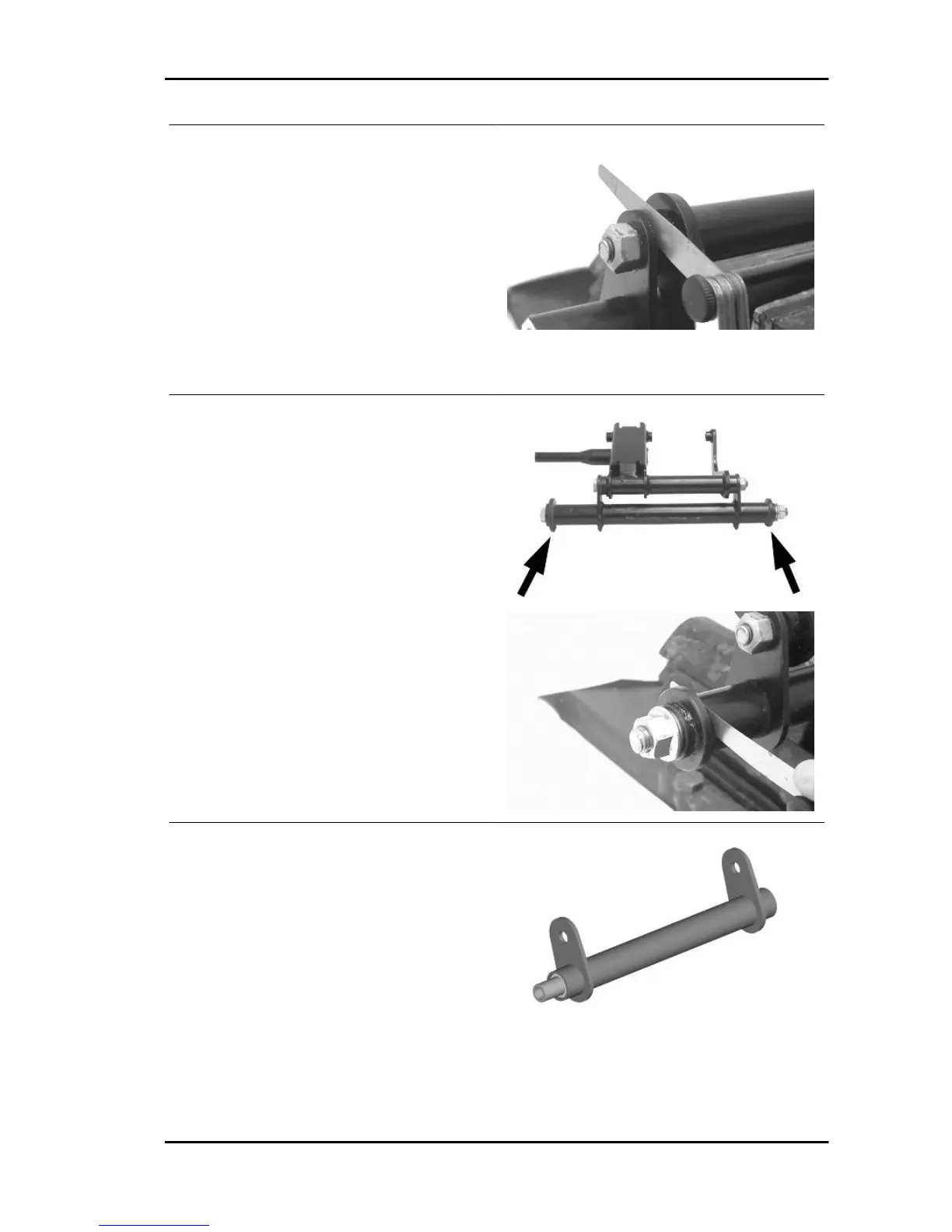

- Check there is no sticking in the movement of the
connection of the swinging arm on the engine side
to the swinging arm on the chassis side.
- Check the axial clearance between the two
swinging arms using a feeler gauge
Characteristic
Allowable limit after use:
1 mm
standard clearance
0.40 - 0.70 mm
- In order to check the clearance of the swinging
arm on the frame side, prepare a retainer using the
fixing pin of the swinging arm on the frame and two
rings from the special tool 020229Y.
Alternatively, use two washers with inside diame-
ter of 12 mm for pins, outside diameter min. 30 mm
and thickness min. 4 mm.
- Separate the swinging arm on the engine side
from the vehicle side arm.
- Remove the internal spacer shown in the picture
Beverly 300 i.e. Suspensions
SUSP - 223
