Switches check
To check buttons and switches, check that, according to their position, the continuity of contacts is
correct as indicated in the following charts.
KEY
Ar: Orange Az: Sky Blue Bi: White Bl: Blue Gi: Yellow Gr: Grey Ma: Brown Ne: Black Ro: Pink Rs:
Red Ve: Green Vi: Purple

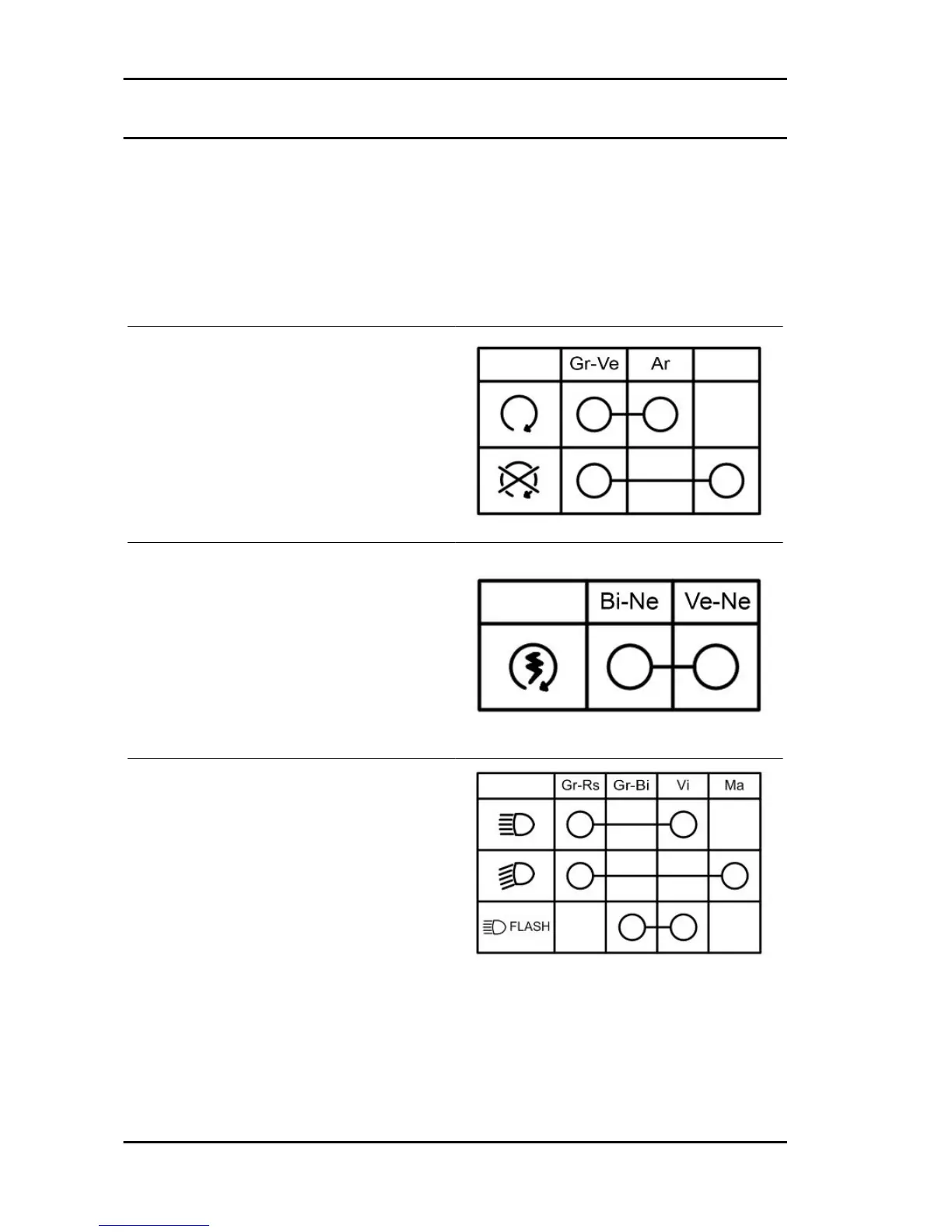

ENGINE STOP SWITCH
STARTER BUTTON
LIGHT SWITCH
Electrical system Beverly 300 i.e.
ELE SYS - 82
