PIAGGIO Beverly 300 i.e. - Inspecting the Piston; Inspecting the Piston Rings; Removing the Piston

Cylinder - piston assy.
Inspecting the piston
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Cylinder - piston assy.
Inspecting the piston rings
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Piston rings

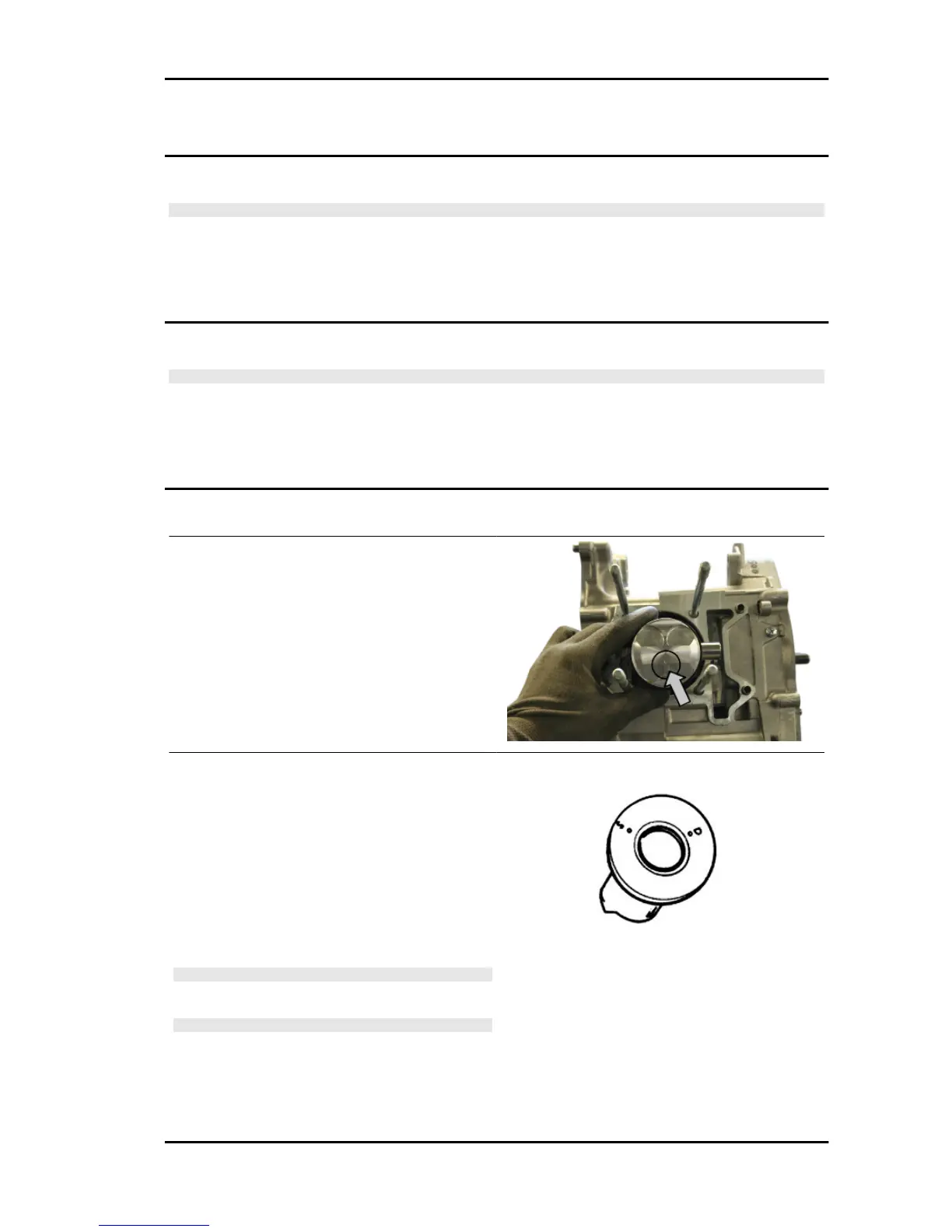

Removing the piston
- Install piston and wrist pin onto the connecting
rod, aligning the piston arrow the arrow facing to-
wards the exhaust.
- Fit the pin retainer ring onto the appropriate tool
- With opening in the position indicated on the tool
S = left
D= right
- Place the wrist pin retainer ring into position using
a punch
- Fit the wrist pin retainer ring using the plug as
shown in the figure
N.B.
THE TOOL FOR INSTALLING THE RETAINER RINGS MUST
BE USED MANUALLY.
CAUTION
USING A HAMMER MIGHT DAMAGE THE STOPS' HOUS-
ING.
Specific tooling
020430Y Pin lock fitting tool
Beverly 300 i.e. Engine
ENG - 143
