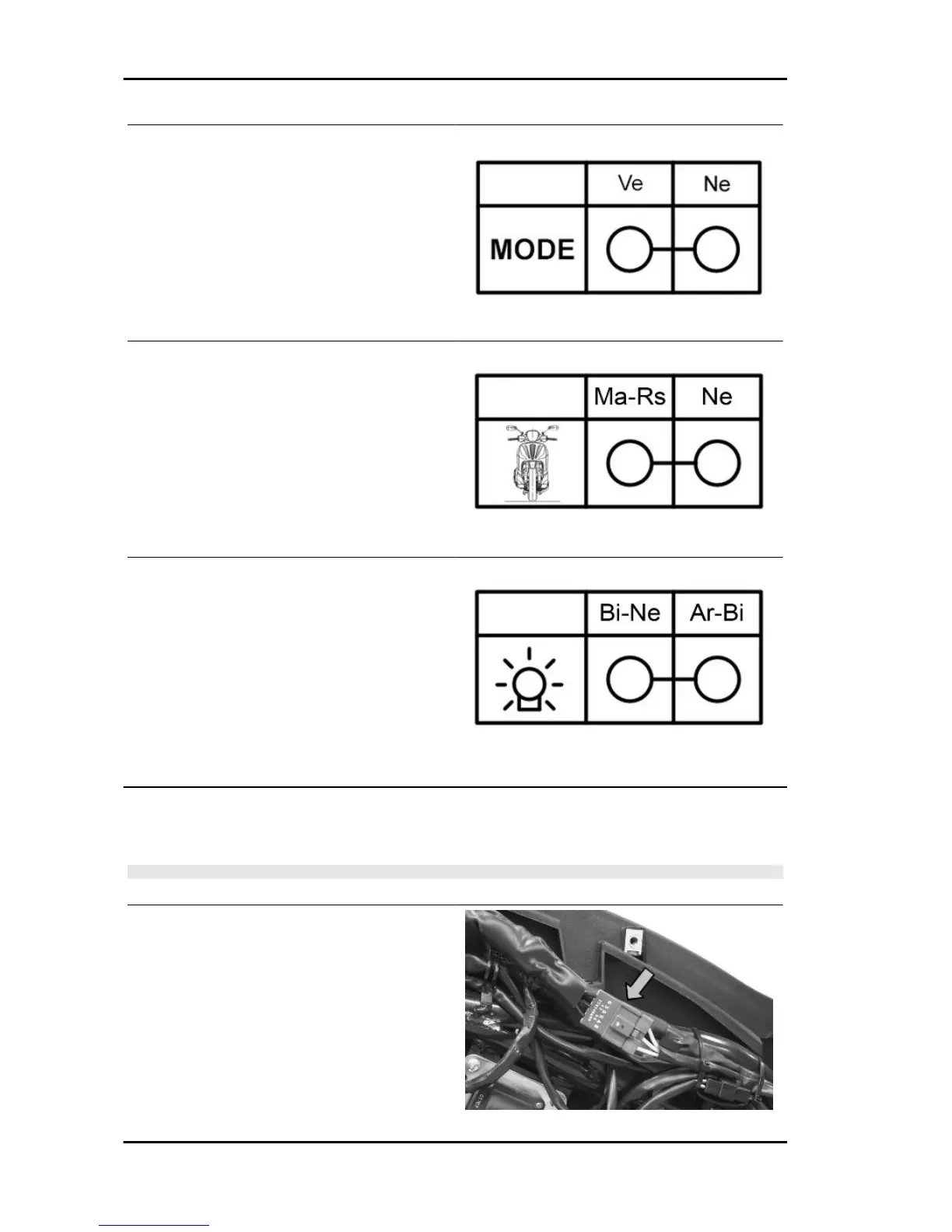

PIAGGIO Beverly 300 i.e. - Stator Check; Mode Button Check; Stand Button Check; Stop Buttons Check

MODE BUTTON
STAND BUTTON
STOP BUTTONS
Stator check
Checking the stator windings
WARNING
THIS CHECK-UP CAN BE MADE WITH THE STATOR PROPERLY INSTALLED.
1) Remove the right side panel.
2) Disconnect the connector between stator and
regulator with the three yellow cables as shown in
the picture.
3) Measure the resistance between each of the
yellow terminals and the other two.
4) Check that there is insulation between the each
yellow cable and the ground.
Electrical system Beverly 300 i.e.
ELE SYS - 84
