This section describes the operations to be carried out on the engine and the tools to be used.
This section describes the operations to be carried out on the engine and the tools to be used.
This section describes the operations to be carried out on the engine and the tools to be used.

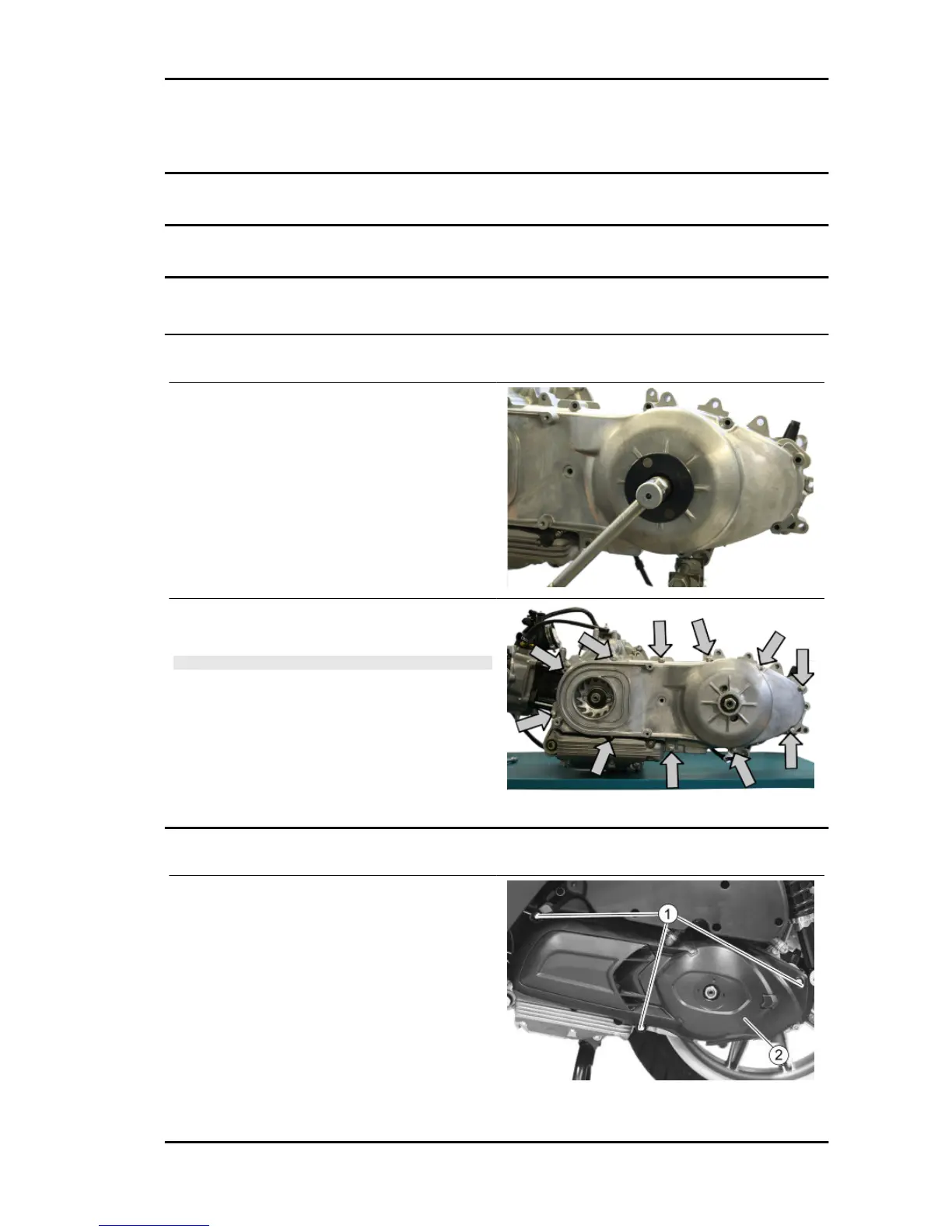

Automatic transmission
Transmission cover
- Remove the air duct.
- With the specific tool lock the driven pulley, undo
the indicated nut and collect the washer.
Specific tooling
020423Y Driven pulley lock wrench
- Undo the eleven fixings screws to the engine and
remove the transmission cover
N.B.
WHEN YOU ARE REMOVING THE TRANSMISSION COVER
YOU MUST BE CAREFUL NOT TO DROP THE CLUTCH
HOUSING.
Air duct
- Undo the three screws «1» and remove the
crankcase cover «2».
Beverly 300 i.e. Engine
ENG - 109
