PIAGGIO Beverly 300 i.e. - Removing the Oil Sump

- Fit the sprocket wheel with a new O-ring.
- Fit the chain.
- Fit the central screw and the cup washer. Tighten
to the prescribed torque.
-Fit the oil pump cover, by tightening the two
screws to the prescribed torque.
N.B.
FIT THE CUP WASHER SO THAT ITS OUTER RIM TOUCH-
ES THE PULLEY. MAKE SURE THAT THE PUMP TURNS
FREELY.
Locking torques (N*m)
Screws fixing oil pump to the crankcase 5 ÷ 6
Oil pump command sprocket screw 10 to 14 Oil
pump cover screws 0.7 - 0.9
Removing the oil sump
- Drain the oil from the sump.

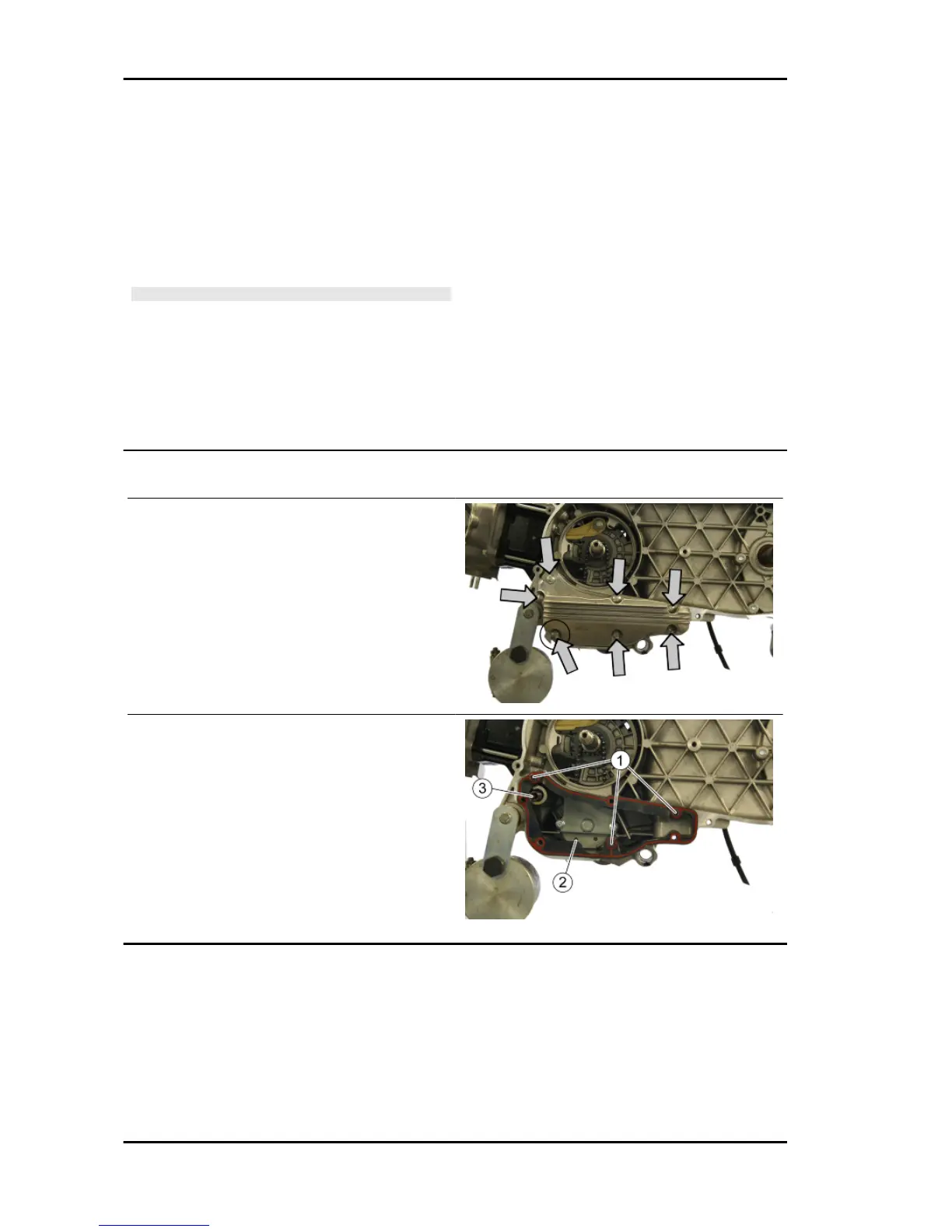

- Remove the seven screws indicated in the figure
and the bracket of the rear brake pipes.
- Check the correct position of the three alignment
dowels «1» and remove gasket «2», spring and
by-pass piston «3».
