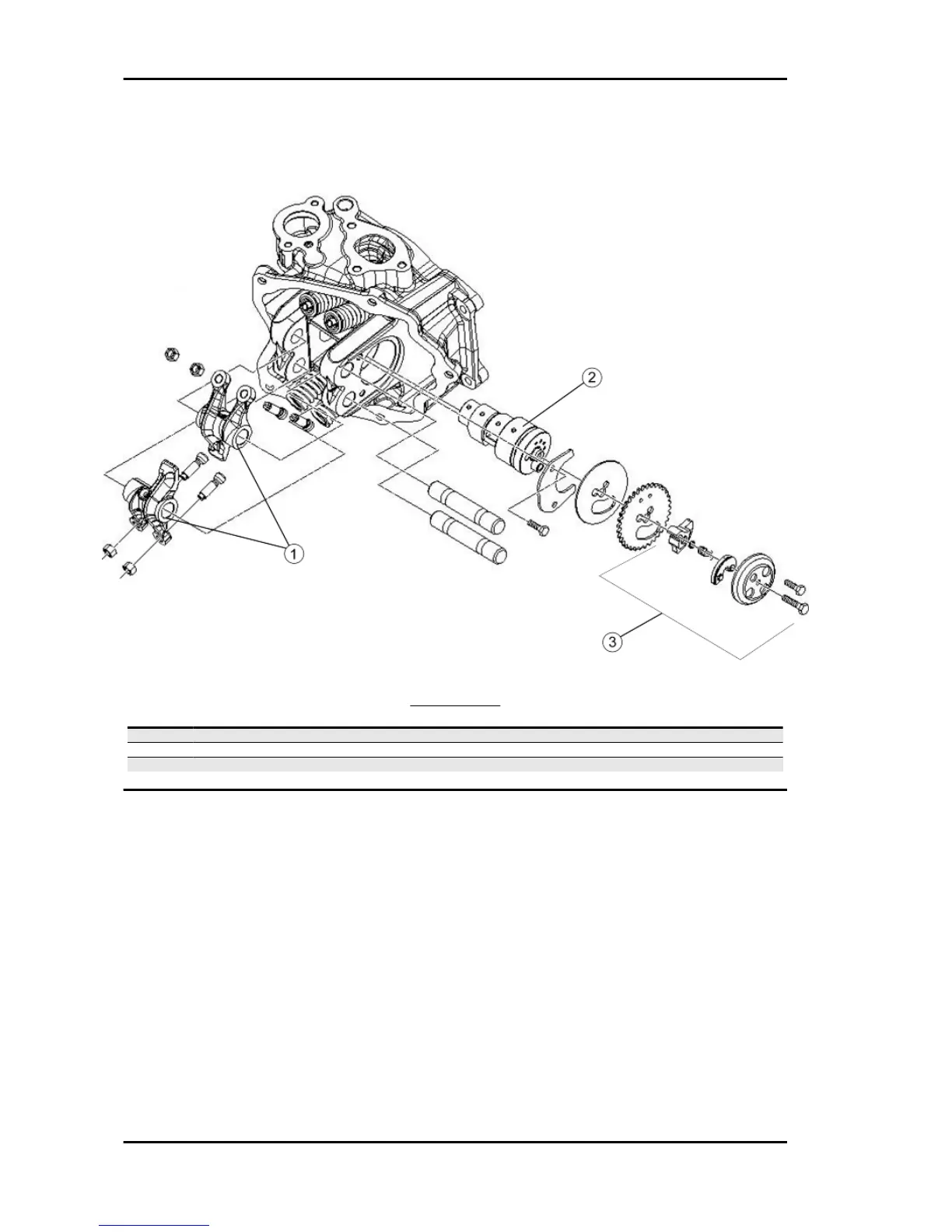

Rocker arms support assy.

CAMSHAFT

Code

Action Duration

1 001148 Rockers valves - Replacement

2 001044 Camshaft - Replacement

3 001169 Pressure reducer - Replacement

Time Beverly 300 i.e.
