Overhaul

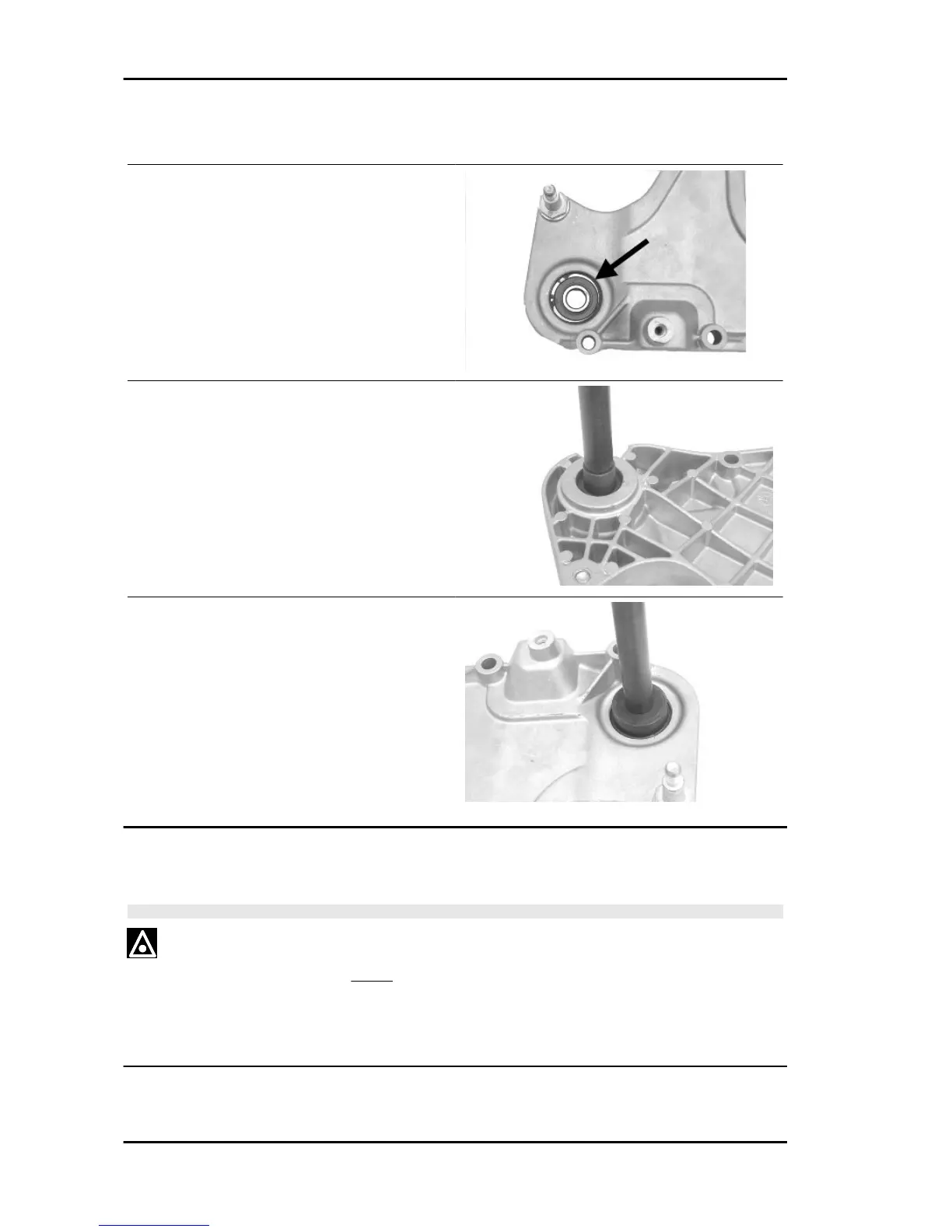

- Remove the circlip shown in the picture
- Support the silencer support bracket sufficiently
- Using the special punch, remove the bearing
from its seat as shown in the picture
Specific tooling
020376Y Adaptor handle
020456Y Ø 24-mm adaptor
- Heat the bearing seat using the heat gun
- Using the special punch, install a new bearing in
the seat as shown in the picture
Specific tooling
020376Y Adaptor handle
020151Y Air heater
Refitting
To refit, carry out the removal operations in reverse order, observing the prescribed tightening torques.
N.B.
THE SILENCER SUPPORT ARM MUST BE TIGHTENED AFTER TIGHTENING THE WHEEL.
Locking torques (N*m)
Rear wheel axle nut 104 ÷ 126 Silencer supporting arm to engine screws (*) 20 to 25 Right shock
absorber lower retainer 40 ÷ 45
Suspensions Beverly 300 i.e.
SUSP - 230
