PIAGGIO Beverly 300 i.e. - Refitting the Flywheel Magneto; Refitting the Starter Motor

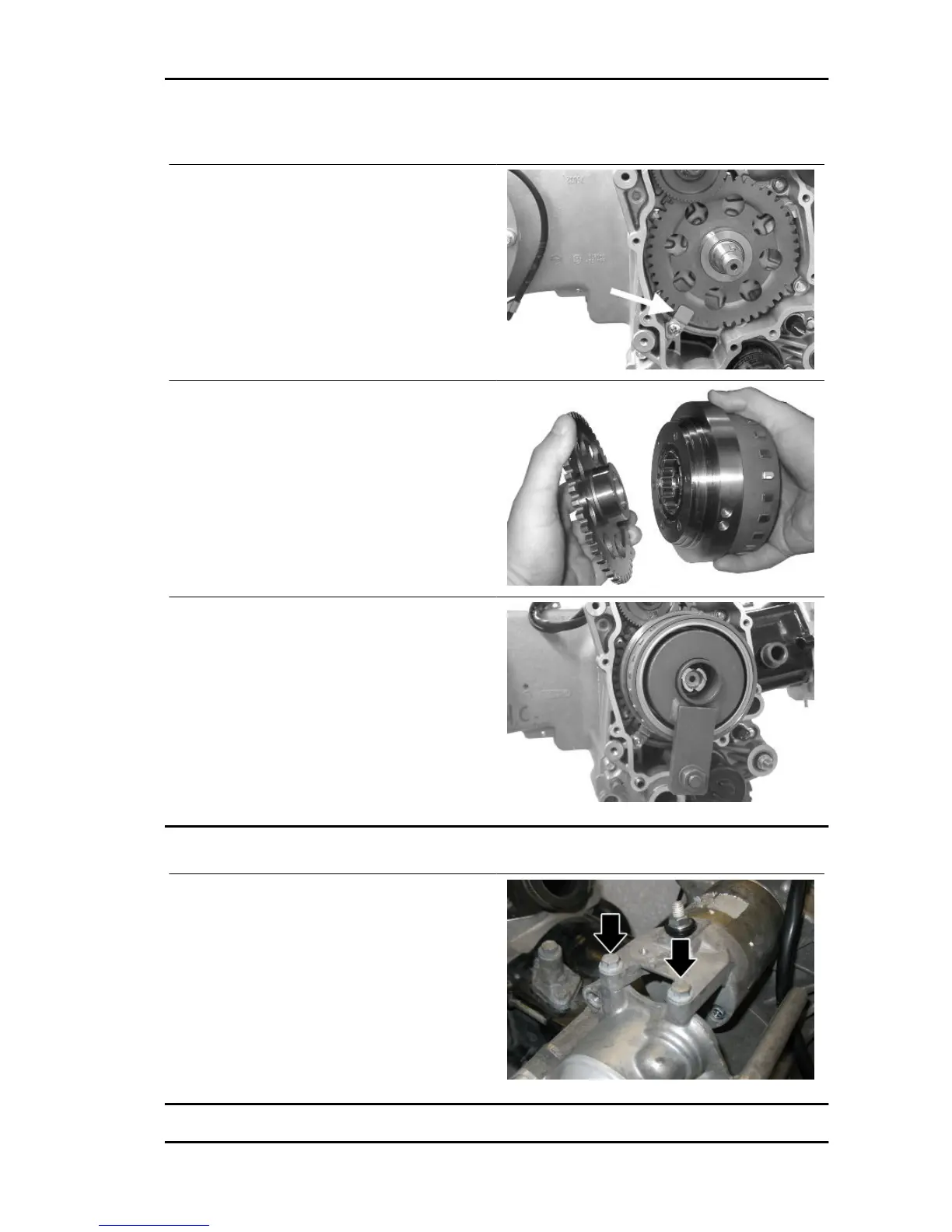

Refitting the flywheel magneto
- Remove the freewheel retaining plate indicated
in the picture
- Remove the transmission gear and the freewheel
- Insert the free wheel on the flywheel as shown in
the picture
- Then refit the flywheel with free wheel and trans-
mission gear
- Using the special flywheel lock wrench, tighten
up the flywheel fixing nut to the prescribed torque
- Refit the retention plate
Specific tooling
020627Y Flywheel lock wrench
Locking torques (N*m)
Flywheel nut 94 - 102
Refitting the starter motor
- Fit a new O-ring on the starter motor and lubricate
it.
- Fit the starter motor on the crankcase and lock
the 2 screws to the prescribed torque.
Locking torques (N*m)
Starter motor screws 11 - 13
