THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK
OF FIRE.

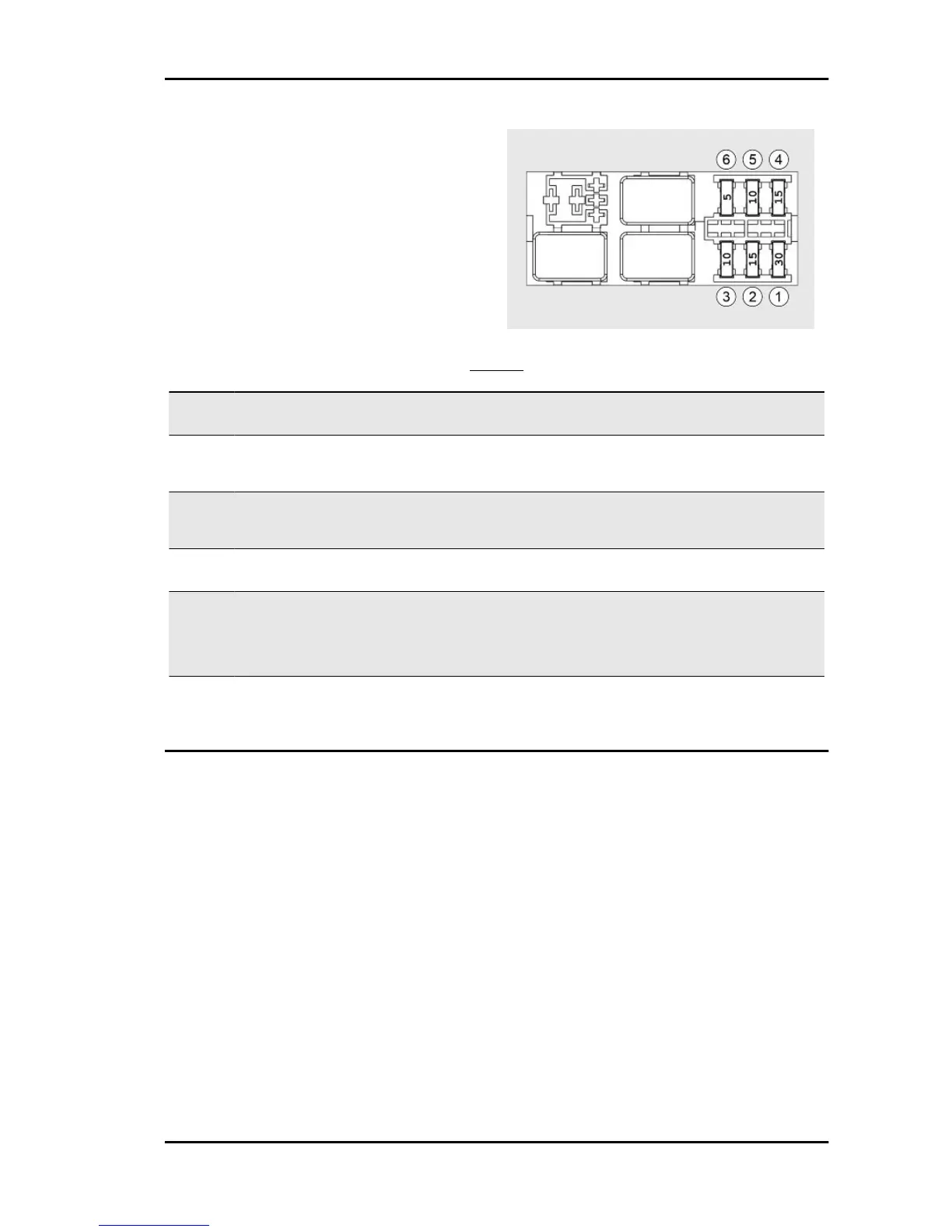

FUSES
Specification Desc./Quantity
1 Fuse No. 1 Capacity:30 A
Protected circuits: general, recharge battery
Live: fuses No. 5 and 6
2 Fuse No. 2 Capacity: 15A
Protected circuits: battery-powered: antitheft device
pre-installation, saddle opening control unit pre-installa-
tion, electric fan relay (contact)
3 Fuse No. 3 Capacity: 10A
Protected circuits: battery powered B.T. socket, helmet
compartment light bulb, electronic control unit, injection
load relay (contact); live saddle opener actuator
4 Fuse No. 4 Capacity: 15 A
Protected circuits: battery powered headlight relay
(contact), instrument panel
5 Fuse No. 5 Capacity: 10 A
Protected circuits: live antitheft pre-installation, saddle
opening control unit pre-installation, turn indicator con-
trol device, high-beam flash, instrument panel, daylight
running light, horn, stop lights, starter enabling switch,
licence plate light
6 Fuse No. 6 Capacity: 5A
Protected circuits: live headlight relay (coil), immobil-
iser aerial, electronic control unit, injection load relay
(coil)
Beverly 300 i.e. Electrical system
ELE SYS - 91
