Axial connecting rod - crankshaft clearance
Standard clearance
0.20 to 0.50 mm

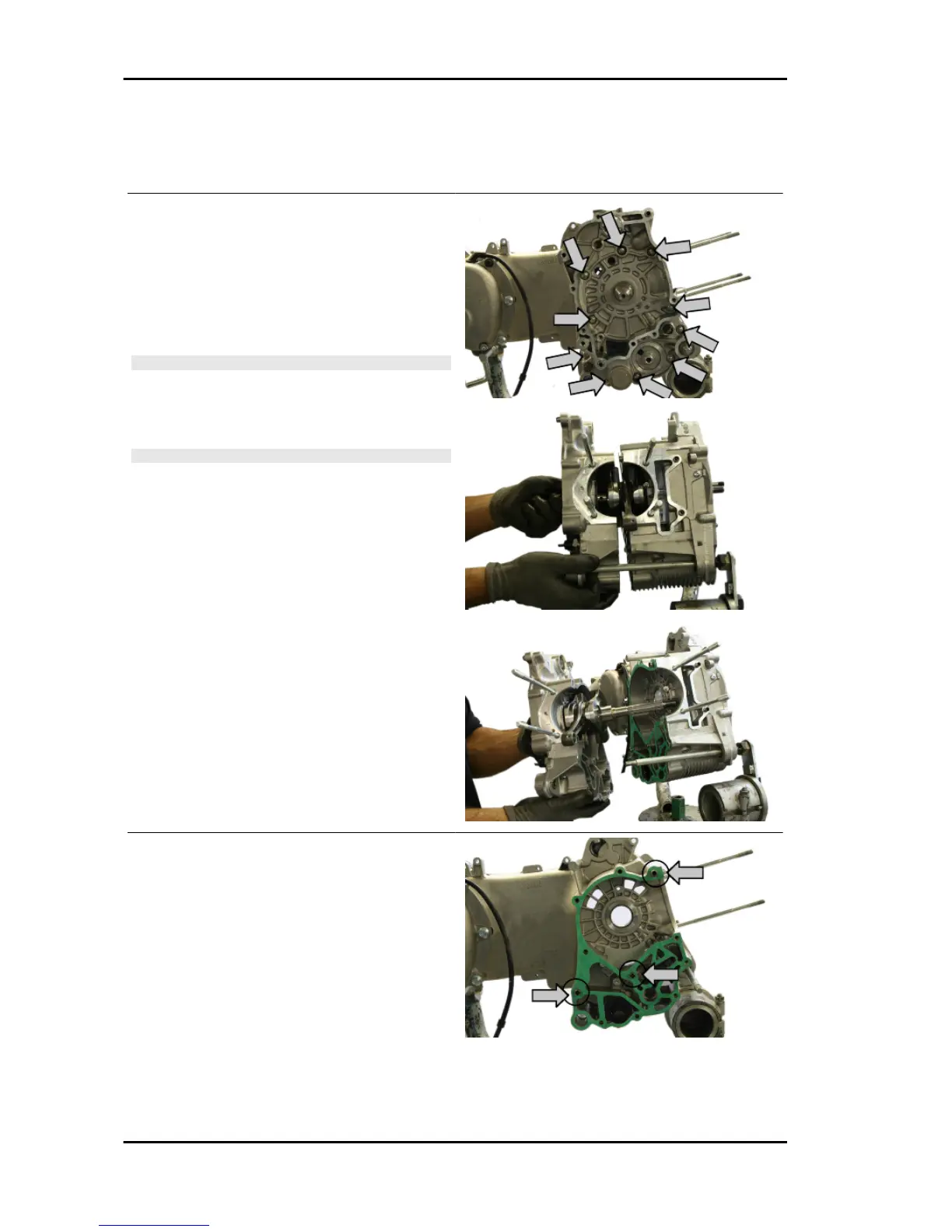

CRANKCASE OPENING
- Undo the ten crankshaft coupling screws.
- Separate the crankcase halves while keeping the
crankshaft in one of these two halves.
- Only after the halves have been separated, can
the crankshaft be checked.
CAUTION
WHILE OPENING THE CRANKCASES AND REMOVING
THE CRANKSHAFT, CHECK THAT THE THREADED
SHAFT ENDS DO NOT INTERFERE WITH THE MAIN BUSH-
INGS. FAILURE TO OBSERVE THIS PRECAUTION CAN
DAMAGE THE MAIN BUSHINGS.
CAUTION
KEEP THE CRANKSHAFT IN ONE OF THE TWO HALVES
OF THE CRANKCASE WHEN SEPARATING IT. IF YOU FAIL
TO DO THIS, THE CRANKSHAFT MIGHT ACCIDENTALLY
FALL.
- Remove the crankcase halves gasket and be
careful with the two alignment dowels.
Engine Beverly 300 i.e.
ENG - 152
