Specification Desc./Quantity
4 Ignition switch contacts
5 Fuse No. 6 5A
6 Injection load solenoid
7 Fuel pump
8 HV coil
9 Fuel injector
10 Injection ECU
11 Electric fan solenoid

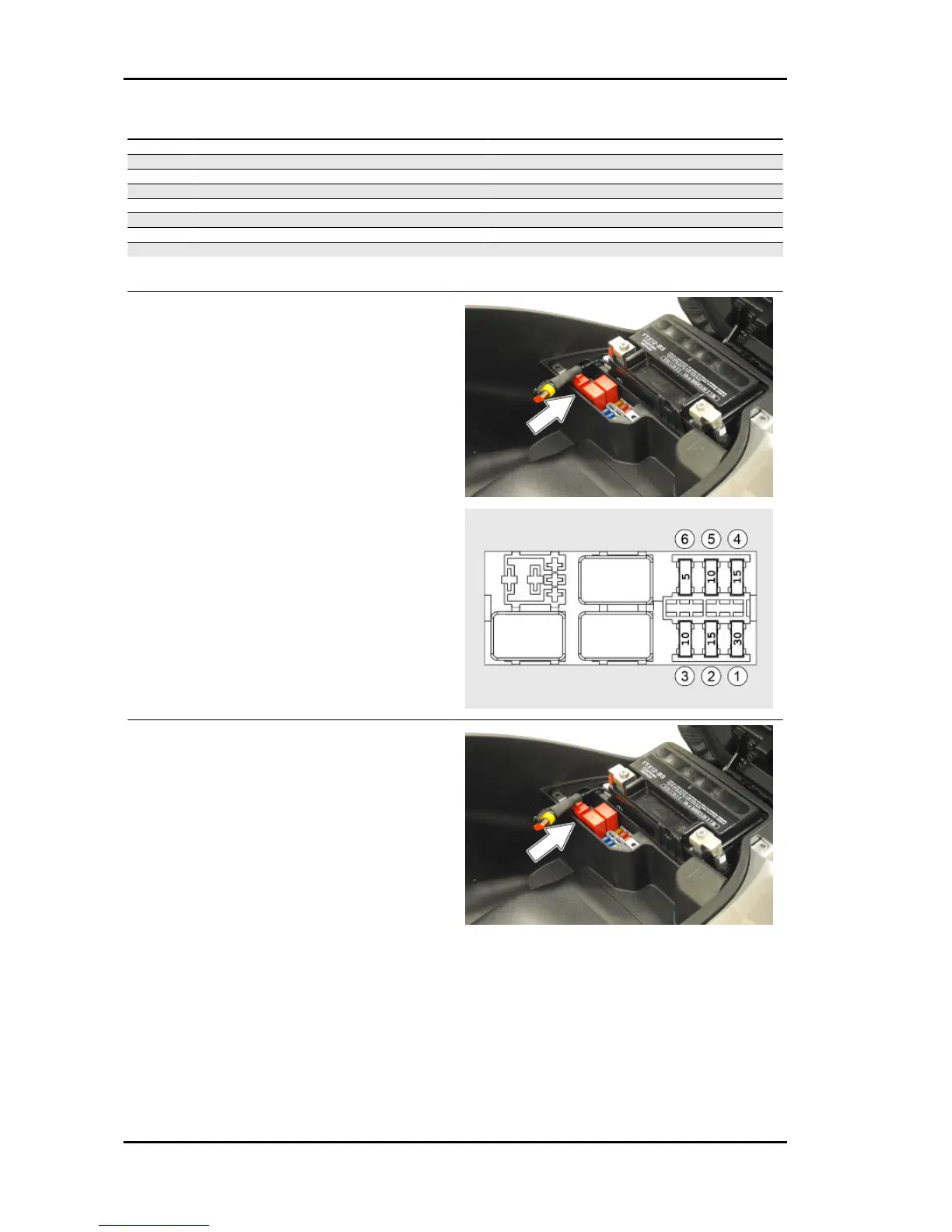

Check the resistance at the injector ends: 14.5 ± 5% Ohm
Check function of fuses No. 3 and 6 for the ECU
and injection load solenoid.
Check the efficiency of the injection load solenoid.
Check the resistance of the energising coil be-
tween pins 86 and 85: 40 to 80 Ohm
Apply a voltage of 12V to pins 86 and 85; make
sure that there is continuity between pins 30 and
87 of the relay.
Injection Beverly 300 i.e.
INJEC - 186
