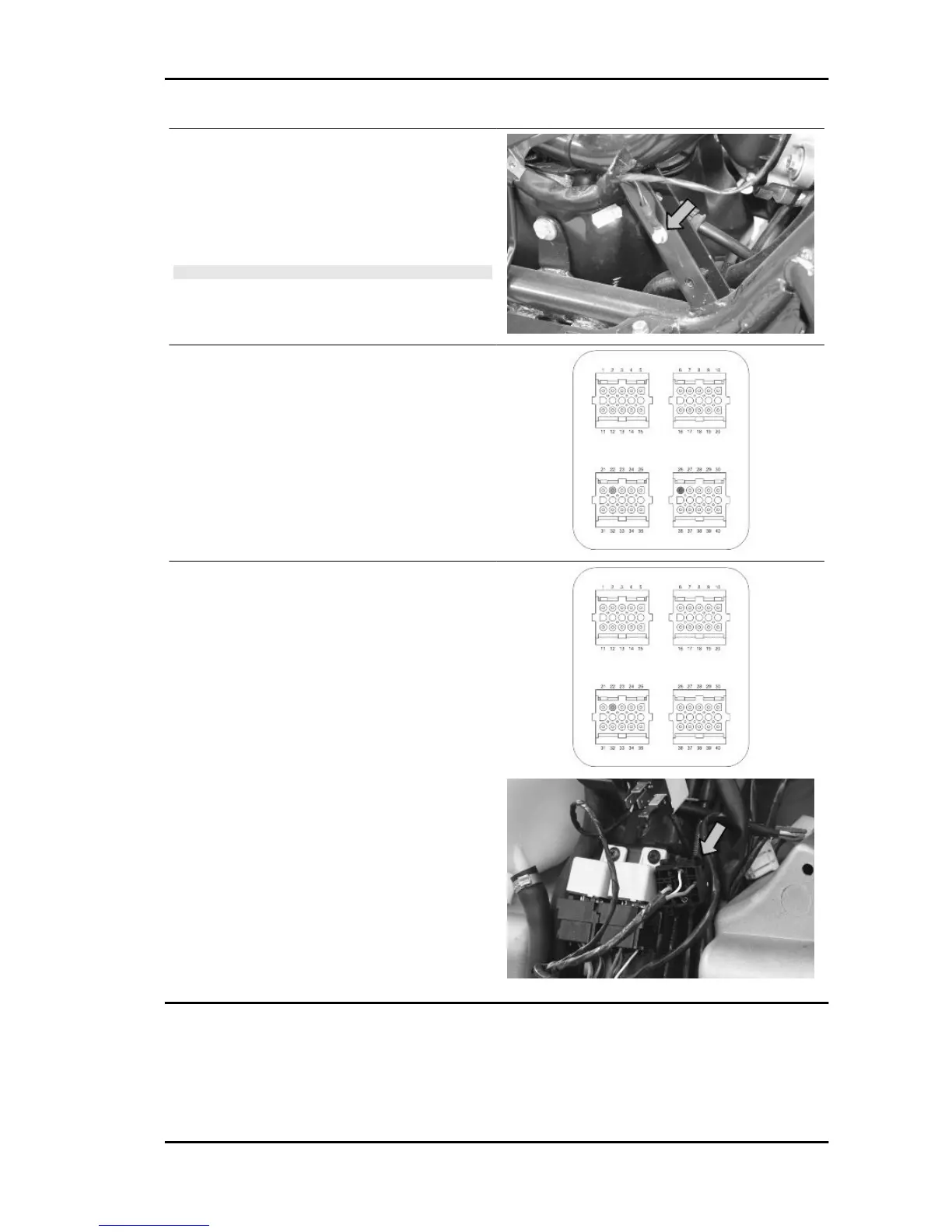

Check for continuous voltage between the grey/
black cable of the solenoid base and ground. If no
voltage is measured, check continuity of the Grey/
Black cable between the fuse box (No. 3, 5A) and
the solenoid base.
N.B.
CONTINUITY TESTS MUST BE CARRIED OUT WITH THE
COMPONENTS DISCONNECTED. (RELAYS, CONTROL
UNIT, FUSES ETC.).
Check there is voltage between pins 22 and 26 of
the interface wiring for around two seconds when
switching to «ON».
Check the resistance of the primary coil between
pin 22 of the interface wiring and the green black
cable of the injection load solenoid base with the
control unit disconnected and the solenoid discon-
nected.
Resistance of the primary = 0.5 ± 8% Ohm
Beverly 300 i.e. Injection
INJEC - 195
