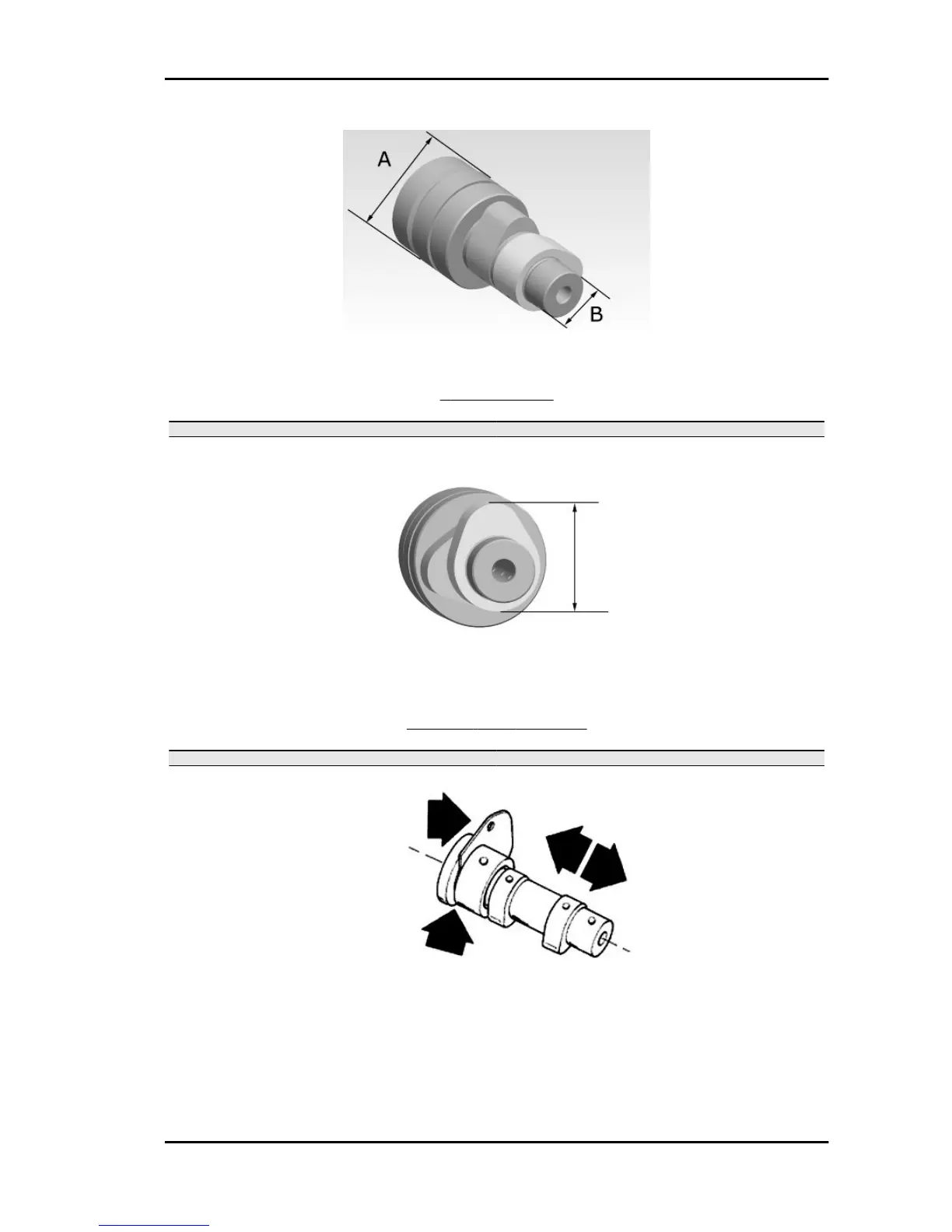

- Using a gauge, measure the height of the cams.
STANDARD HEIGHT
Specification Desc./Quantity
Camshaft check: Standard height Intake: 30.285 mm
Camshaft check: Standard height Exhaust: 29.209 mm
Check the axial clearance of the camshaft
CAMSHAFT AXIAL CLEARANCE
Specification
Desc./Quantity
Camshaft check: Standard axial clearance: 0.11 - 0.41 mm
Camshaft check: Maximum admissible axial clearance 0.42 mm
- Measure the outside diameter of the rocking lever pins
- Check the rocking lever pins do not show signs of wear or scoring.
- Measure the internal diameter of each rocker.
Check there are no signs of wear on the slider from contact with the cam and on the jointed adjustment
plate.
