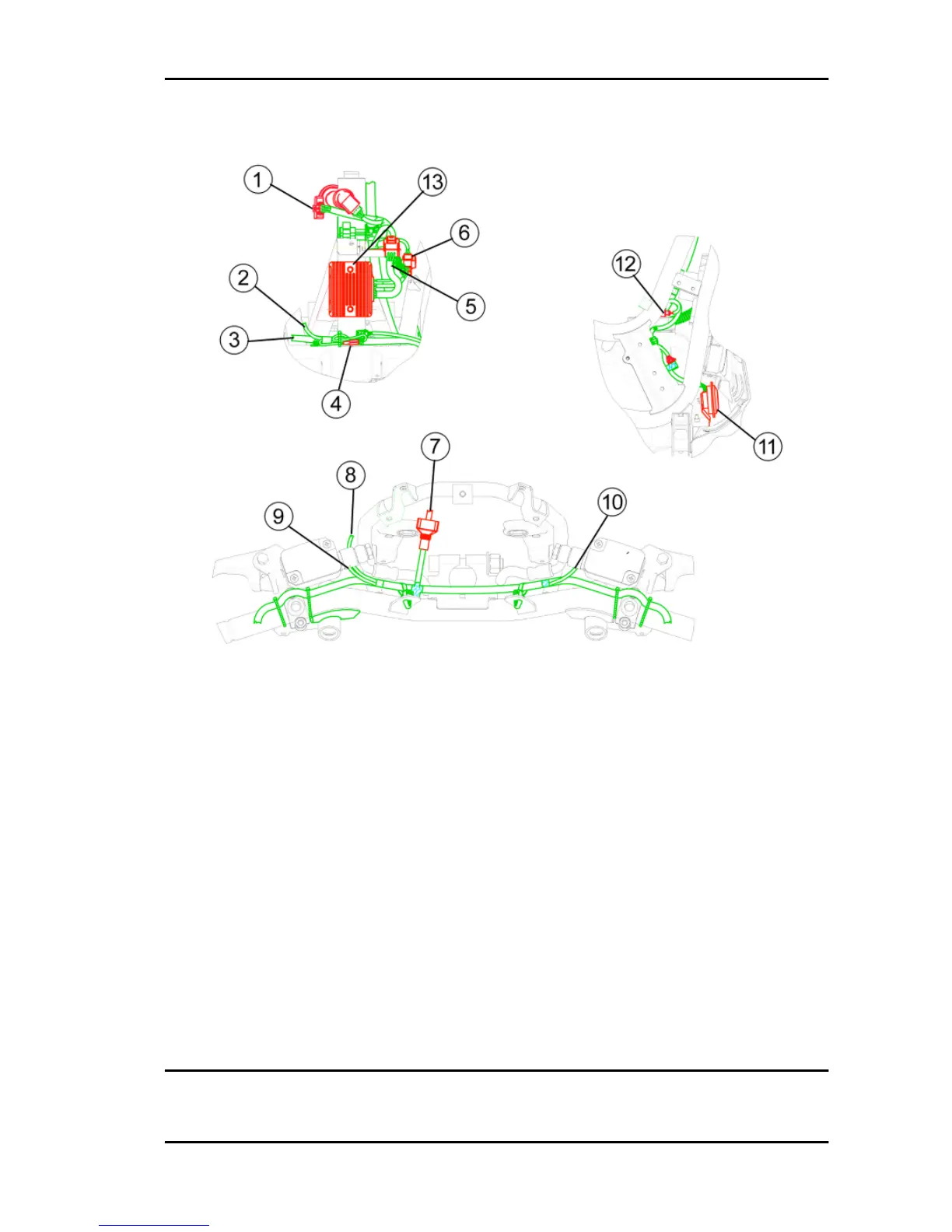

1. Immobilizer aerial
2. Low voltage power socket accessories in the front top box
3. To the front right turn indicator and daylight running lights
4. External air temperature sensor
5. Boost cable connection (only in version 125)
6. Flywheel - regulator connection
7. To instrument panel
8. To headlight
9. To the left stop button
10.to the right stop button
11.Horn
12.Fuel pump connection
13.Voltage regulator
Beverly 300 i.e. Electrical system
ELE SYS - 63
