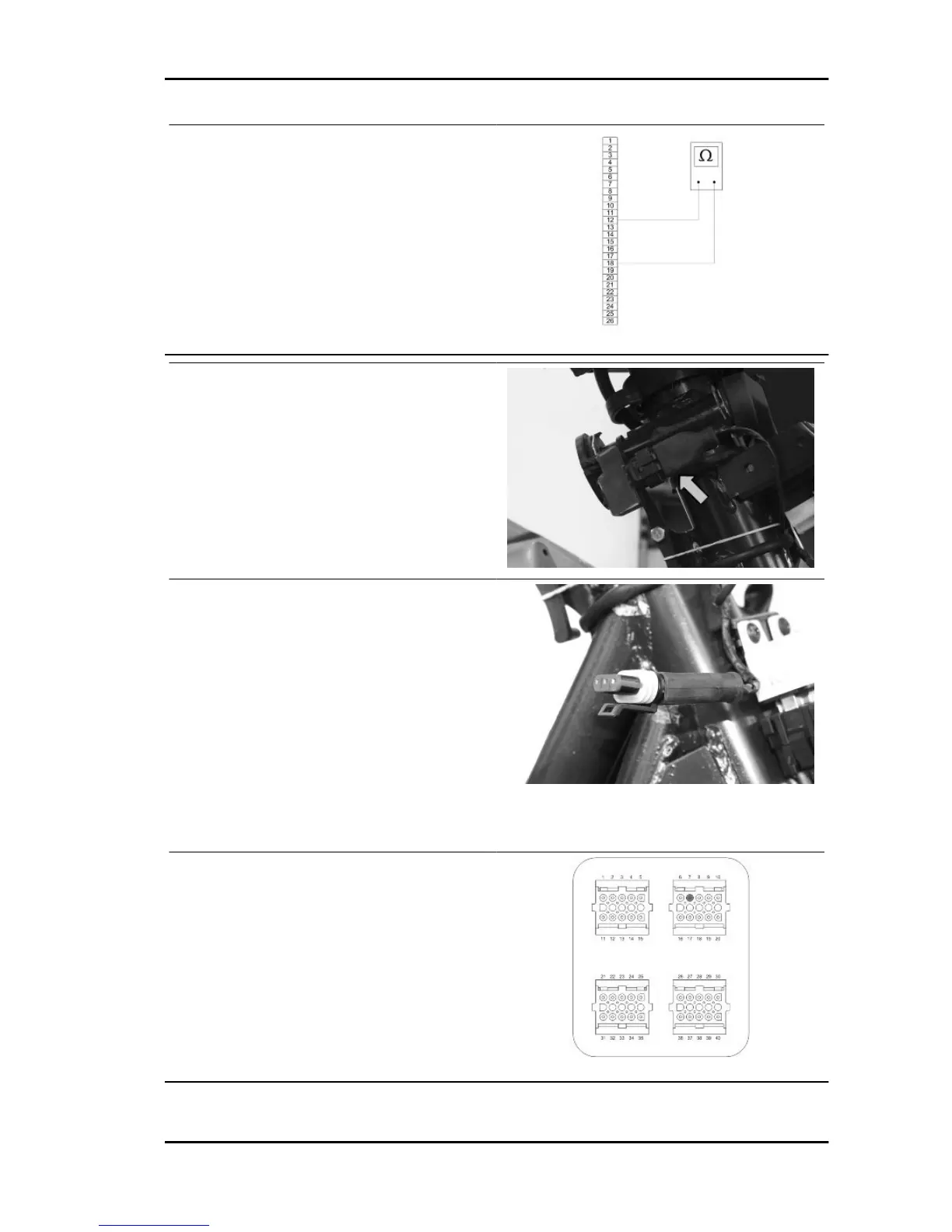

- There is continuity between terminals 12-18 and
the emergency cut-off switch is set to «RUN» and
the side stand is folded up. If there is no continuity,
check the contacts of the latter.
After removing the leg shield back plate, remove
the electrical connection from the aerial as shown
in the picture.
Remove the protective base from the connector.
With the ignition key switch at «ON» check if there is battery voltage between the Red-White and Black
cables
With MIU connector disconnected, check the con-
tinuity between the Orange-White cable and pin 7
of the interface wiring.
Specific tooling
020481Y Control unit interface wiring
020331Y Digital multimeter
Beverly 300 i.e. Electrical system
ELE SYS - 77
