RL78/G1H CHAPTER 6 CLOCK GENERATOR
R01UH0575EJ0120 Rev. 1.20 Page 120 of 920
Dec 22, 2016

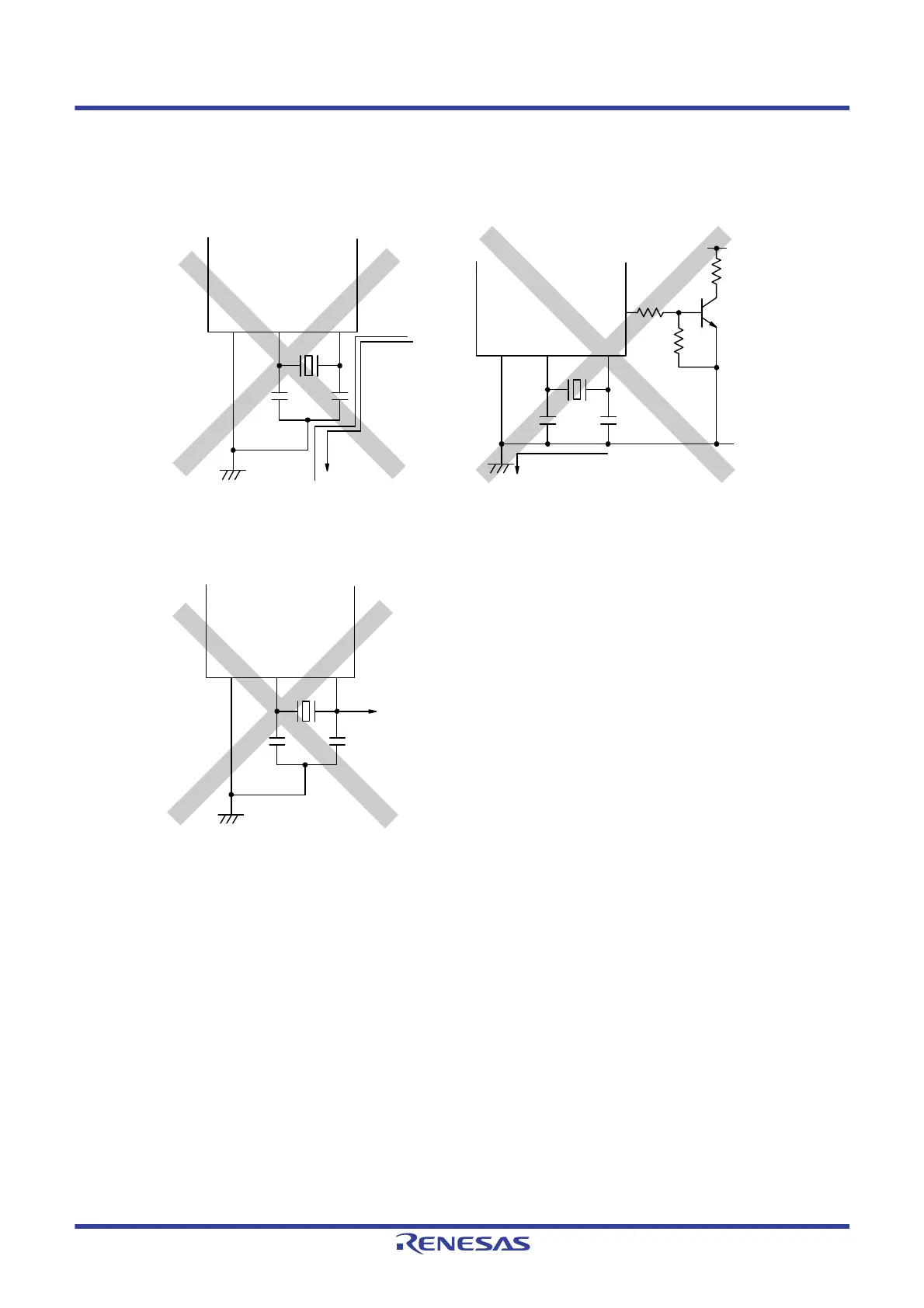

Figure 6 - 17 Examples of Incorrect Resonator Connection (2/2)
Caution When X2 and XT1 are wired in parallel, the crosstalk noise of X2 may increase with XT1, resulting in
malfunctioning.
Remark When using the subsystem clock, replace X1 and X2 with XT1 and XT2, respectively. Also, insert resistors in series on
the XT2 side.
(e) Wiring near high alternating current
(f) Current flowing through ground line of oscillator
(potential at points A, B, and C fluctuates)
VSS
X1 X2
High current
VSS
X1 X2
AB C
Pmn
V
DD
High current
To Next Page
