RL78/G1H CHAPTER 16 DATA TRANSFER CONTROLLER (DTC)
R01UH0575EJ0120 Rev. 1.20 Page 531 of 920
Dec 22, 2016
16.4.2 Normal Mode
One to 256 bytes of data are transferred by one activation during 8-bit transfer and 2 to 512 bytes during 16-bit
transfer. The number of transfers can be 1 to 256 times. When the data transfer causing the DTCCTj (j = 0 to 23)
register value to change to 0 is performed, the DTC generates an interrupt request corresponding to the
activation source to the interrupt controller during DTC operation, and sets the corresponding bit among bits
DTCENi0 to DTCENi7 (i = 0 to 4) in the DTCENi register to 0 (activation disabled).
Table 16 - 7 shows Register Functions in Normal Mode. Figure 16 - 15 shows Data Transfers in Normal Mode.
Note Initialize this register to 00H when parity error resets are enabled (RPERDIS = 0) using the RAM parity error detection
function.
Remark j = 0 to 23

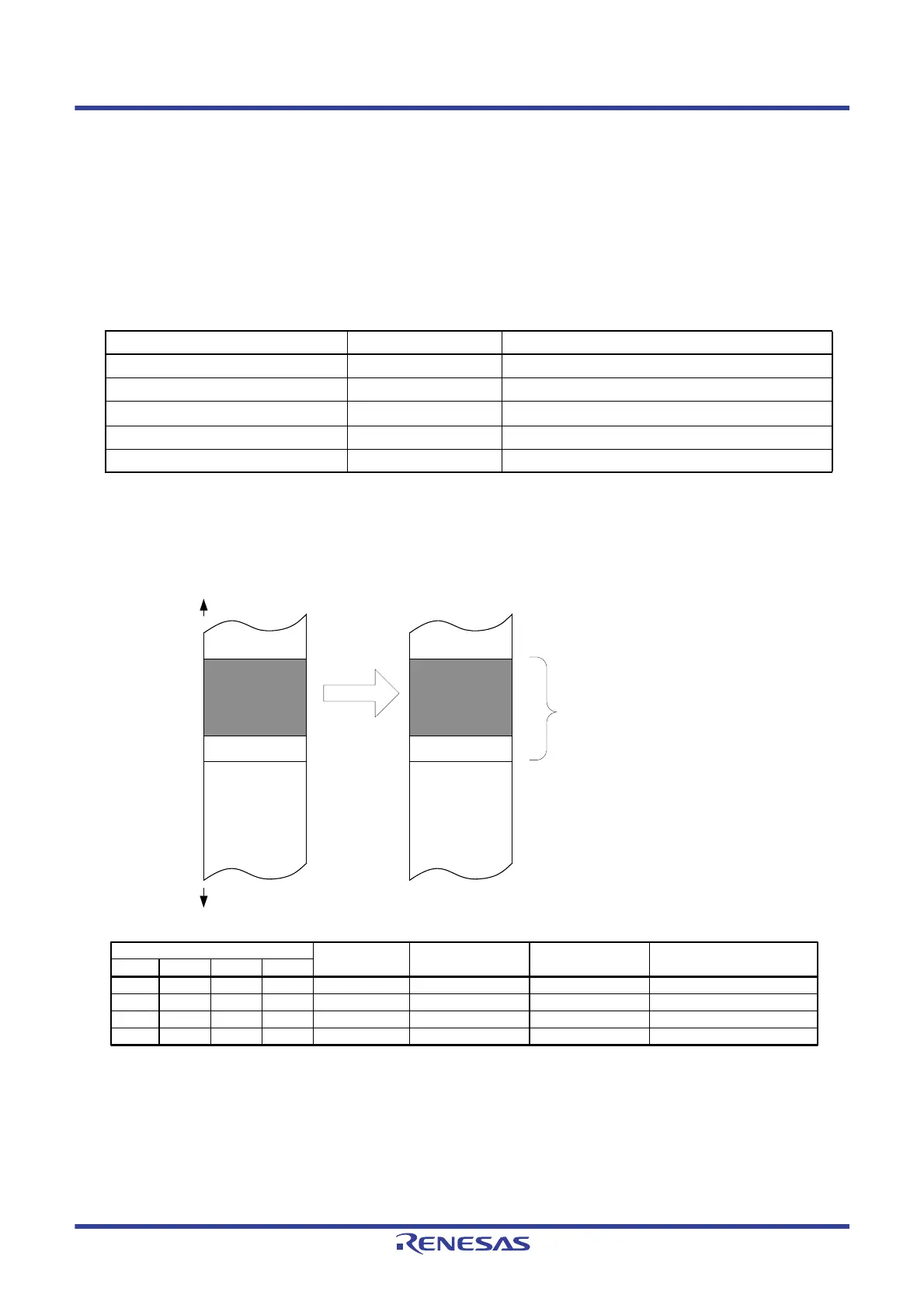

Figure 16 - 15 Data Transfers in Normal Mode
Table 16 - 7 Register Functions in Normal Mode
Register Name Symbol Function
DTC block size register j DTBLSj Size of the data block to be transferred by one activation
DTC transfer count register j DTCCTj Number of data transfers
DTC transfer count reload register j
DTRLDj
Not used
Note
DTC source address register j DTSARj Data transfer source address
DTC destination address register j DTDARj Data transfer destination address
FFFFFH
SRC
F0000H
Transfer
DST
Size of the data block to be transferred
by one activation
(N bytes)
DTBLSj register = N
DTSARj register = SRC
DTDARj register = DST
j = 0 to 23
DTCCR Register Setting
Source Address
Control
Destination Address
Control
Source Address
after Transfer
Destination Address
after Transfer
DAMOD
SAMOD RPTSEL MODE
0 0 X 0 Fixed Fixed SRC DST
0 1 X 0 Incremented Fixed SRC + N DST
1 0 X 0 Fixed Incremented SRC DST + N
1 1 X 0 Incremented Incremented SRC + N DST + N
X: 0 or 1
To Next Page
