RL78/G1H CHAPTER 7 TIMER ARRAY UNIT
R01UH0575EJ0120 Rev. 1.20 Page 175 of 920
Dec 22, 2016
7.5 Operation of Counter
7.5.1 Count clock (fTCLK)
The count clock (fTCLK) of the timer array unit can be selected between following by CCSmn bit of timer mode
register mn (TMRmn).
• Operation clock (f
MCK) specified by the CKSmn0 and CKSmn1 bits
• Valid edge of input signal input from the TImn pin
Because the timer array unit is designed to operate in synchronization with f
CLK, the timings of the count clock
(f
TCLK) are shown below.
(1) When operation clock (f
MCK) specified by the CKSmn0 and CKSmn1 bits is selected (CCSmn = 0)
The count clock (f
TCLK) is between fCLK to fCLK /2
15
by setting of timer clock select register m (TPSm). When
a divided f
CLK is selected, however, the clock selected in TPSmn register, but a signal which becomes high
level for one period of f
CLK from its rising edge. When a fCLK is selected, fixed to high level.
Counting of timer count register mn (TCRmn) delayed by one period of f
CLK from rising edge of the count
clock, because of synchronization with f
CLK. But, this is described as “counting at rising edge of the count
clock”, as a matter of convenience.

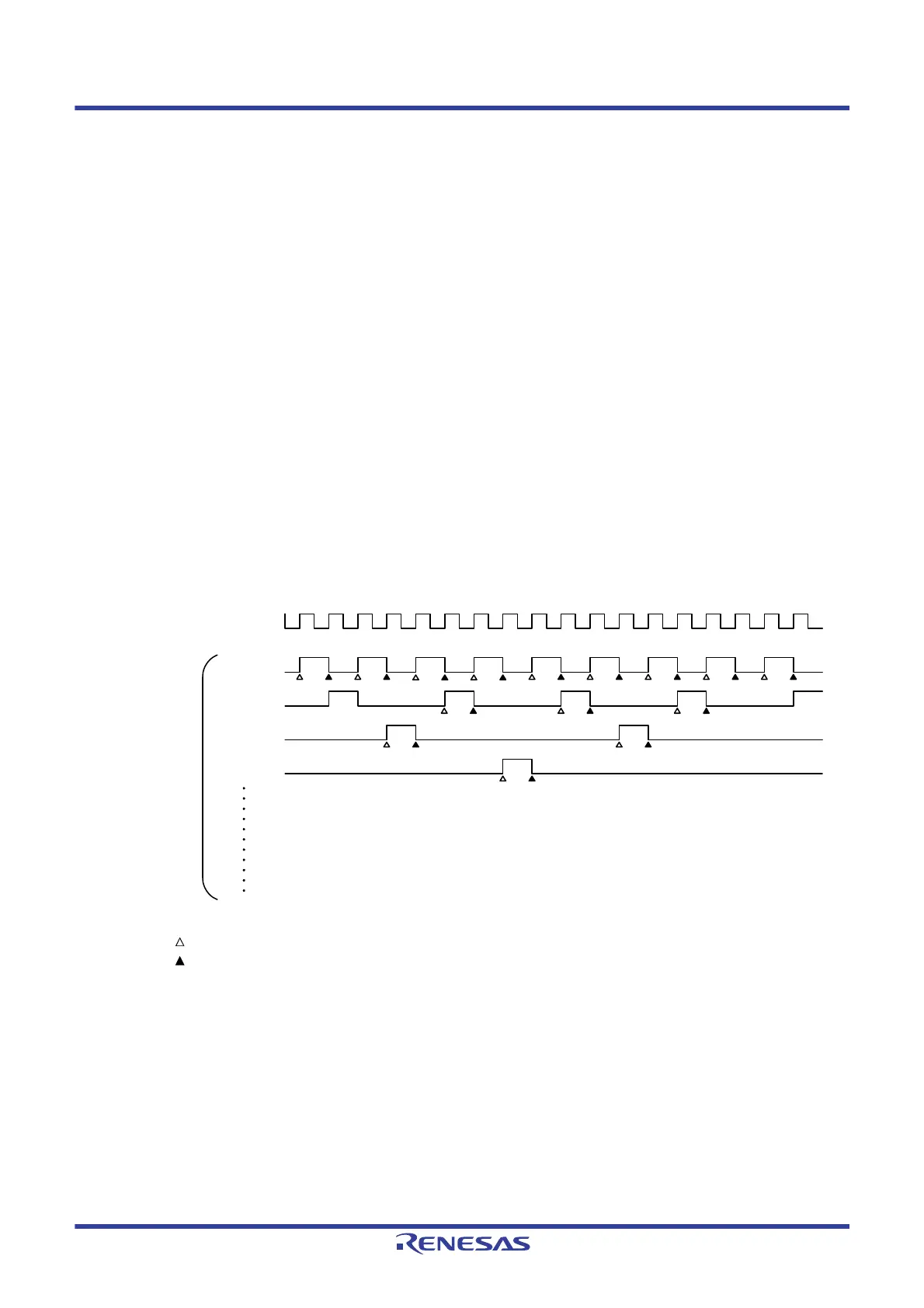

Figure 7 - 26 Timing of f
CLK and count clock (fTCLK) (When CCSmn = 0)
Remark 1. : Rising edge of the count clock
: Synchronization, increment/decrement of counter
Remark 2. fCLK: CPU/peripheral hardware clock
fCLK
fCLK/2
f
CLK/4
f
CLK/8
f
CLK/16
fTCLK
( = fMCK= CKmn)
