RL78/G1H CHAPTER 7 TIMER ARRAY UNIT

R01UH0575EJ0120 Rev. 1.20 Page 189 of 920

Dec 22, 2016

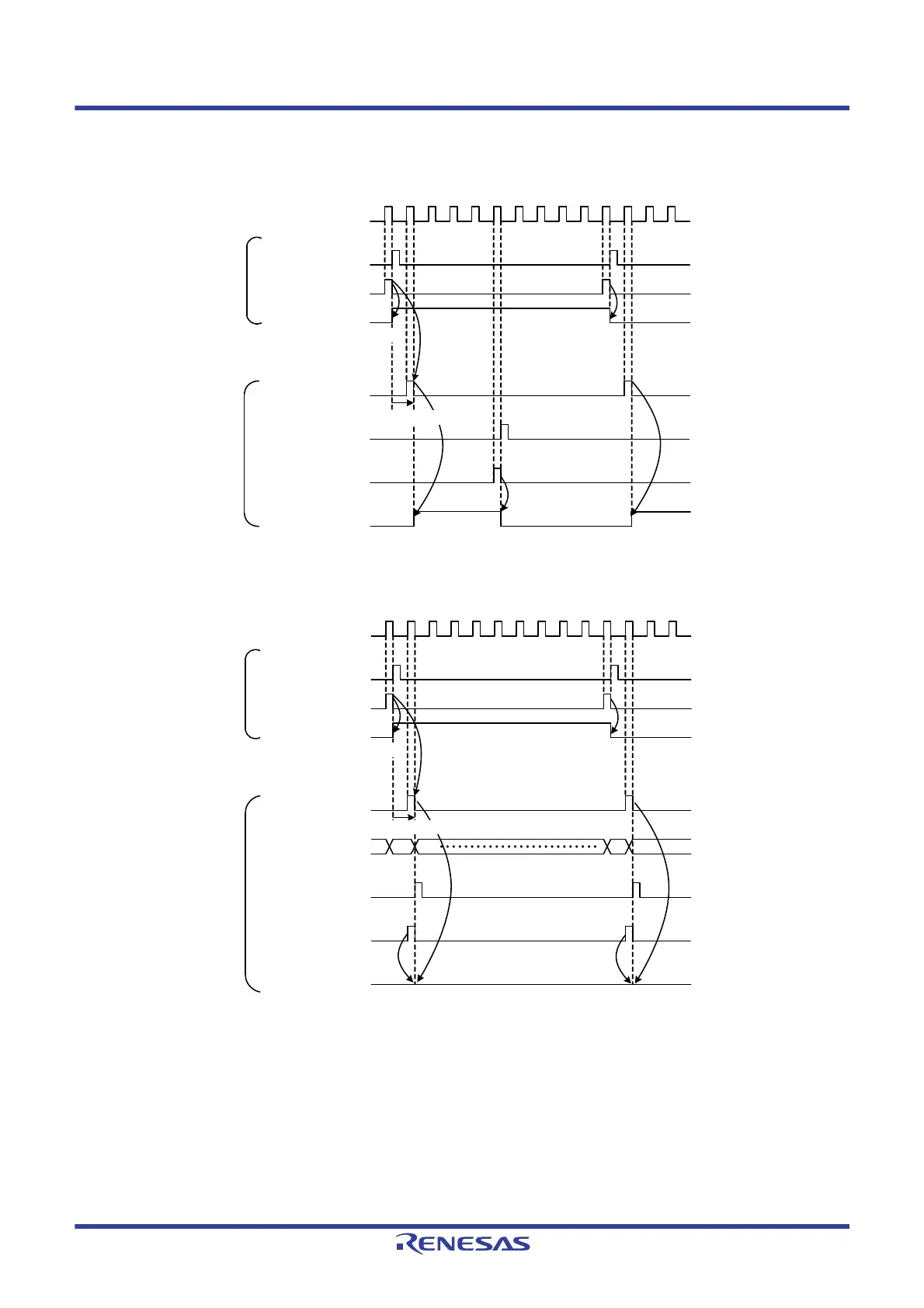

Figure 7 - 38 Set/Reset Timing Operating Statuses

(1) Basic operation timing

(2) Operation timing when 0% duty

Remark 1. Internal reset signal: TOmn pin reset/toggle signal

Internal set signal: TOmn pin set signal

Remark 2. m: Unit number (m = 0)

n: Channel number (n = 3 (n = 0, 2 for master channel))

p: Slave channel number (p = 3)

fTCLK

Internal reset

signal

Internal reset

signal

INTTMmp

Internal reset

signal

INTTMmn

TOmp pin/TOmp

TOmn pin/TOmn

Toggle Toggle

1 clock delay

Set SetReset

Master

channel

Slave

channel

fTCLK

Internal reset

signal

Internal reset

signal

TCRmp

INTTMmp

INTTMmn

Internal reset signal

TOmn pin/TOmn

Toggle Toggle

Set

Reset

Master

channel

Slave

channel

TOmp pin/TOmp

0000 0001

1 clock delay

Reset

Reset has priority. Reset has priority.
