RL78/G1H CHAPTER 14 SERIAL ARRAY UNIT
R01UH0575EJ0120 Rev. 1.20 Page 390 of 920
Dec 22, 2016
(2) Operation procedure

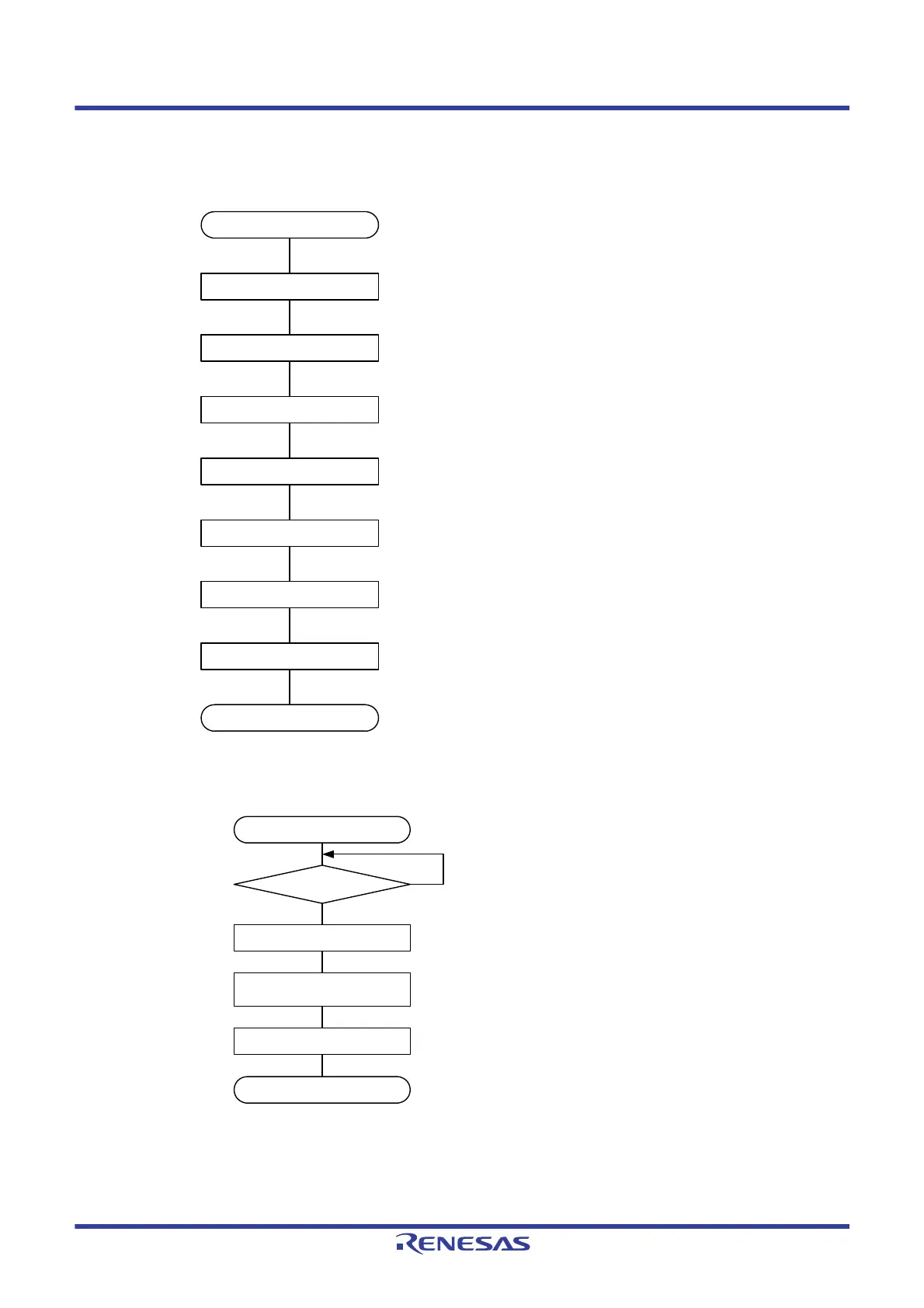

Figure 14 - 57 Initial Setting Procedure for Slave Reception
Figure 14 - 58 Procedure for Stopping Slave Reception
Release the serial array unit from the reset status
and start clock supply.
Setting the PER0 register
Starting initial settings
Setting the SPSm register
Setting the SMRmn register
Setting the SCRmn register
Setting the SDRmn register
Setting port
Writing to the SSm register
Completing initial setting
Set the operation clock.
Set an operation mode, etc.
Set a communication format.
Set bits 15 to 9 to 0000000B for baud rate setting.
Enable data input and clock input of the target
channel by setting a port register and a port mode
register.
Set the SSmn bit of the target channel to 1
(SEmn bit = 1: to enable operation). Wait for a
clock from the master.
Write 1 to the STmn bit of the target channel.
(SEmn = 0: to operation stop status)
Writing the STm register
Starting setting to stop
Changing setting of the
SOEm register
Stop setting is completed
Set the SOEmn bit to 0 and stop the output of the
target channel.
After the stop setting is completed, go to the next
processing.
Setting the PER0 register
Reset the serial array unit by stopping the clock
supply to it.
(Selective)
(Essential)
(Essential)
TSFmn = 0?
No
If there is any data being transferred, wait for their
completion.
(If there is an urgent must stop, do not wait.)
Yes
(Selective)
To Next Page
