RL78/G1H CHAPTER 3 PIN FUNCTIONS

R01UH0575EJ0120 Rev. 1.20 Page 29 of 920

Dec 22, 2016

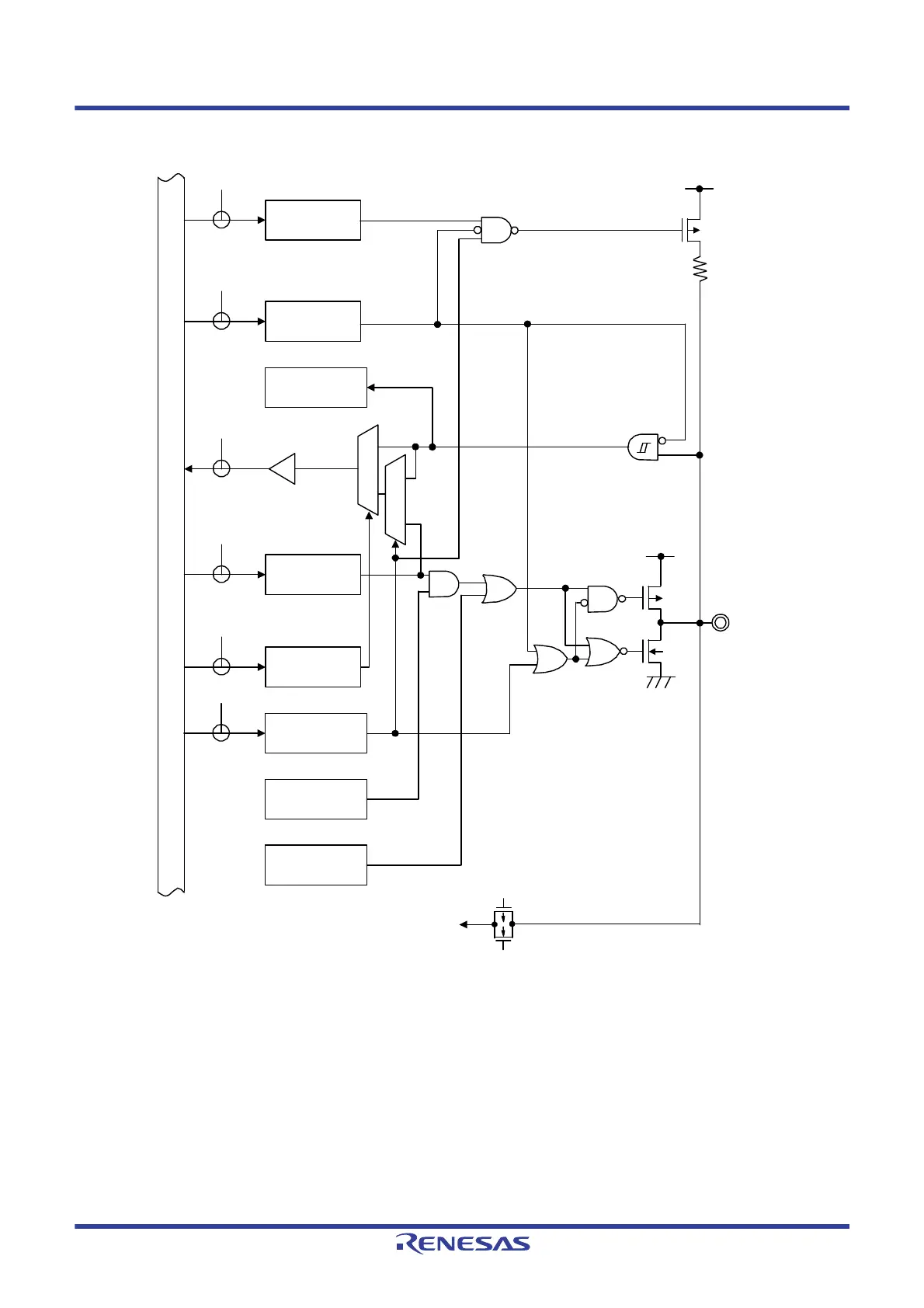

Figure 3 - 8 Pin Block Diagram of Pin Type 7-3-3

Remark 1. Refer to 3.1 Port Functions for alternate functions.

Remark 2. SAU: Serial array unit

Internal bus

PM register

(PMmn)

PU register

(PUmn)

PMC register

(PMCmn)

Alternate function

Output latch

(Pmn)

PMS register

Alternate function

(SAU)

VDD

P-ch

N-ch

Pmn

P-ch

VDD

WRPU

WRPMC

RDPORT

WRPORT

WRPMS

Schmitt2

P-ch

N-ch

A/D converter

Alternate function

(other than SAU)

WRPM
