BRIDGE UNIT (B482) 26 July 2002
1-40

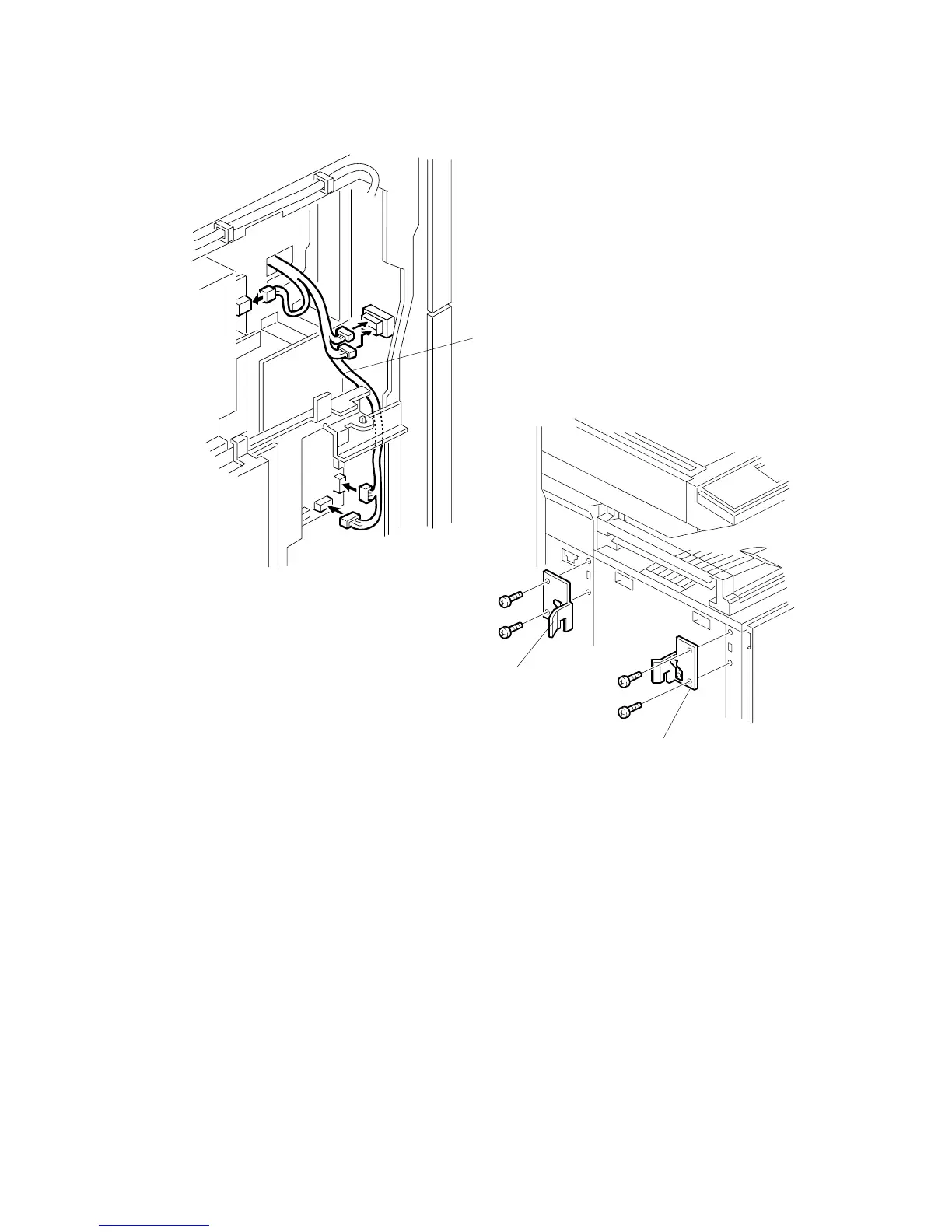

8. Connect the harnesses [A], as shown.
9. Reinstall the rear cover.
10. When the 1,000-sheet finisher (Machine code: B408) will be installed,
attach the front joint bracket [B] and rear joint bracket [C] (! x 2 each).
11. Install the optional finisher (refer to the finisher installation procedure).
B482I105.WMF
B482I106.WMF
[A]
[B]
[C]
