Inputs
Assign the pin No. to the input signals Print Start and Reprint.
Outputs
Assign the pin No. to output signals.

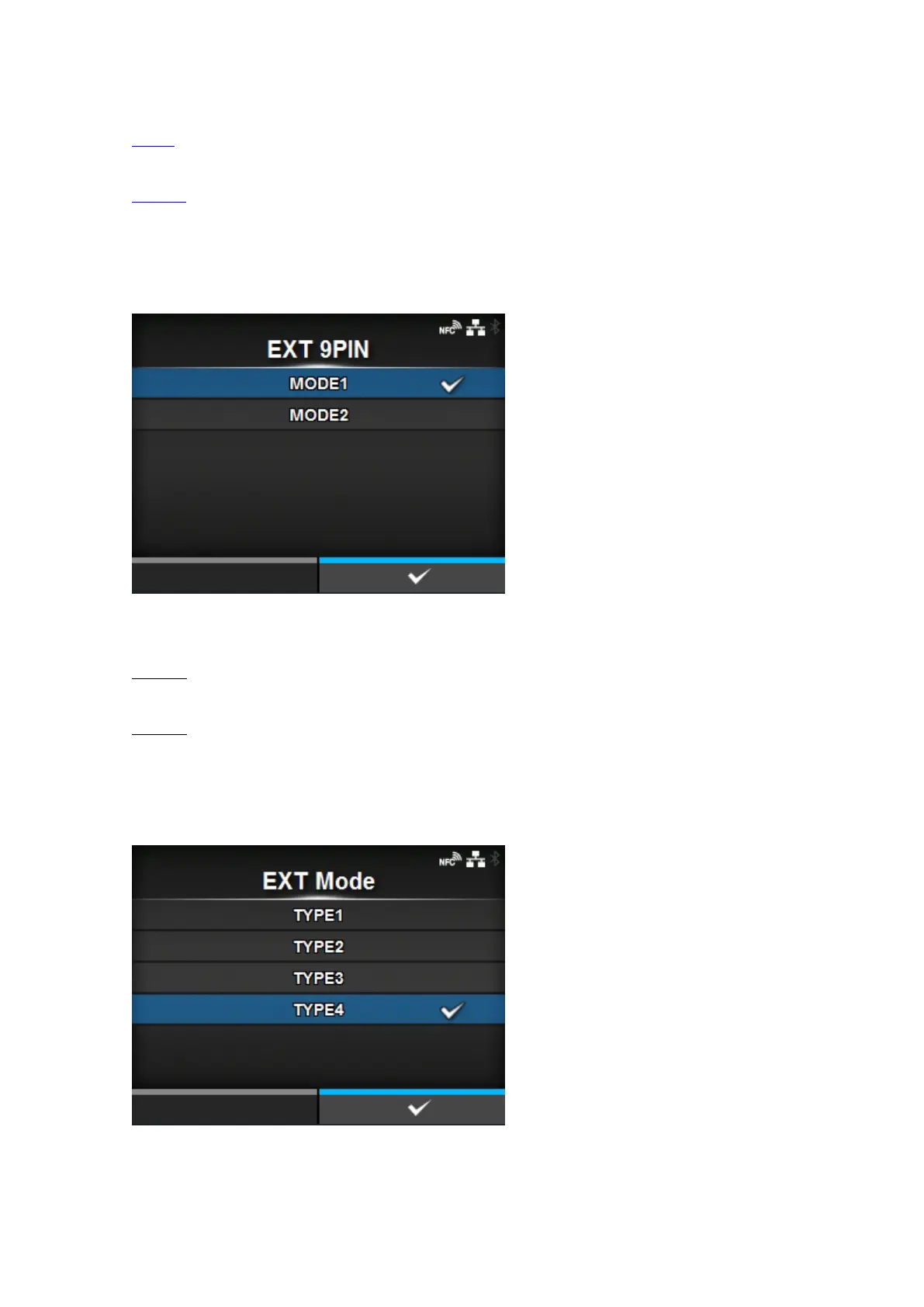

[EXT 9PIN]
Set the function of the EXT 9PIN output.
The options are as follows:
MODE1
The output signal becomes "Active" only when there is data in print buffer and product is ONLINE.
MODE2
The output signal becomes "Active" when product is ONLINE.
[EXT Mode]
Set the mode of the Print End signal.
The options are as follows:
To Next Page
