Sel 751A - Figure 6.1 Front-Panel Setting Entry Example

6.3
Date Code 20100129 Instruction Manual SEL-751A Relay
Settings
View/Change Settings With Front Panel

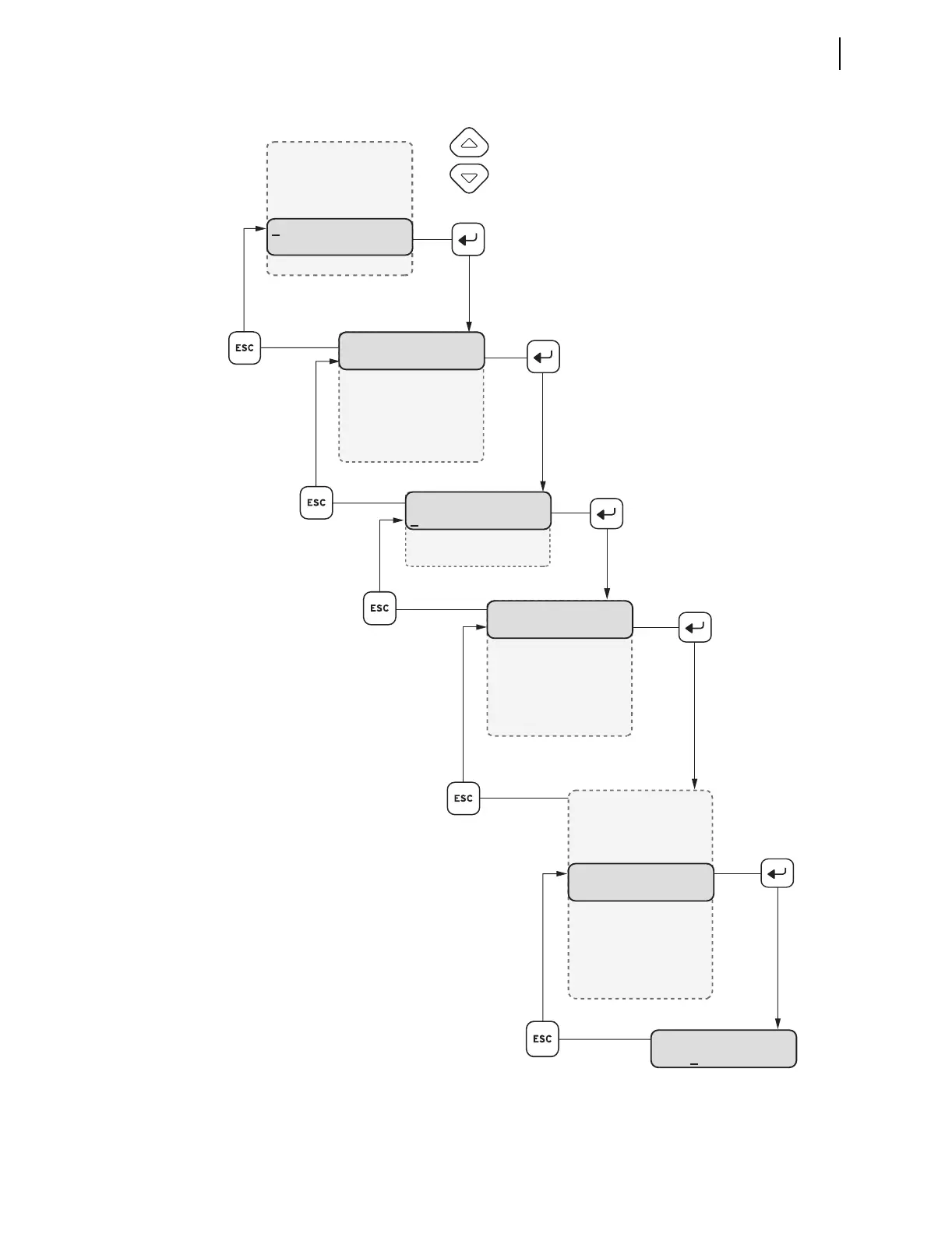

Figure 6.1 Front-Panel Setting Entry Example
Main Menu
Press to move
within the list.
Press to
return to the
previous list.
Press to select an
underlined menu item.
PTR Setting
PHASE PT RATIO
PTR=00120.00
Config Menu
CTR
100
CTRN
100
PTR
120.00
•
•
•
SINGLEV
N
GROUP
1
2
3
Set/Show Menu
Global
Group
Port
Active Group
Date
Time
Password
1 Menu
ID Settings
Config Settings
Max Ph Overcurr
•
Demand Mtr Set
Freq Settings
Trip/Close Logic
Meter
Events
Targets
Control
Set/Show
Status
Breaker Monitor
