Terminal Window
Select Communications > Terminal on the ACSELERATOR QuickSet main
menu bar to open the terminal window (shown in Figure 3.4).

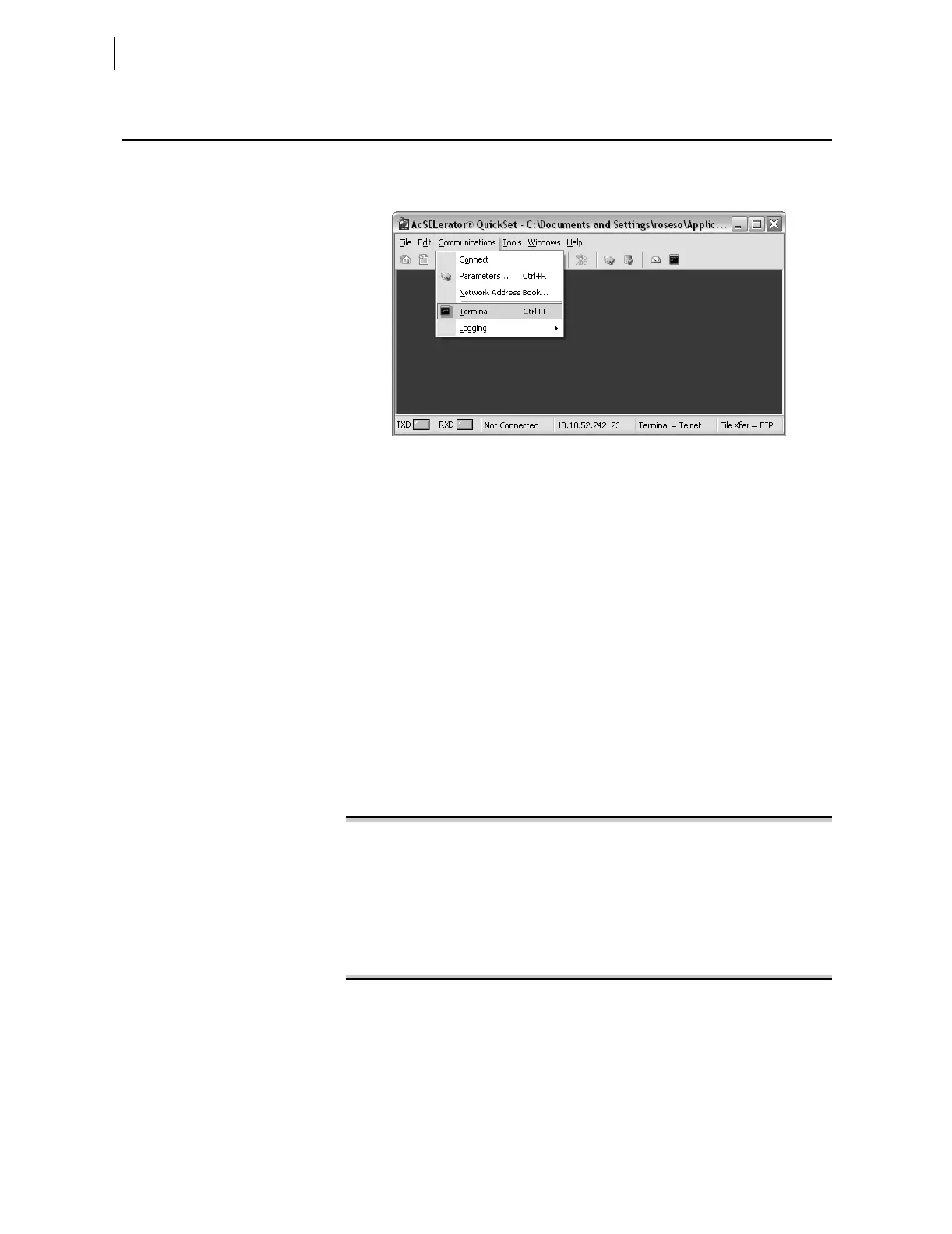

Figure 3.4 Tools Menu
The terminal window is an ASCII interface with the relay. This is a basic
terminal emulation. Many third-party terminal emulation programs are
available with file transfer encoding schemes. Open the terminal window by
either clicking Communications > Terminal or by pressing <Ctrl+T>.
Verify proper communications with the
relay by opening a terminal window,
pressing <Enter> a few times, and verifying that a prompt is received. If a
prompt is not received, verify proper setup.
Terminal Logging
To create a file that contains all terminal communications with the relay, select
Terminal Logging in the Communications > Logging menu, and specify a
file at the prompt.
ACSELERATOR QuickSet records communications events
and errors in this file. Click Communications > Logging > Connection Log
to view the log. Clear the log by selecting Communications >
Logging > Clear Connection Log.
Drivers and Part
Number
After clicking Communications > Terminal, access the relay at Access
Level 1. Issue the ID command to receive an identification report, as shown in
Figure 3.5.
=ID <Enter>
"FID=SEL-751A-R100-V0-Z001001-D20070410","08EE"
"BFID=BOOTLDR-R303-V0-Z000000-D20060612","0949"
"CID=9B42","025E"
"DEVID=SEL-751A","0408"
"DEVCODE=69","0316"
"PARTNO=751A01B6X3X7183021X","06D9"
"CONFIG=11251201","03F0"
"iedName =TEMPLATE","05DC"
"type =SEL_751A","04B0"
"configVersion =ICD-751A-R100-V0-Z001001-D20070326","0D75"
=
Figure 3.5 Device Response to the ID Command
Locate and record the Z number (Z001001) in the FID string. The first portion
of the Z number (Z001…) determines the
ACSELERATOR QuickSet relay
settings driver version when you are creating or editing
relay settings files. The
use of the Device Editor driver version will be discussed in more detail later in
this section—see Settings Editor (Editor Mode) on page 3.9. Compare the part
number (
PARTNO=751A0XXXXXXXXXXXXXX) with the Model Option Table (MOT)
to ensure the correct
relay configuration.
