Sel 751A - Figure 2.23 SEL-751 A Provides Overcurrent Protection for a Transformer Bank with a Tertiary Winding (Wye-Connected Pts)

To Next Page

To Previous Page

2.27

Date Code 20100129 Instruction Manual SEL-751A Relay

Installation

AC/DC Control Connection Diagrams

Voltage option is needed for voltage elements and metering (e.g., voltage, KW, KVAR). INxxx and OUTxxx indicate user-

configurable optional digital inputs and outputs.

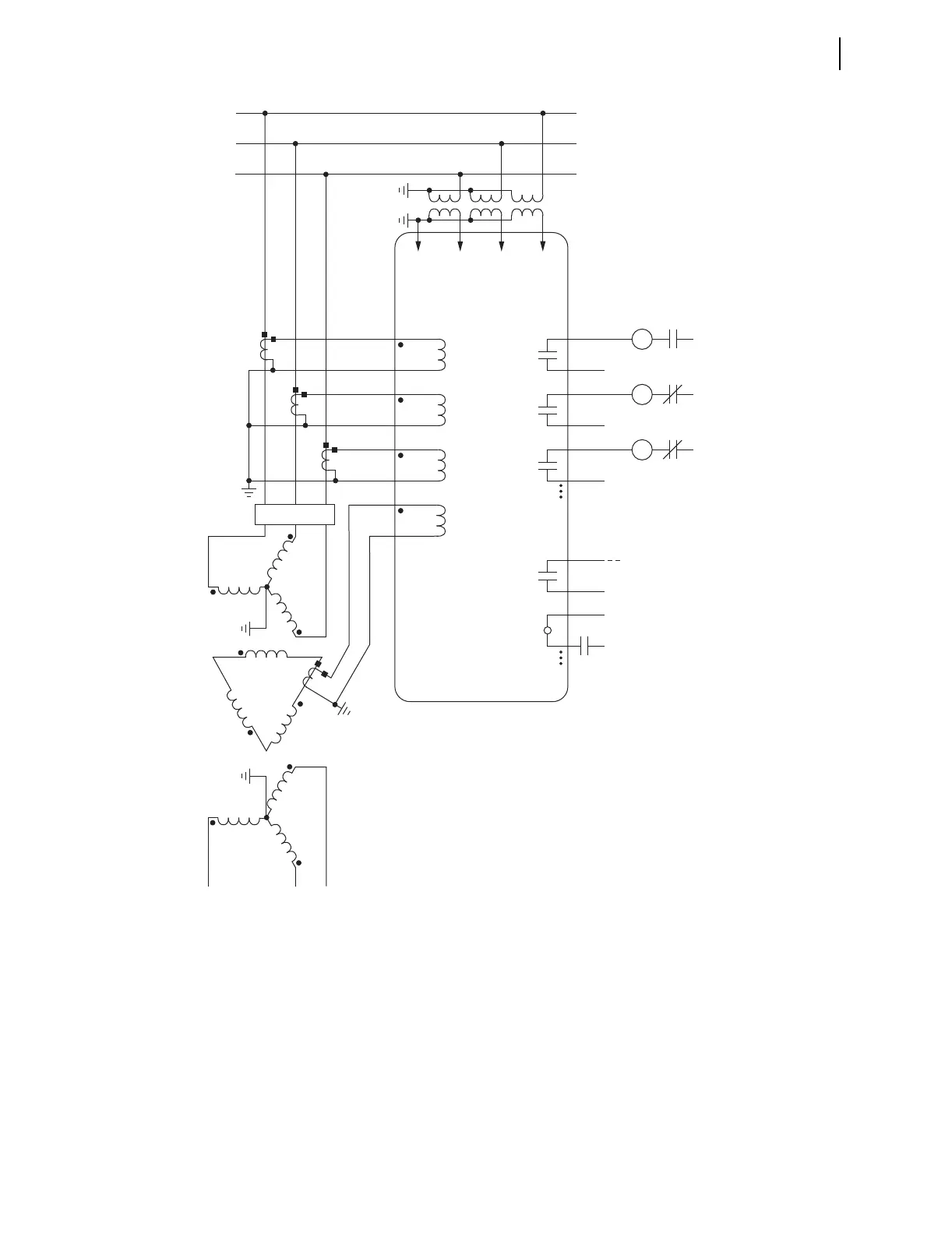

Figure 2.23 SEL-751A Provides Overcurrent Protection for a Transformer Bank With a

Tertiary Winding (Wye-Connected PTs)

Trip

Coil

52A

(+)

(—)

Trip

Circuit

SEL-751A RELAY

OUT103

Coil

52B

(+)

(—)

Circuit

IB OUT102

Lock

Out

86B

(+)

(—)

Breaker

Failure

Trip

Circuit

IC OUTxxx

(+)

52A

to Annunciator, RTU,

or SEL-2032/2030/2020

ALARM

OUT101

(+)

(—)

Breaker Status

INxxx

(Low-Side)

(Tertiary)

VCNVBVA
