2.21

Date Code 20100129 Instruction Manual SEL-751A Relay

Installation

AC/DC Control Connection Diagrams

Voltage Connections

With the voltage inputs option, the AC voltages may be directly connected,

wye-wye VT connected, open-delta VT connected, or a single-phase VT can

be used. Figure 2.17 and Figure 2.18 show the methods of connecting single-

phase and three-phase voltages.

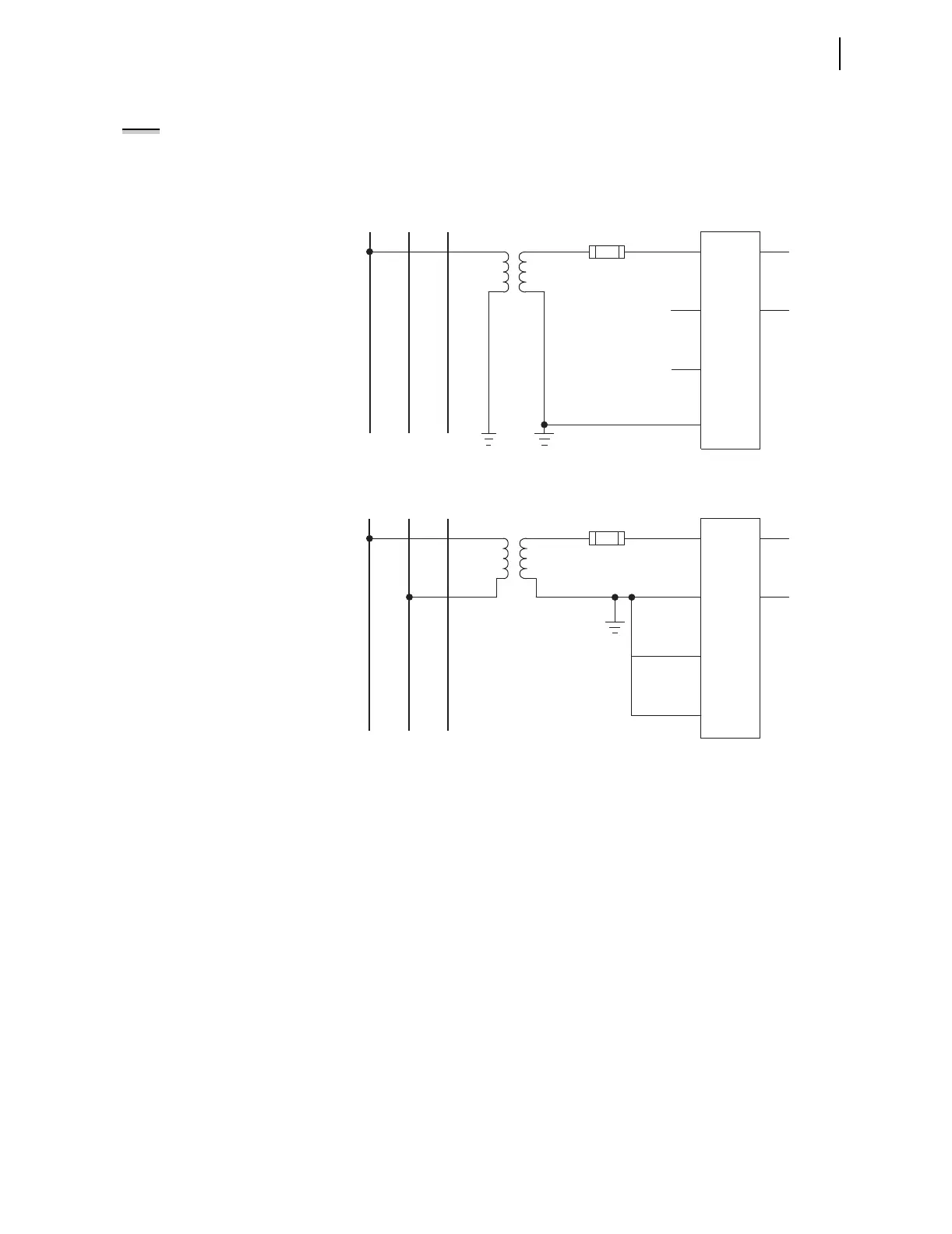

Figure 2.17 Single-Phase Voltage Connections

NOTE: Current limiting fuses in

direct-connected voltage applications

are recommended to limit short

circuit arc-flash incident energy.

Single Phase-Neutral VT Connection

Single Phase-Phase VT Connection

EO1

EO2

EO3

EO4

SEL-751A

EO5

EO6

EO1

EO2

EO3

EO4

SEL-751A

EO5

EO6
