Sel 751A - Figure 2.22 SEL-751 A Provides Overcurrent Protection for a Delta-Wye Transformer Bank (Wye-Connected Pts)

2.26
SEL-751A Relay Instruction Manual Date Code 20100129
Installation
AC/DC Control Connection Diagrams
Voltage option is needed for voltage elements and metering (e.g., voltage, KW, KVAR). INxxx and OUTxxx indicate user-
configurable optional digital inputs and outputs.
For sensitive earth fault (SEF) applications, the SEL-751A should be ordered with Channel IN rated at 2.5 mA nominal.
See current input specifications in the subsection Specifications, General on page 1.20. See neutral ground overcurrent
element pickup specifications in Section 4: Protection and Logic Functions.

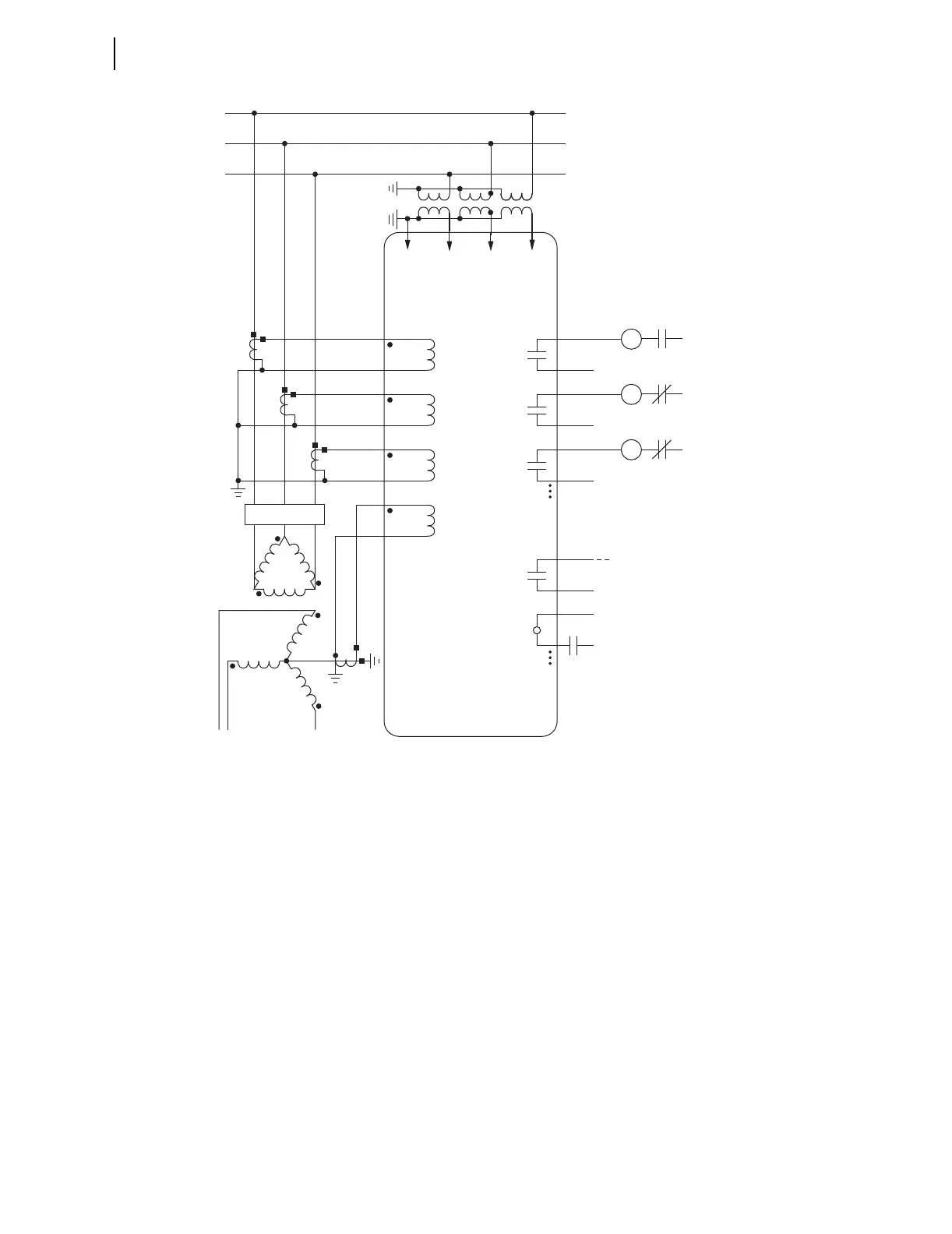

Figure 2.22 SEL-751A Provides Overcurrent Protection for a Delta-Wye Transformer Bank (Wye-Connected PTs)
TC
Trip
Coil
52A
(+)
(—)
Trip
Circuit
IA
C
B
A
SEL-751A RELAY
OUT103
CC
Close
Coil
52B
(+)
(—)
Close
Circuit
IB OUT102
86
Lock
Out
86B
(+)
(—)
Breaker
Failure
Trip
Circuit
IC OUTxxx
IN
52
(+)
52A
to Annunciator, RTU,
or SEL-2032/2030/2020
ALARM
OUT101
(+)
(—)
Breaker Status
INxxx
n
ba c
(Low-Side)
VCNVBVA
