3.7
Date Code 20100129 Instruction Manual SEL-751A Relay
PC Software
Settings
Settings Menu
ACSELERATOR QuickSet uses a database to store and manage SEL relay
settings. Each unique
relay has its own record of settings. Use the File menu to
Open an existing record, create and open a New record, or Read
relay settings
from a connected SEL-751A and then create and open a new record. Use
Tools menu to Convert and open an existing record. The record will be
opened in the Setting Editor as a Setting Form (template) or in Editor
Mode.
File > New
Selecting the New menu item creates new settings files. ACSELERATOR
QuickSet makes the new settings files from the driver that you specify in the
Settings Editor Selection dialog box.
ACSELERATOR QuickSet uses the Z
number in the FID string to create a particular version of settings. To get
started making SEL-751A settings with the Settings Editor in the Editor
Mode, select File > New from the main menu bar, and SEL-751A and 004
from the Settings Editor Selection window as shown in Figure 3.6.

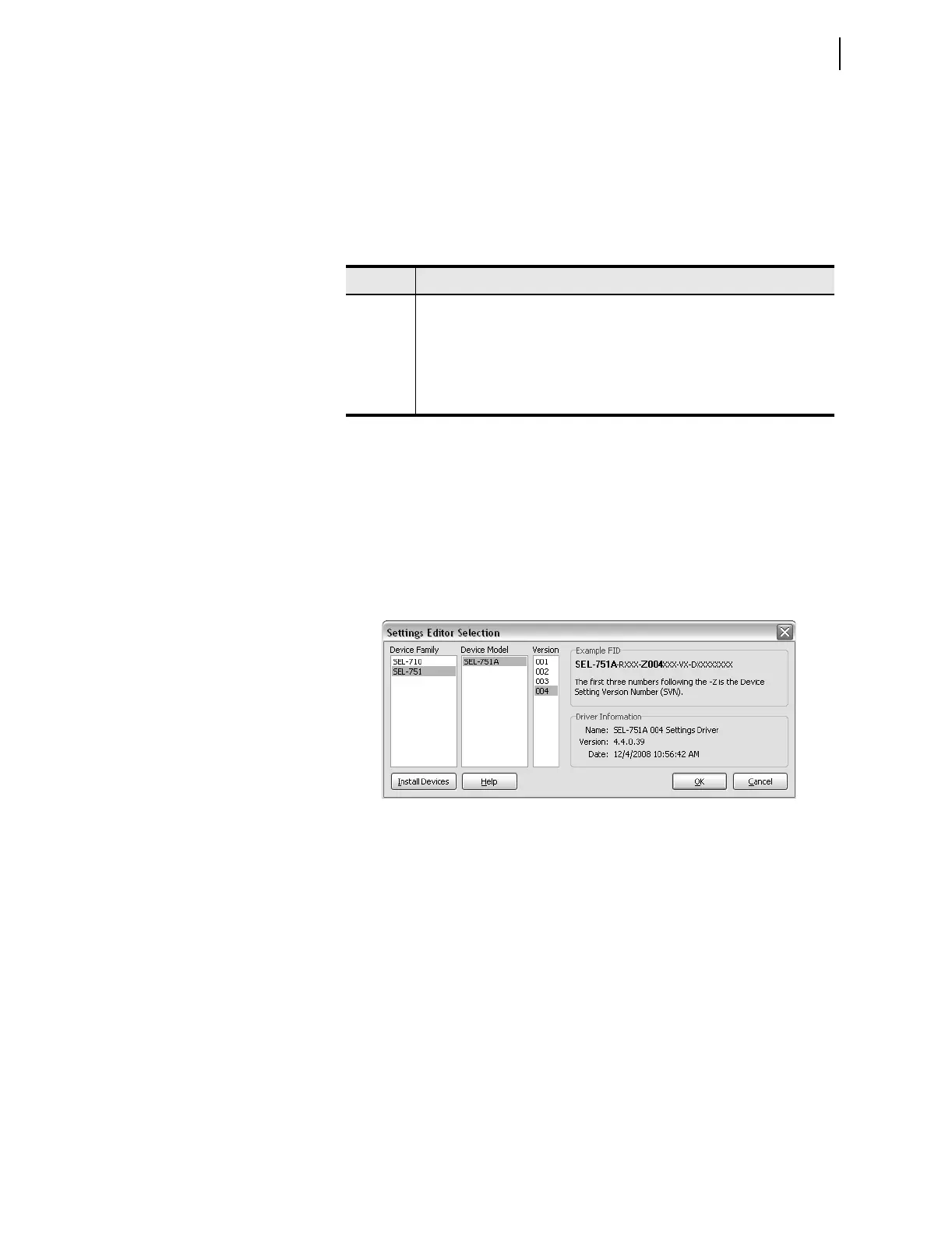

Figure 3.6 Selection of Drivers
After the relay model and settings driver selection, ACSELERATOR QuickSet
presents the Device Part Number dialog box. Use this dialog box to
configure the Relay Editor to produce settings for a relay with options
determined by the part number, as shown in Figure 3.7. Press OK when
finished.
Table 3.3 File/Tools Menus
Menus Description
<<, >> Use these navigation menu buttons to move from one category to the next
New Open a New record
Open Open an existing record
Read Read device settings and then create and open a new record
Convert Convert and open an existing record
