Sel 751A - Figure 2.31 Point-Sensor Directivity (Front to Back, above the Mounting Plane)

2.32
SEL-751A Relay Instruction Manual Date Code 20100129
Installation
Arc-Flash Protection: System Installation

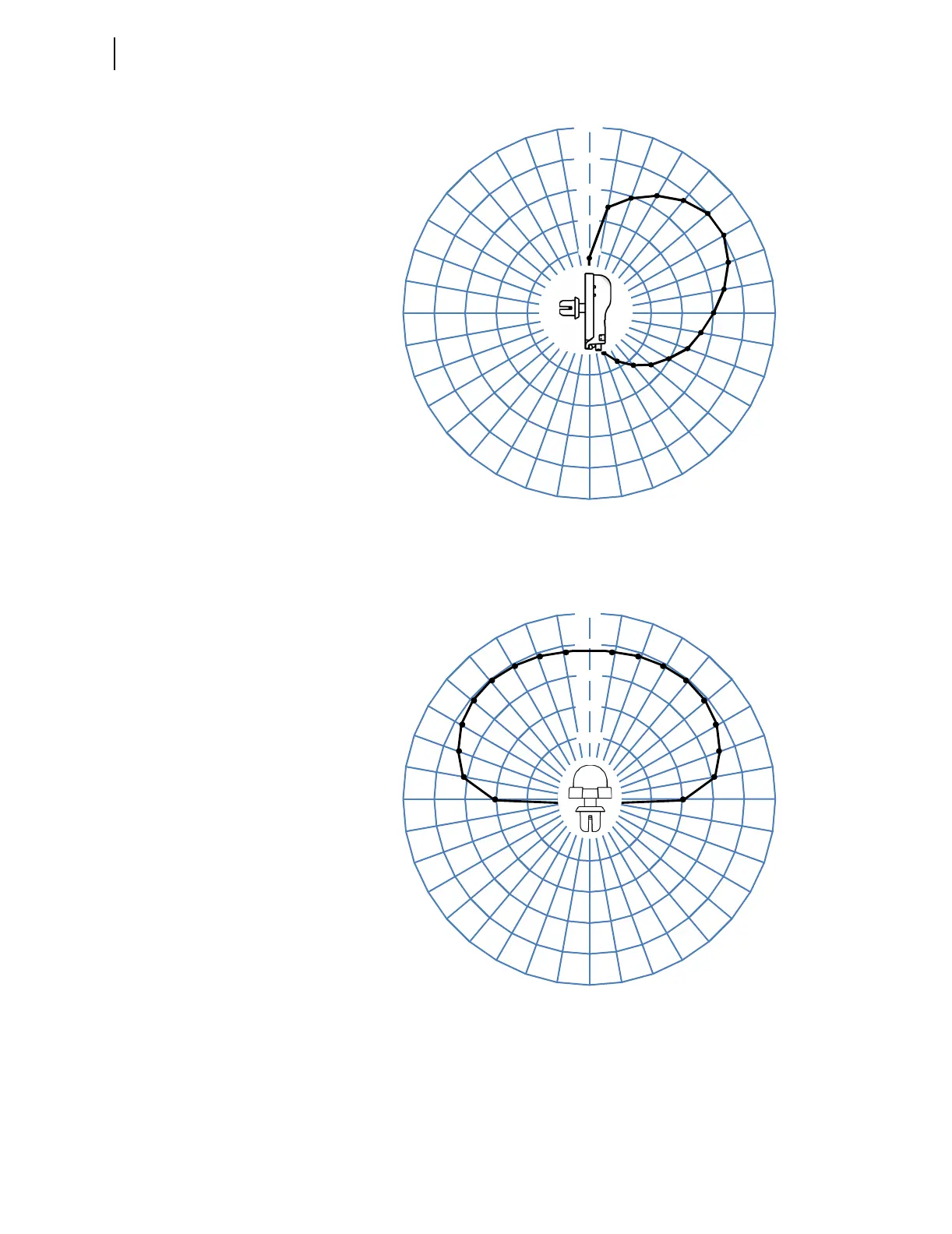

Figure 2.31 Point-Sensor Directivity (Front to Back, Above the Mounting
Plane)
Figure 2.32 Point-Sensor Directivity (Left to Right, Above the Mounting
Plane)
