[lo_geopi1-231013-01, 2, en_US]

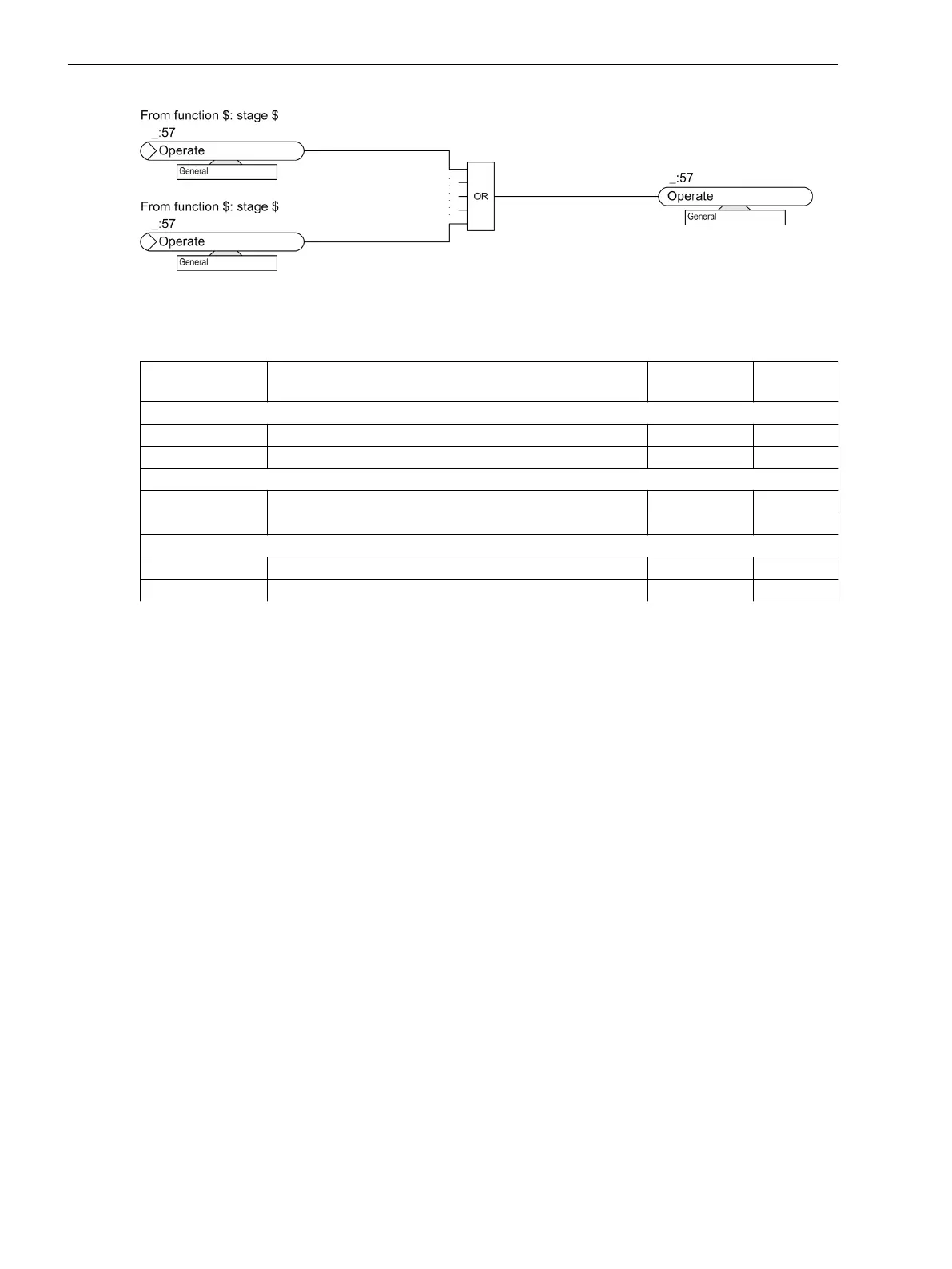

Figure 5-28 Generation of Operate Indication of the Capacitor Bank Diff. Function Group
Information List
No. Information Data Class
(Type)
Type
General
_:91:52 General:Behavior ENS O
_:91:53 General:Health ENS O
Group indicat.
_:4501:55 Group indicat.:Pickup ACD O
_:4501:57 Group indicat.:Operate ACT O
Reset LED Group
_:7381:500 Reset LED Group:>LED reset SPS I
_:7381:320 Reset LED Group:LED have been reset SPS O
Function-Group Type Capacitor Bank Side
Overview
In the Capacitor bank side function group, all of the functions that are necessary for protecting and super-
vising a capacitor bank side can be used. The Capacitor bank side function group also contains the measuring
functions.
You can find more information in chapter 10 Measured Values, Energy Values, and Supervision of the Primary
System.
The Capacitor bank side function group must always have interfacing to the Capacitor bank diff. function
group.
You will find the corresponding function groups and the folders with the usable protection functions in the
Global DIGSI library under each device type. Depending on the connected measuring points, you can load the
respective protection and supervision functions in the Capacitor bank side function group. The functions are
described in chapter 6 Protection and Automation Functions.
5.5.2.3
5.5.3
5.5.3.1
Function-Group Types
5.5 Function-Group Type Capacitor Bank Differential Protection
228 SIPROTEC 5, Overcurrent Protection, Manual
C53000-G5040-C017-8, Edition 07.2017
