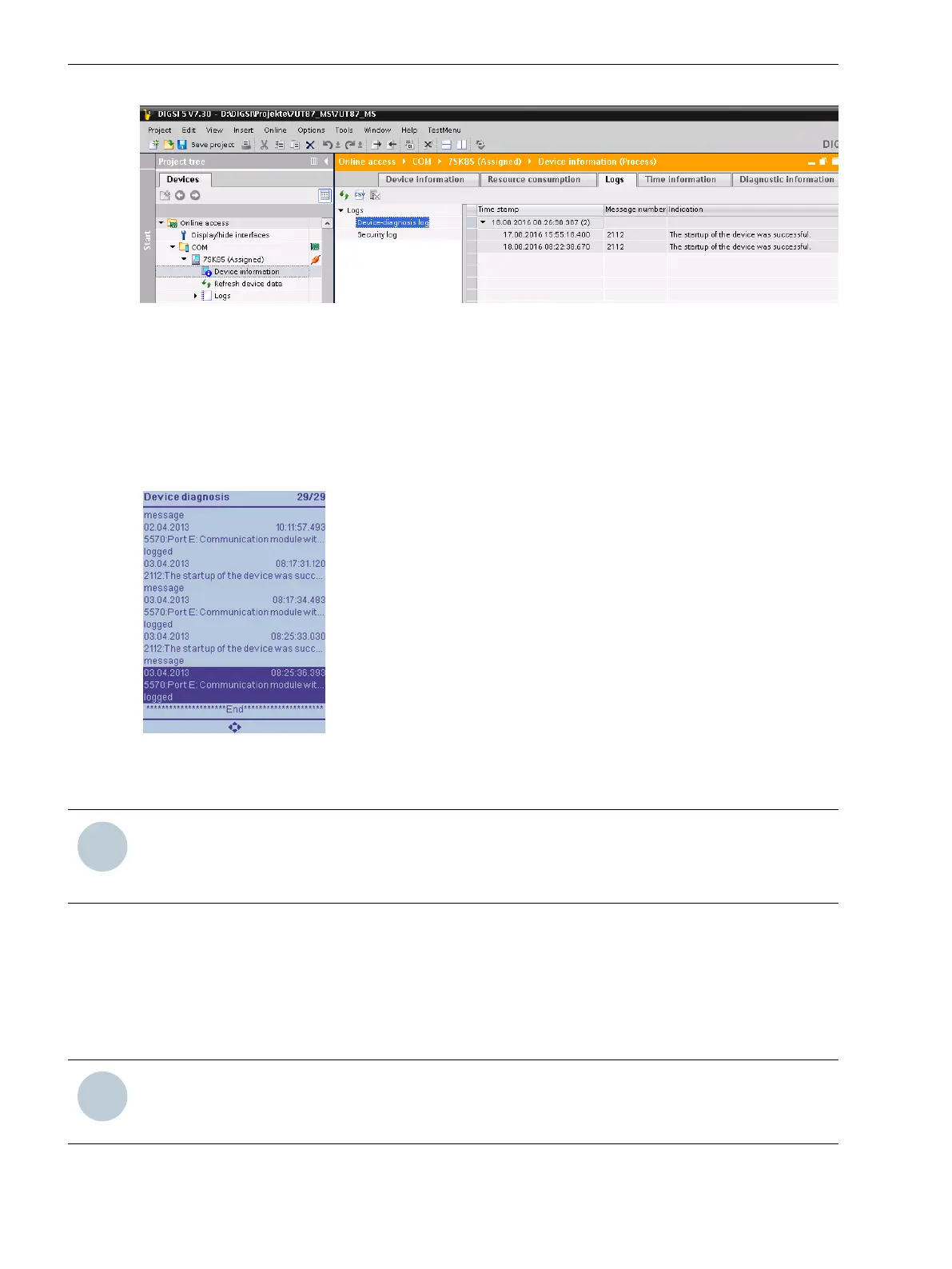

Figure 3-18 Reading the Device-Diagnosis Log with DIGSI 5
Reading on the Device through the On-Site Operation Panel in Normal Operation
•
To reach the diagnosis log from the main menu, use the navigation keys of the on-site operation panel.
Main Menu → Test & Diagnosis → Logs → Device diagnosis
•
You can navigate within the displayed indication list using the navigation keys (up/down) on the on-site
operation panel.
Figure 3-19
Reading the Device-Diagnosis Log on the On-Site Operation Panel of
the Device
i
i
NOTE
•
The device-diagnosis log cannot be deleted!
•
The logged indications are preconfigured and cannot be changed!
Saving and Deleting the Logs
Deleting the logs of the device in the operating state is unnecessary. If storage capacity is no longer sufficient
for new indications, the oldest indications are automatically overwritten with new incoming events. In order
for the memory to contain information about the new faults in the future, for example, after an inspection of
the system, a deletion of the log makes sense. Resetting the logs is done separately for the various logs.
i
i
NOTE
Before you delete the content of a log on your SIPROTEC 5 device, save the log with DIGSI 5 on the hard
disk drive of your PC.
