Stage with Inverse-Time Overcurrent Protection, Voltage-Released
Description
Logic of the Stage

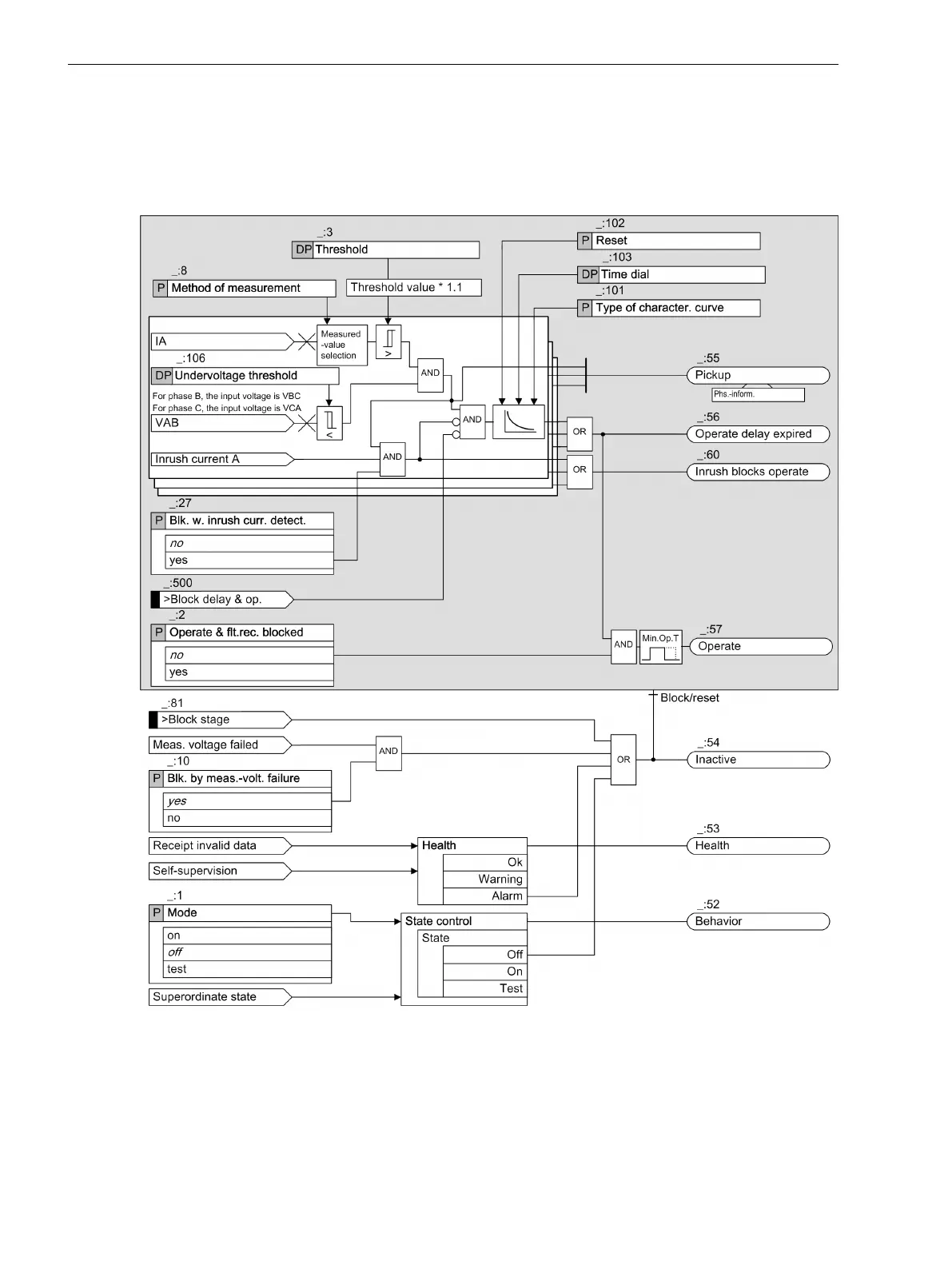

[lovolrel-210713-01.tif, 2, en_US]
Figure 6-28
Logic Diagram of the Inverse-Time Overcurrent Protection, Voltage-Released
This stage is structured in the same way as the Inverse-time overcurrent, voltage-dependent stage (see
chapter 6.4.3.1 Description). The only differences are the conditions for the pickup and the influence on the
operate curve.
