[dw_TOLP_Predefined curve, 1, en_US]

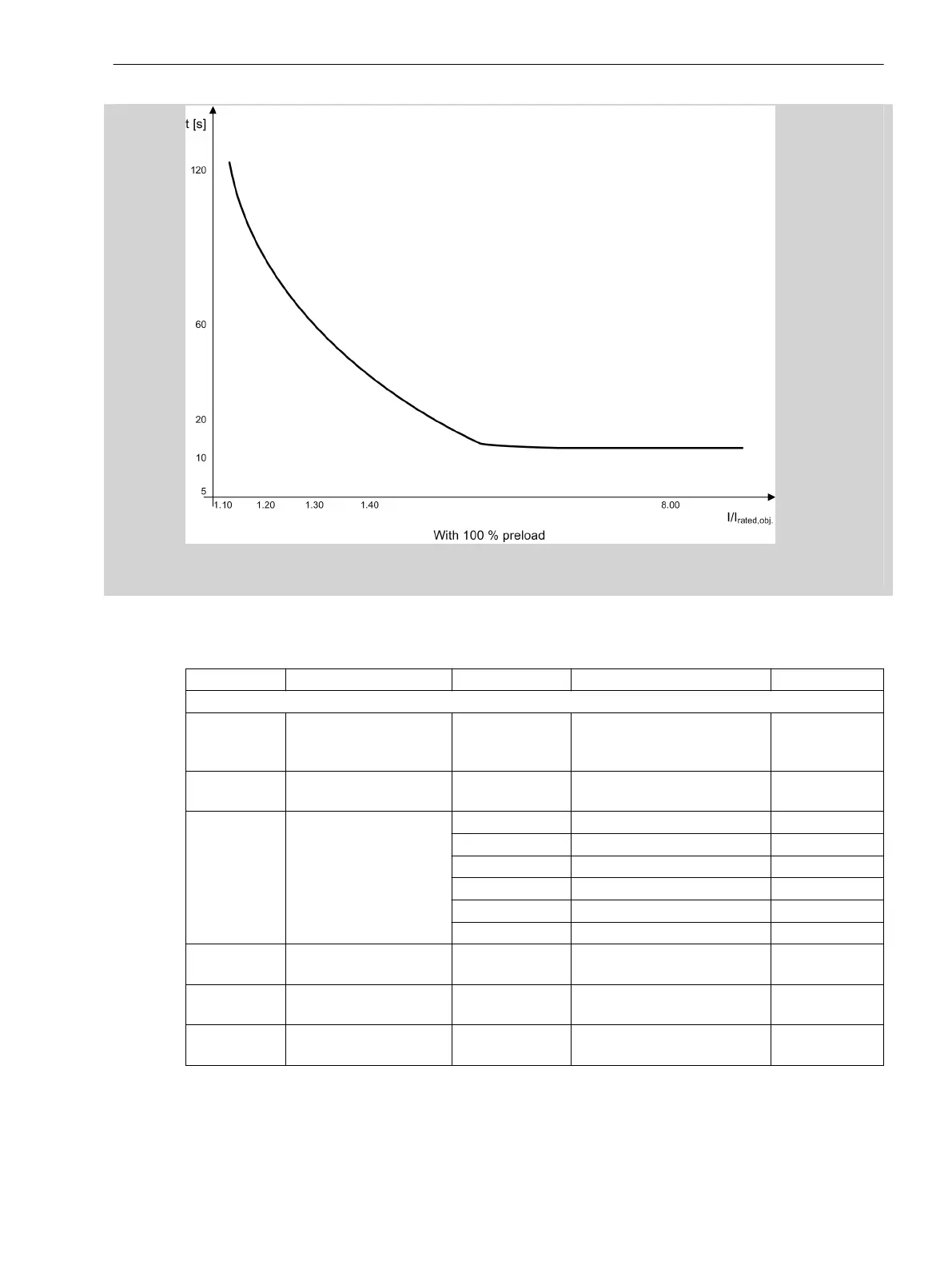

Figure 6-171
Example of the User-Defined Characteristic Curve
Settings
Addr.
Parameter C Setting Options Default Setting
General
_:1 User charact.#:Mode
•
off
•
on
•
test
off
_:2 User charact.#:Operate
& flt.rec. blocked
•
no
•
yes
no
_:102 User charact.#:Threshold
current warning
1 A @ 100 Irated 0.030 A to 35.000 A 1.000 A
5 A @ 100 Irated 0.15 A to 175.00 A 5.00 A
1 A @ 50 Irated 0.030 A to 35.000 A 1.000 A
5 A @ 50 Irated 0.15 A to 175.00 A 5.00 A
1 A @ 1.6 Irated 0.001 A to 1.600 A 1.000 A
5 A @ 1.6 Irated 0.005 A to 8.000 A 5.000 A
_:104 User charact.#:Threshold
thermal warn.
50 % to 100 % 90 %
_:105 User charact.#:Dropout
threshold operate
50 % to 99 % 90 %
_:106 User charact.#:Emerg.
start T overtravel
0 s to 15000 s 300 s
6.20.5
Protection and Automation Functions
6.20 Thermal Overload Protection, User-Defined Characteristic Curve
