Reading on the Device through the On-Site Operation Panel
•
To reach user-specific logs from the main menu, use the navigation keys of the on-site operation panel.
Main Menu → Indications → User-defined log 1/2
•
You can navigate within the displayed indication list using the navigation keys (up/down) on the on-site
operation panel.
•
Using the Info softkey, you can retrieve auxiliary information on the entry depending on the context.
[scuserrlog1-081217-01, 1, en_US]

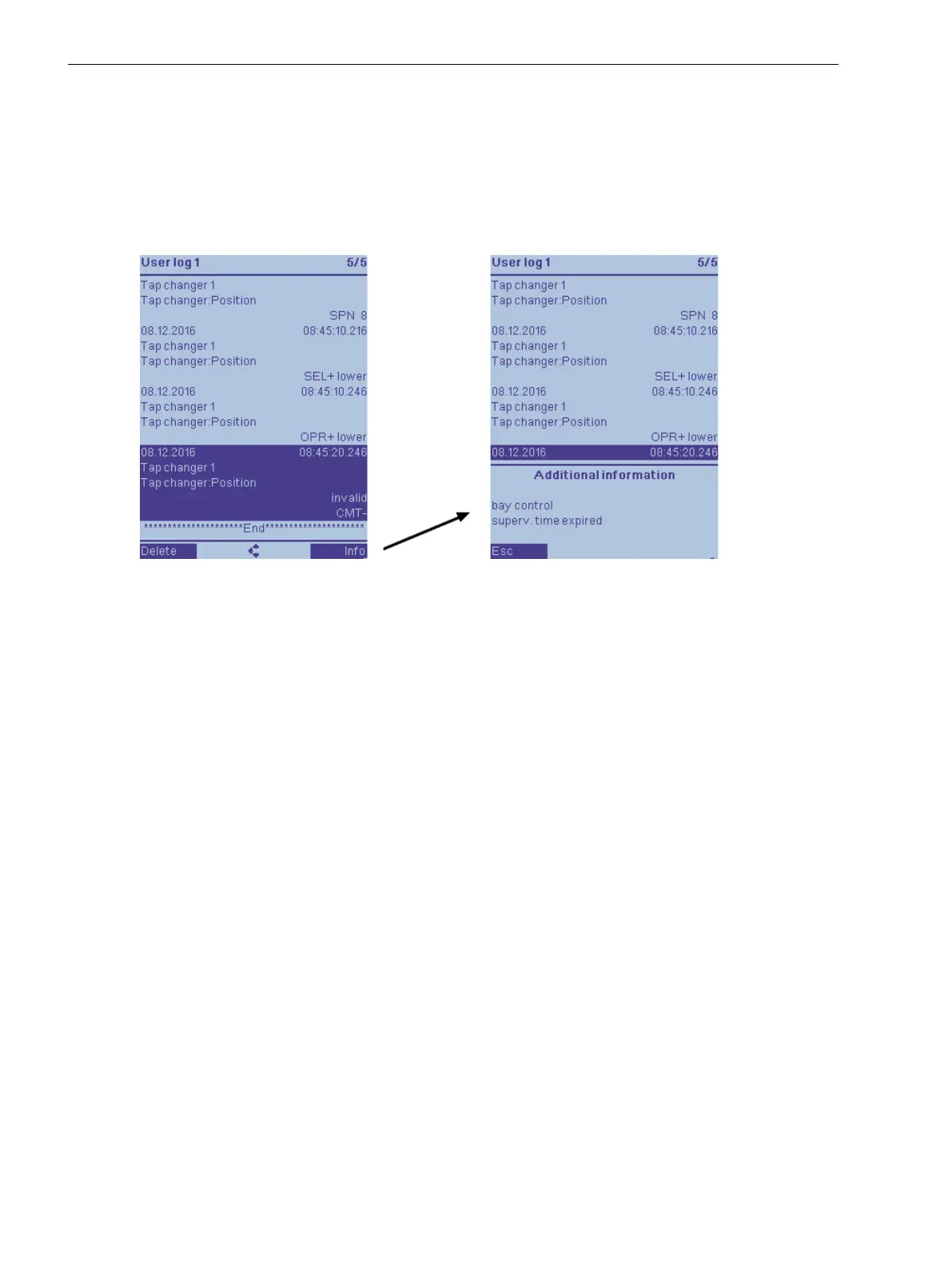

Figure 3-10 Reading the User-Defined Log on the On-Site Operation Panel of the Device
Deletability
The user-defined log of your SIPROTEC 5 device can be deleted. You will find details about this in chapter
3.1.6 Saving and Deleting the Logs.
Configuration of a User-Defined Log
The indication capacity of a created user-defined log can be configured freely in the associated column of the
information routing (matrix) of DIGSI 5:
Target → Log → U1 or U2
