Reading on the Device through the On-Site Operation Panel
•
To reach the setting-history log from the main menu, use the navigation keys of the on-site operation
panel.
Main menu → Indications → Setting changes
•
You can navigate within the displayed indication list using the navigation keys (up/down) on the on-site
operation panel.
Figure 3-13

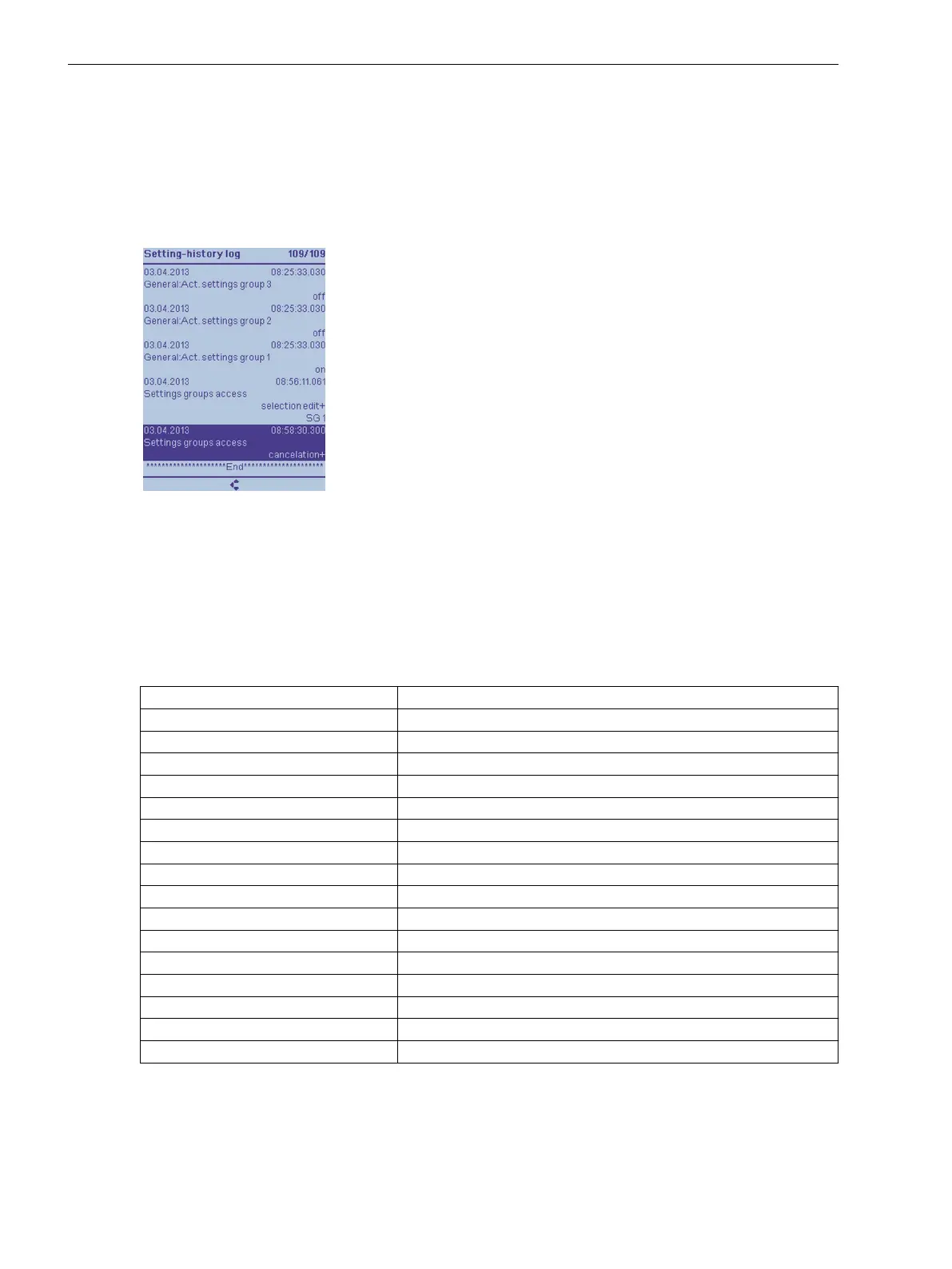

Reading the Setting-History Log on the On-Site Operation Panel of the
Device
Indication Categories in the Setting-History Log
For this log, there is selected information that is stored in case of successful as well as unsuccessful setting
changes. The following list gives you an overview of this information.
Table 3-5
Overview of Indication Types
Displayed Information Explanation
Selection editing+ Selection of settings group to be edited
Reject+ Rejection of all changes successful
PG activation+ PG activation via command successful
PG activation- PG activation via command failed
set+ Parameter value was changed
Acceptance+ Acceptance of change successful
Acceptance- Acceptance of change failed
DCF loaded DCF loaded into device
SG 1 Settings group 1
SG 2 Settings group 2
SG 3 Settings group 3
SG 4 Settings group 4
SG 5 Settings group 5
SG 6 Settings group 6
SG 7 Settings group 7
SG 8 Settings group 8
System Functions
3.1 Indications
76 SIPROTEC 5, Overcurrent Protection, Manual
C53000-G5040-C017-8, Edition 07.2017
