Resetting the Counters via Protocols IEC 60870-5-103, IEC 60870-5-104, DNP3, or Modbus
The following example shows how to use a function chart (CFC) to reset the counters with the protocols
IEC 60870-5-103, IEC 60870-5-104, DNP3, or Modbus.
EXAMPLE
•

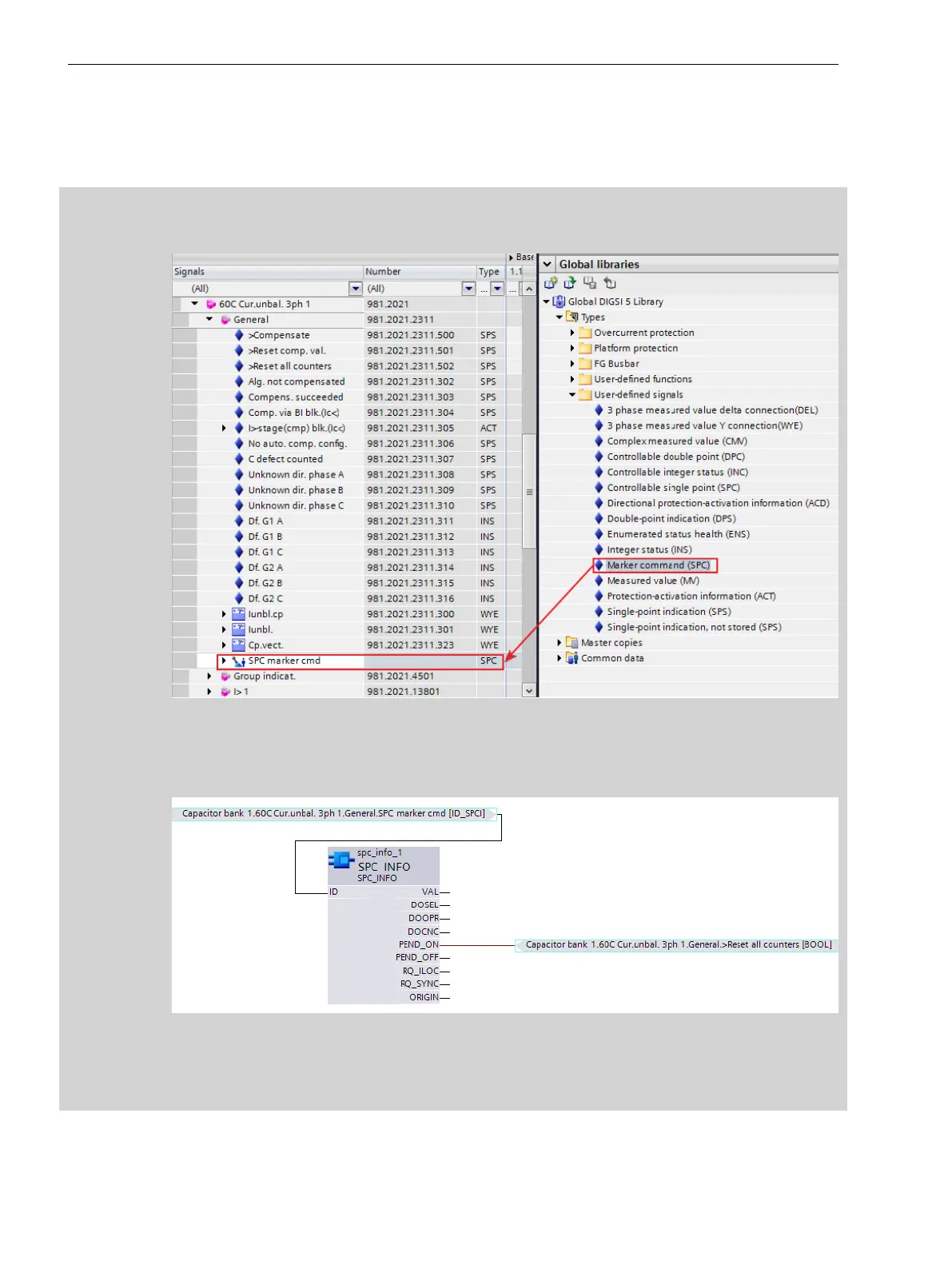

Add a Marker command (SPC) signal to the information list.
[sc_add_SPC_signal, 1, en_US]
Figure 7-16
Adding Marker Command (SPC) Signal to Information List
•
Set up the following CFC. Connect the SPC signal as input, and the signal
>Reset all counters
as
output.
[sc_CFC_60C_3ph, 1, en_US]
Figure 7-17 Function Chart (CFC): Activating the Binary Input Signal
•
Send a single-point control command from the control center to the SPC signal to activate the signal
>Reset all counters
. Then the counters are reset.
