Siemens SCALANCE W1750D UI User Manual

Wireless Network Profiles
11.1 Configuring Wireless Network Profiles
SCALANCE W1750D UI
110 Configuration Manual, 02/2018, C79000-G8976-C451-02
11.1.1
Configuring WLAN Settings for an SSID Profile
You can configure WLAN settings using the SCALANCE W UI or the CLI.
In the SCALANCE W UI
To configure WLAN settings:
1. On the
Network
tab of the SCALANCE W main window, click the
New
link. The
New
WLAN
window is displayed. The following figure shows the contents of the
WLAN
Settings
tab

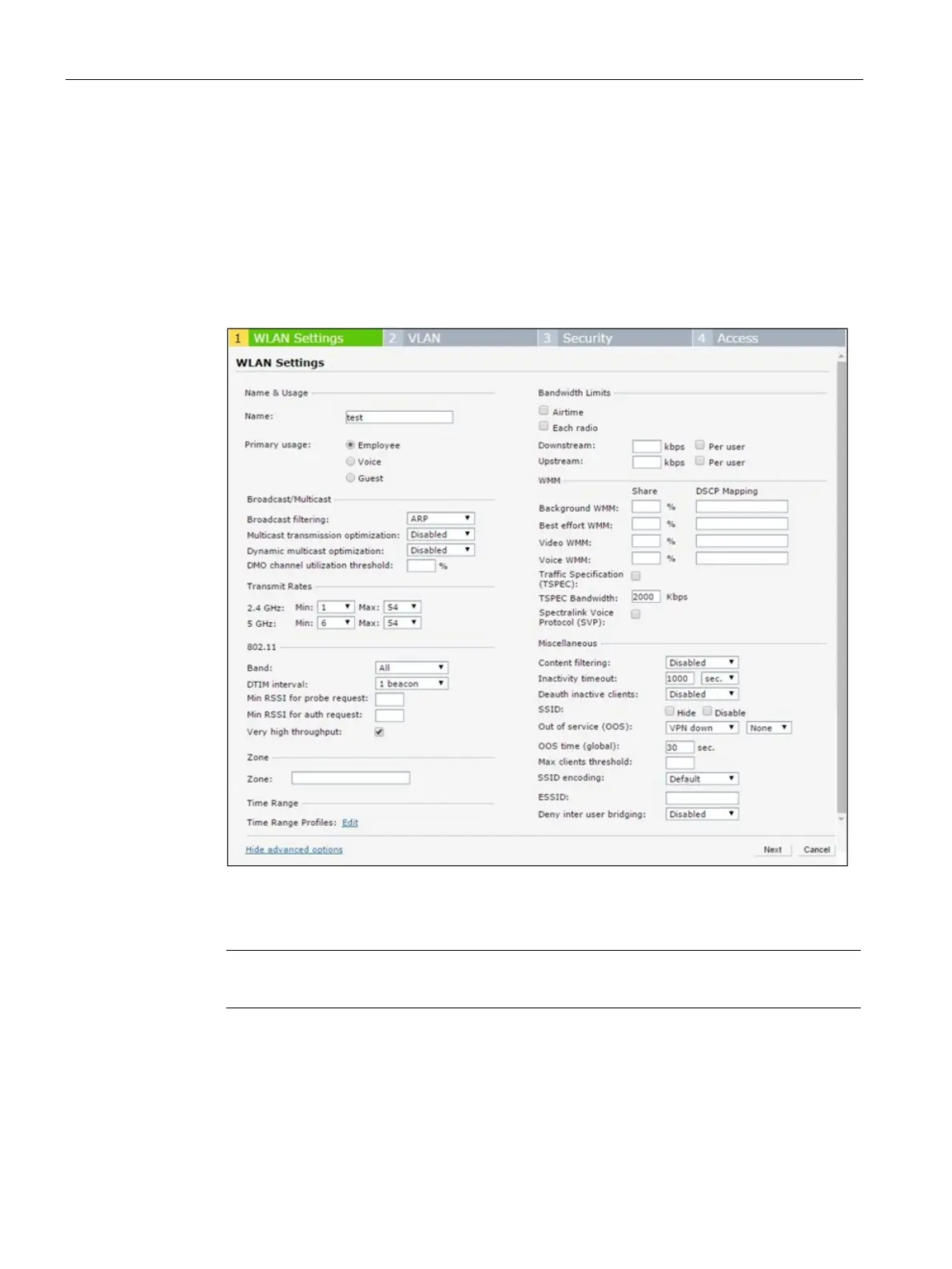

Figure 11-1 WLAN Settings Tab
2. Enter a name that uniquely identifies a wireless network in the
Name (SSID)
text box.
Note
The SSID name must be unique and may contain any special character except for ' and ".
