Wireless Network Profiles
11.1 Configuring Wireless Network Profiles
SCALANCE W1750D UI
Configuration Manual, 02/2018, C79000-G8976-C451-02
117
11.1.2
Configuring VLAN Settings for a WLAN SSID Profile
If you are creating a new SSID profile, complete the WLAN Settings procedure before
configuring the VLAN. For more information, see Configuring WLAN Settings for an SSID
Profile (Page 110).
You can configure VLAN settings for an SSID profile using the SCALANCE W UI or the CLI.
In the SCALANCE W UI
To configure VLAN settings for an SSID:
1. On the
VLAN
tab of the
New WLAN
window, perform the following steps. The following
figure displays the contents of the
VLAN
tab.

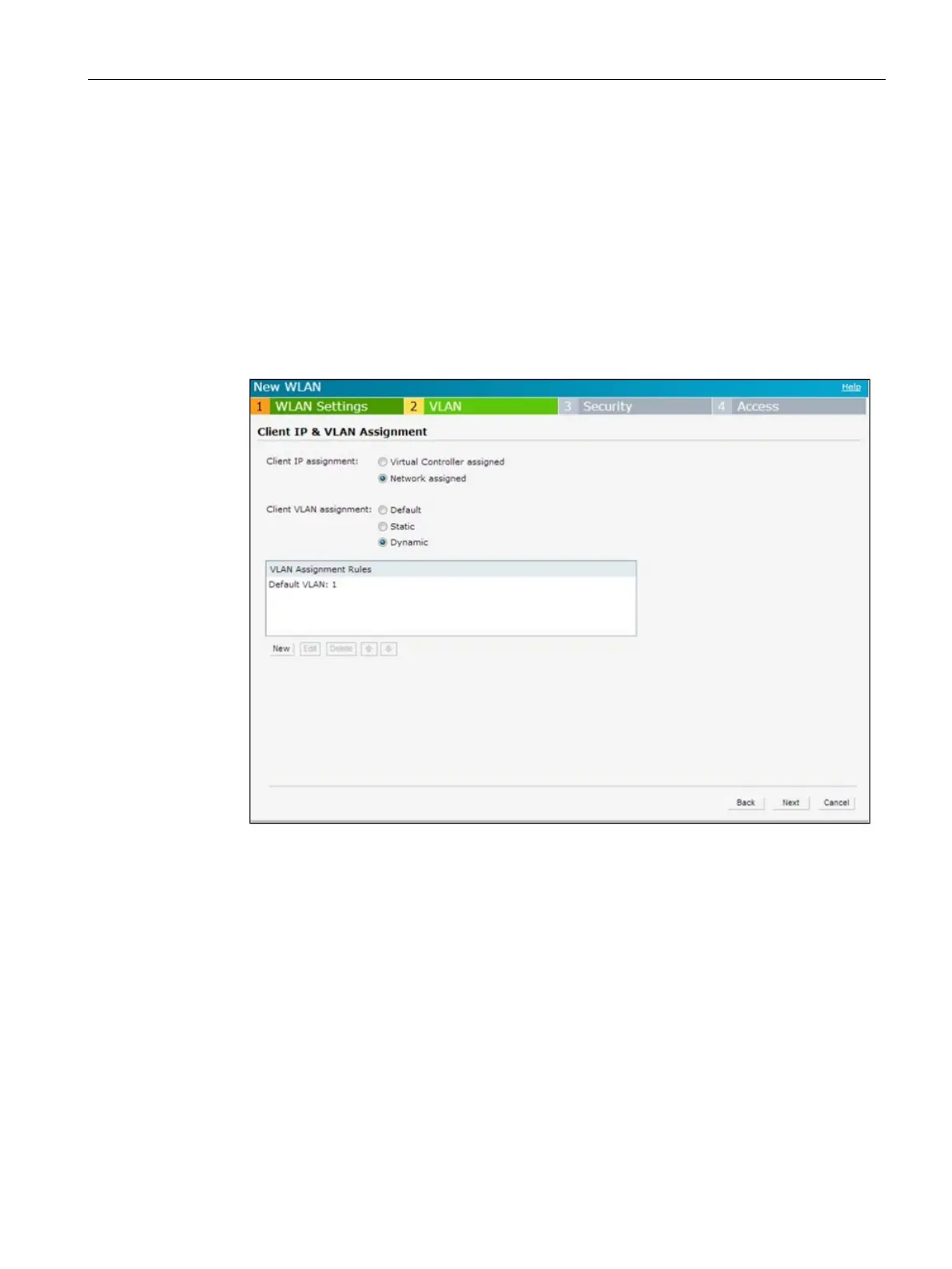

Figure 11-2 VLAN Tab
2. Select any for the following options for
Client IP assignment
.
–
Virtual Controller assigned
—On selecting this option, the client obtains the IP address
from the VC.
–
Network assigned
—On selecting this option, the IP address is obtained from the
network.
