SCALANCE W1750D UI
Configuration Manual, 02/2018, C79000-G8976-C451-02
359
22.3
Application Visibility
The AppRF graphs are based on Deep Packet Inspection (DPI) application and Web Policy
Enforcement (WPE) service, which provide application traffic summary for the client devices
associated with an AP. The
AppRF
link above the activity panel of the dashboard is
displayed only if
AppRF visibility
is enabled in the
System
window.
The following figure provides a view of the AppRF dashboard:

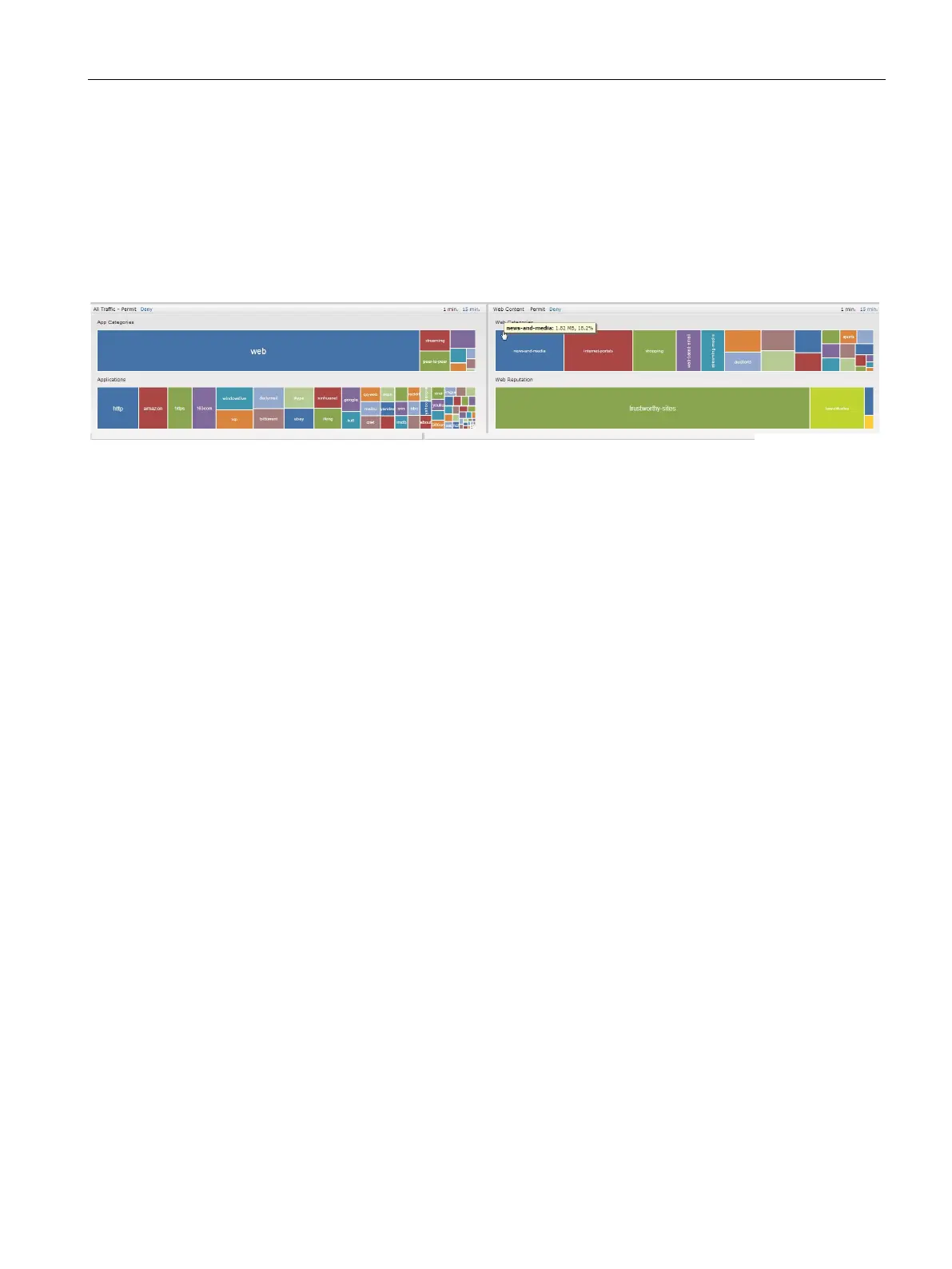

Figure 22-1 AppRF Dashboard
The AppRF dashboard presents four different graph areas with data graphs on all client
traffic and content filters based on App Category, Web Category, and Web Reputation. Click
each category to view the real-time client traffic data or usage trend in the last 15 minutes or
1 minute.
The
permit
and
deny
monitoring tabs in the All Traffic and Web Content sections provide
enforcement visibility support.
●
Permit
represents the allowed or permitted traffic on the AP.
●
Deny
represents all the blocked URLs and traffic .
