VPN Configuration
19.2 Configuring a Tunnel from an AP to a Mobility Controller
SCALANCE W1750D UI
Configuration Manual, 02/2018, C79000-G8976-C451-02
309

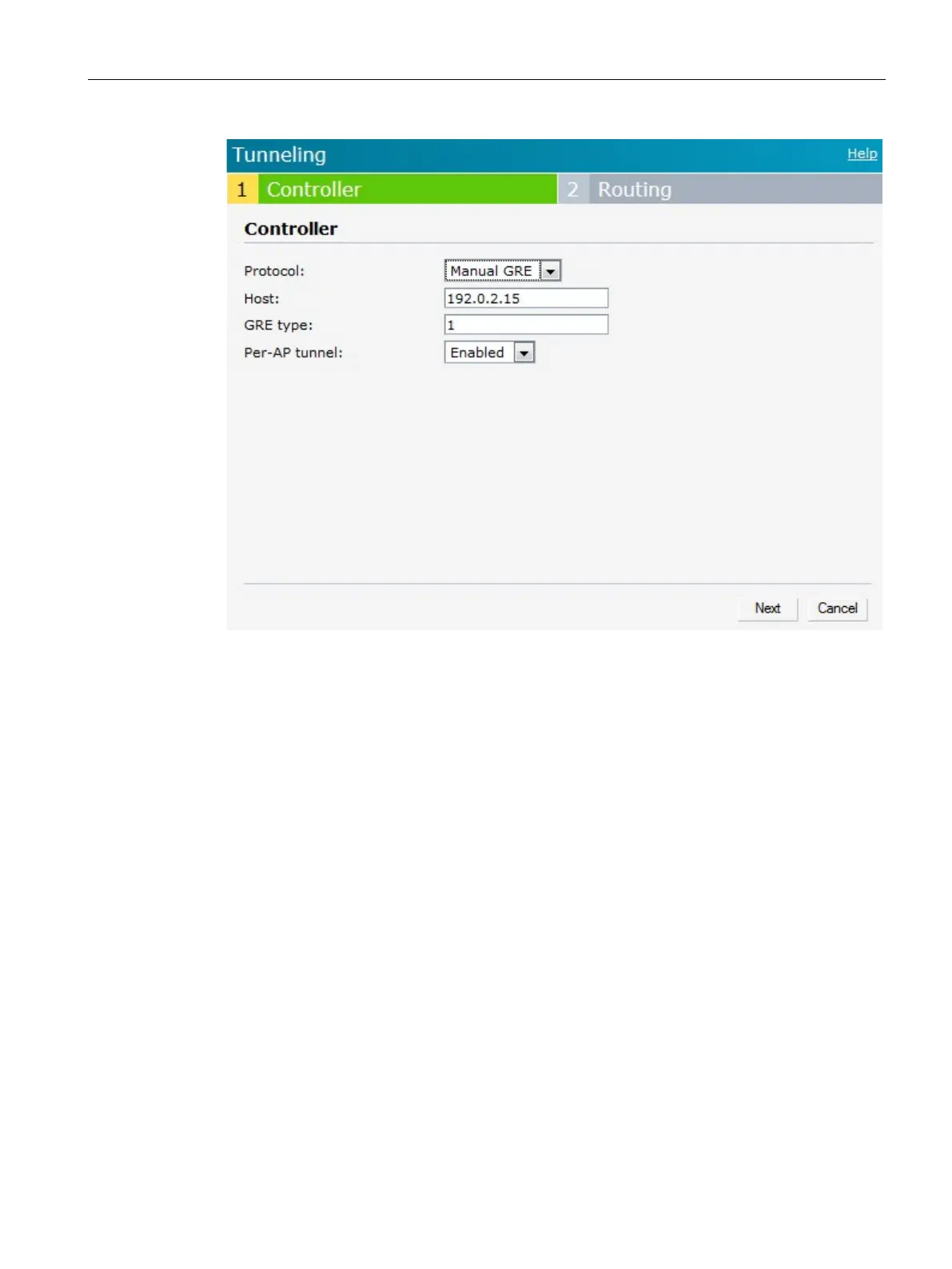

Figure 19-2 Manual GRE Configuration
4. Click
Next
to continue. When the GRE tunnel configuration is completed on both the AP
and the controller, the packets sent from and received by an AP are encapsulated, but
not encrypted.
In the CLI
To configure a manual GRE VPN tunnel:
(scalance)(config)# gre primary <name>
(scalance)(config)# gre type <type>
(scalance)(config)# gre per-ap-tunnel
(scalance)(config)# end
(scalance)# commit apply
To view VPN configuration details:
(scalance)# show vpn config
To configure GRE tunnel on the controller:
(scalance)(config)# interface tunnel <Number>
(scalance)(config-tunnel)# description <Description>
(scalance)(config-tunnel)# tunnel mode gre <ID>
(scalance)(config-tunnel)# tunnel source <controller-IP>
