Deep Packet Inspection and Application Visibility

22.3 Application Visibility

SCALANCE W1750D UI

Configuration Manual, 02/2018, C79000-G8976-C451-02

363

Web Categories Charts

The web categories chart displays details about the client traffic to the web categories. By

clicking the rectangle area, you can view the following graphs, and toggle between the chart

and list views.

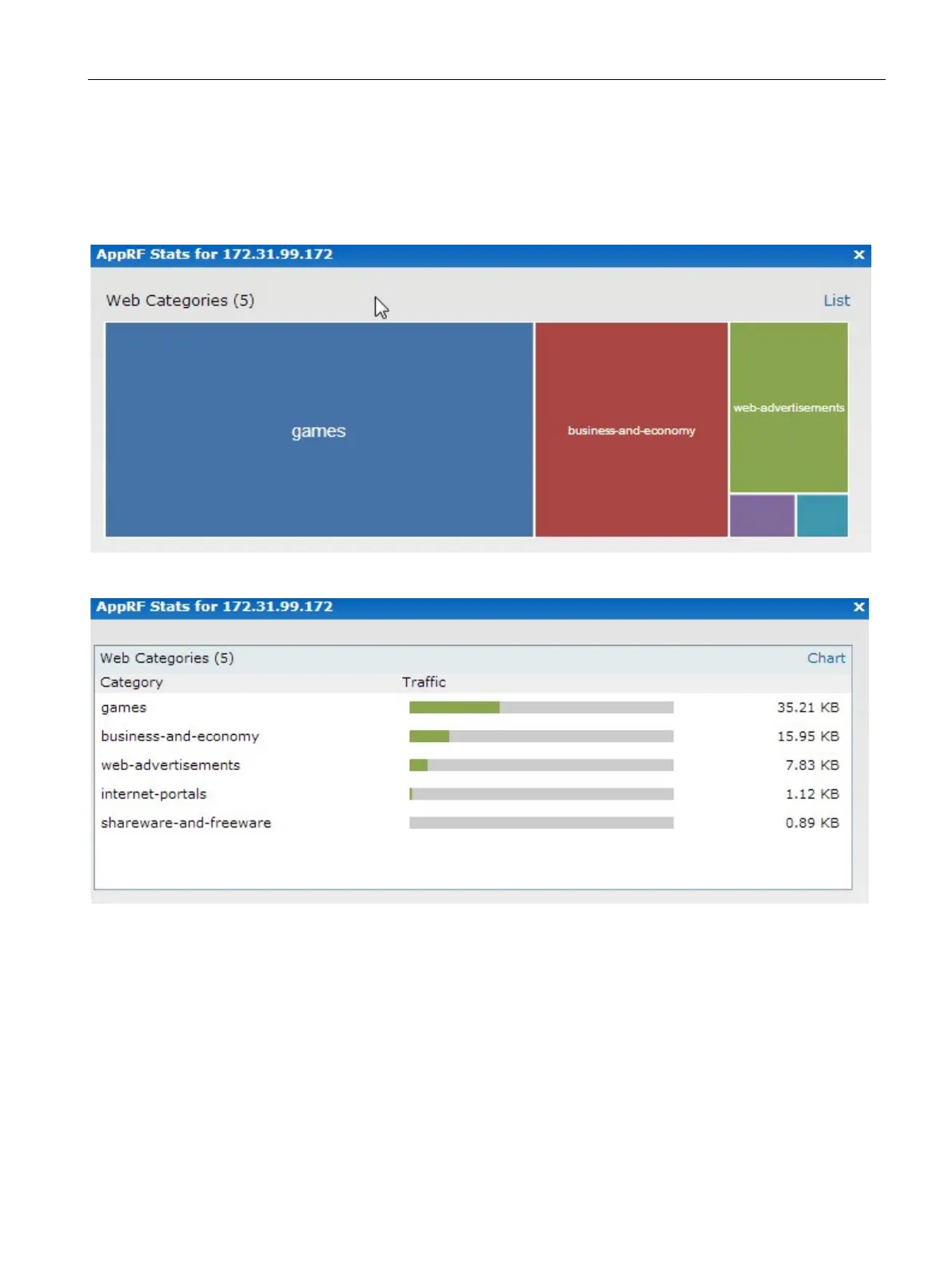

Figure 22-8 Web Categories Chart: Client View

Figure 22-9 Web Categories List: Client View
