Three-Dimensional Transformation Operations

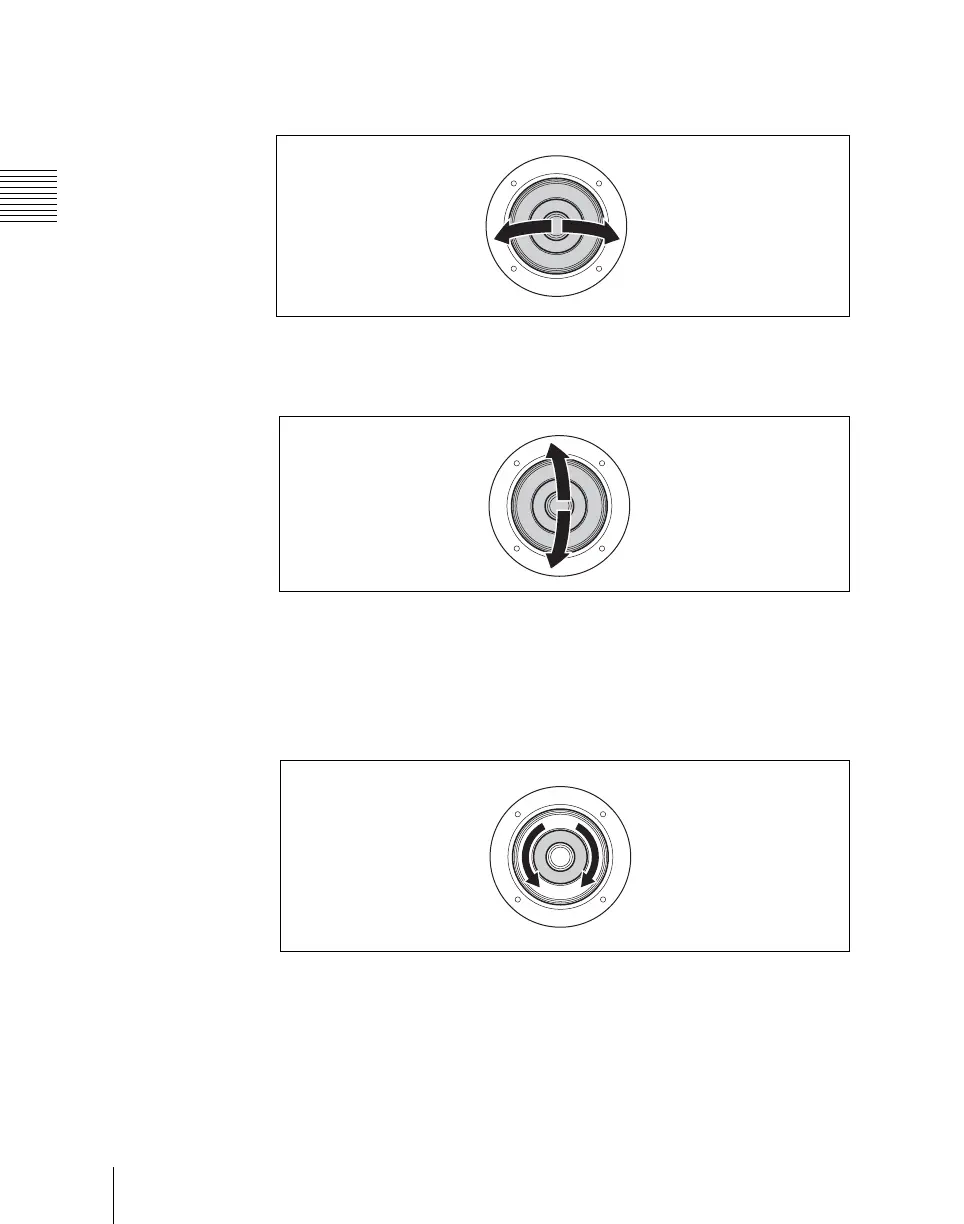

• To change on the x-axis, move the joystick horizontally.
Parameter values increase as you move to the right, and decrease as you
move to the left.
• To change on the y-axis, move the joystick vertically.
Parameter values increase as you move upward, and decrease as you
move downward.
• To change on the z-axis, rotate the joystick knob.
Parameter values increase as you rotate clockwise, and decrease as you
rotate counterclockwise.
However, when you have pressed the [LOC XYZ] button to move the
image, z-axis parameters increase as you rotate counterclockwise, and
decrease as you rotate clockwise.
To reduce the rate of change of the parameters (fine mode)
Carry out the trackball or Z-ring operations while holding down the [SRC]
or [TRGT] button.
5
To restrict the change in the transformation to a specific axis, press the [X],
[Y], or [Z] button, tuning it on.
To Next Page
