DME Special Effect Operations

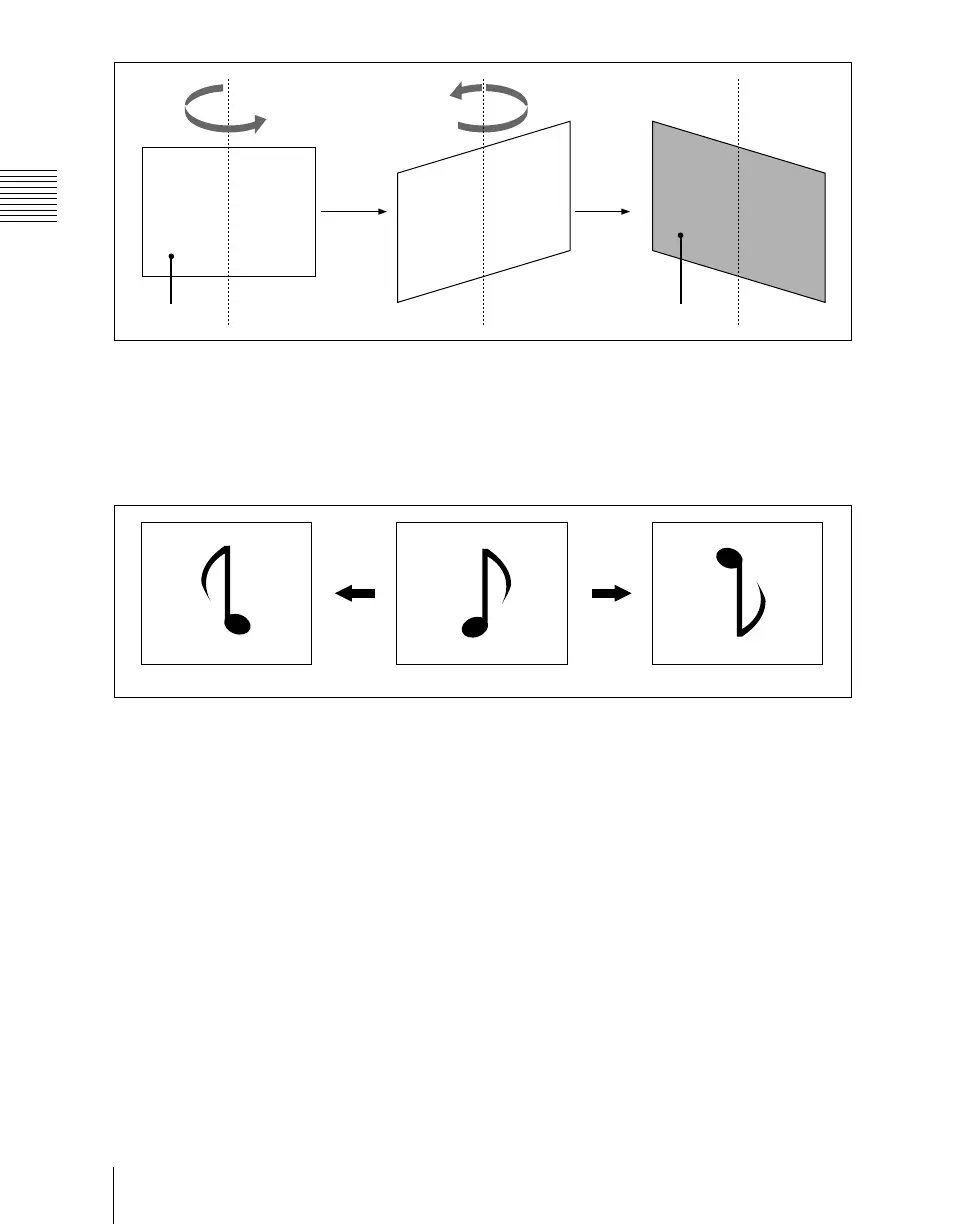

Front and back sides
Signal inversion (Invert effect)
Inverts the input video signal and/or key signal horizontally or vertically. You
can make separate settings for the front and back (see page 556).
Inversion of input signal
Key density adjustment
Adjusts the key density for the key signal input to the DME (see page 556).
Key source selection
Selects either the key signals received from the switcher or the key signals
generated in the DME for application to the front and back of the image (see
page 557).
Color mix setting
This is a combination of two colors with a pattern generator. This color mix
signal can be used to fill parts such as a background or border (see page 475).
Front Back
Horizontal inversion Input signal Vertical inversion
