2.12 How to use HAL drivers
2.12.1 HAL usage models

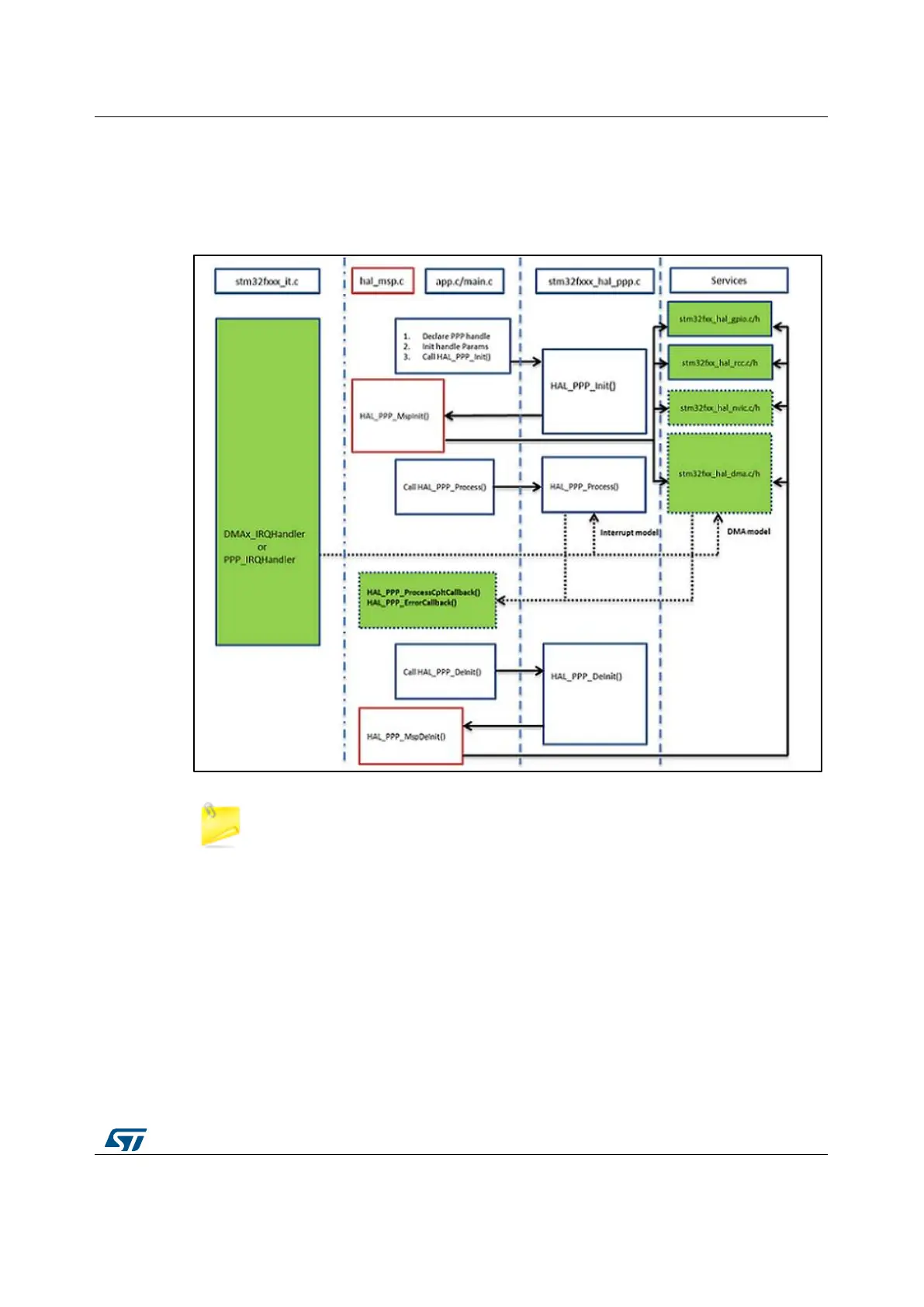

The following figure shows the typical use of the HAL driver and the interaction between
the application user, the HAL driver and the interrupts.
Figure 6: HAL driver model
The functions implemented in the HAL driver are shown in green, the functions
called from interrupt handlers in dotted lines, and the msp functions implemented
in the user application in red. Non-dotted lines represent the interactions between
the user application functions.
Basically, the HAL driver APIs are called from user files and optionally from interrupt
handlers file when the APIs based on the DMA or the PPP peripheral dedicated interrupts
are used.
When DMA or PPP peripheral interrupts are used, the PPP process complete callbacks are
called to inform the user about the process completion in real-time event mode (interrupts).
Note that the same process completion callbacks are used for DMA in interrupt mode.
