Installation and Connection
5. Installation and Connection
5.1. General Installation Instructions
All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to
when installing and operating the sensor. The sensor must be protected against mechanical influences. Install
the weQube such that its installation position cannot be inadvertently changed. The wenglor mounting system
is recommended for installing the sensor. It must be assured that the mounting screws have a thread engage-
ment length of 5 to 7 mm.

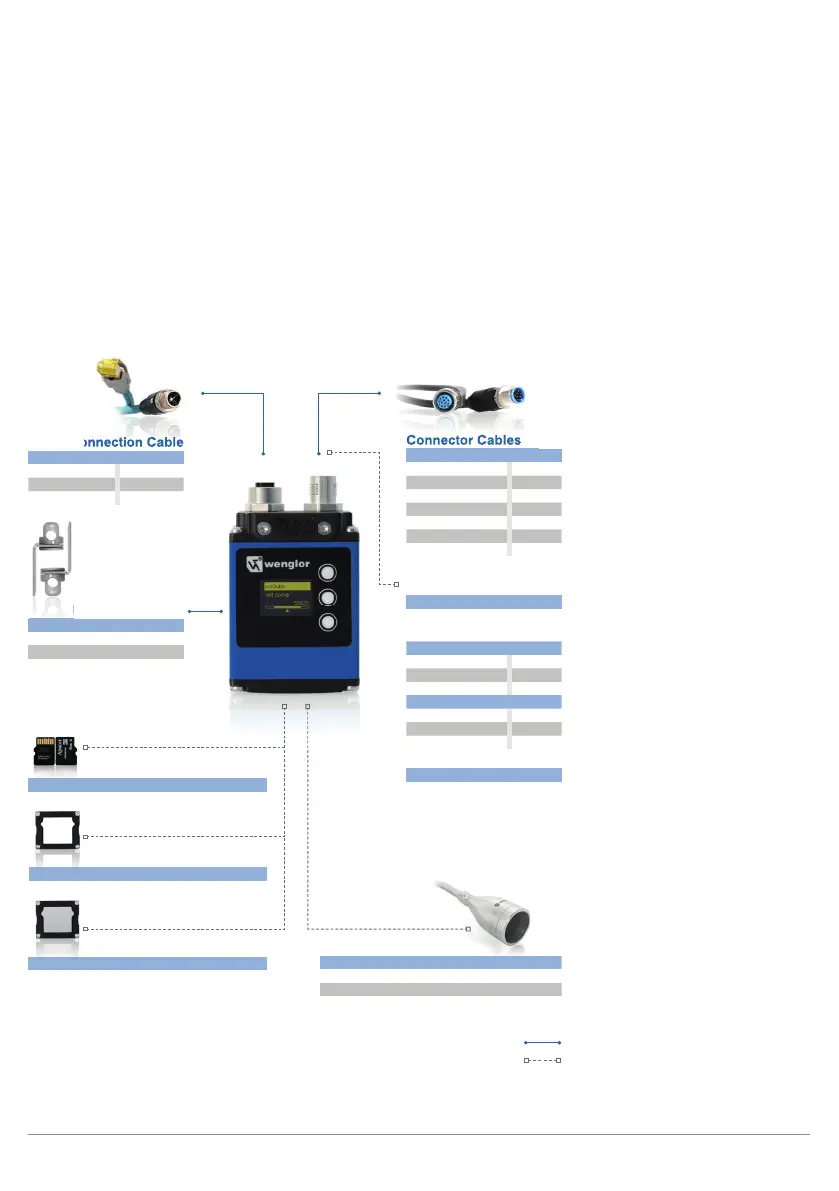

5.2. System Overview
Connector Cables
M12, 12-pin to open end
ZDCL001 (straight) 2 m
ZDCL002 (straight) 5 m
ZDCL003 (straight) 10 m
ZDCL004 (angled) 2 m
ZDCL005 (angled) 5 m
ZDCL006 (angled) 10 m
Connection Cable
M12, 8-pin to RJ45
ZC1V001 2 m
ZAV50R502 5 m
ZC1V002 10 m
Mounting System
ZMBID1202
ZMWZF0001
Alternative Micro SD Card
ZNNG013*
Replacement Disc weQube
ZNNG012
Polarization Filter, Circular
ZNNG004
Connection Cable
M12, 12-pin to M12, 12-pin
ZDCV001 2 m
ZDCV002 5 m
ZDCV003 10 m
M12, 4-pin to M12, 4-pin
BW2SG2V1-2M 2 m
BG2SG2V1-2M 2 m
BG2SG2V3-2M 2 m
Connecting Module
M12, 12-pin to trigger / illumination
ZDCG001
Interface Cable
M12, 12-pin to RS-232
ZDCG002
Legend
Required accessories
Optional accessories
Included in delivery *
Protection Housing
ZNNS001
ZNNS002
Connection Cable
Connector Cables
Mounting System
