EN
168
Software Module
Property
Event 1 to 4
Delay

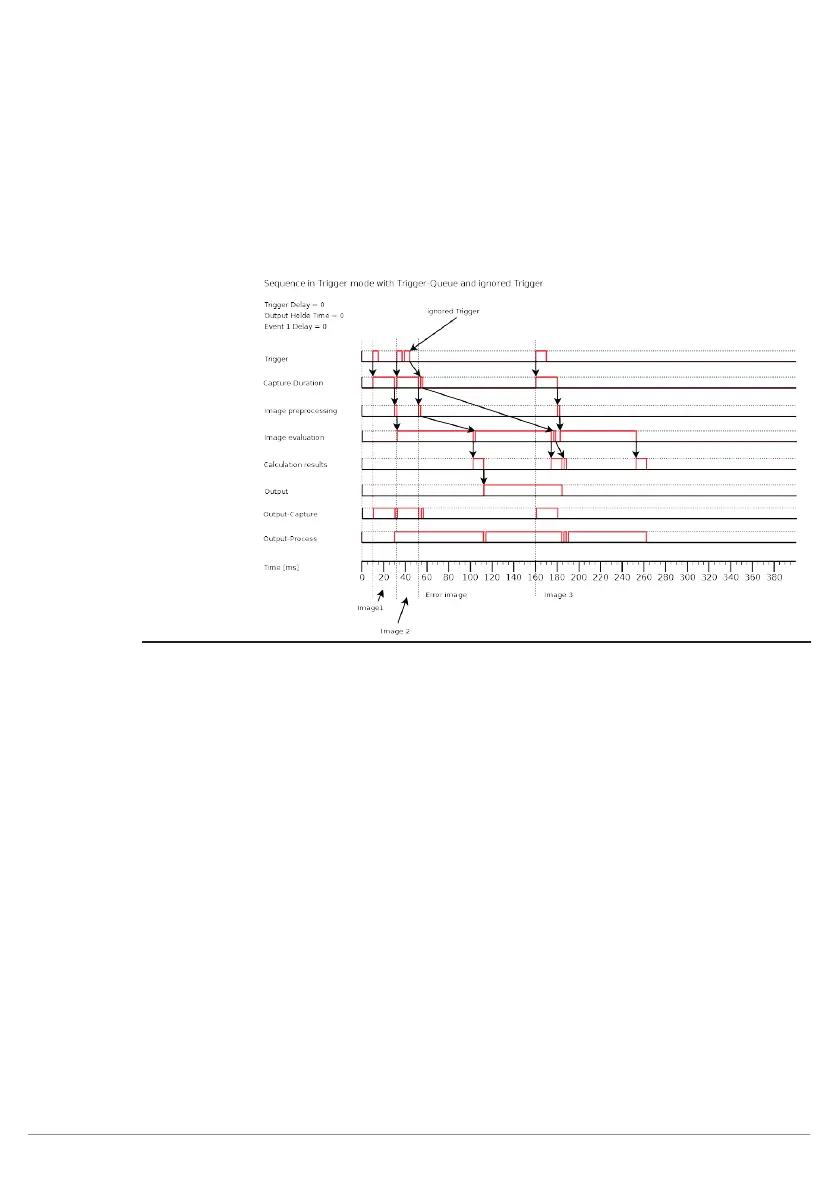

Note: In the trigger mode, the next trigger signal for renewed image record-
ing might be generated although the sensor is still busy with image evalua-
tion or calculation. In this case, the output process signal has not yet been
reset to “1”, so that the trigger signal does not cause renewed image record-
ing at the sensor. An “empty” image is generated which is subjected to the
entire image processing sequence, thus leading to negative results. This
assures that there’s a result for each and every trigger pulse.
