Setting the Reference Range Type (Mode)

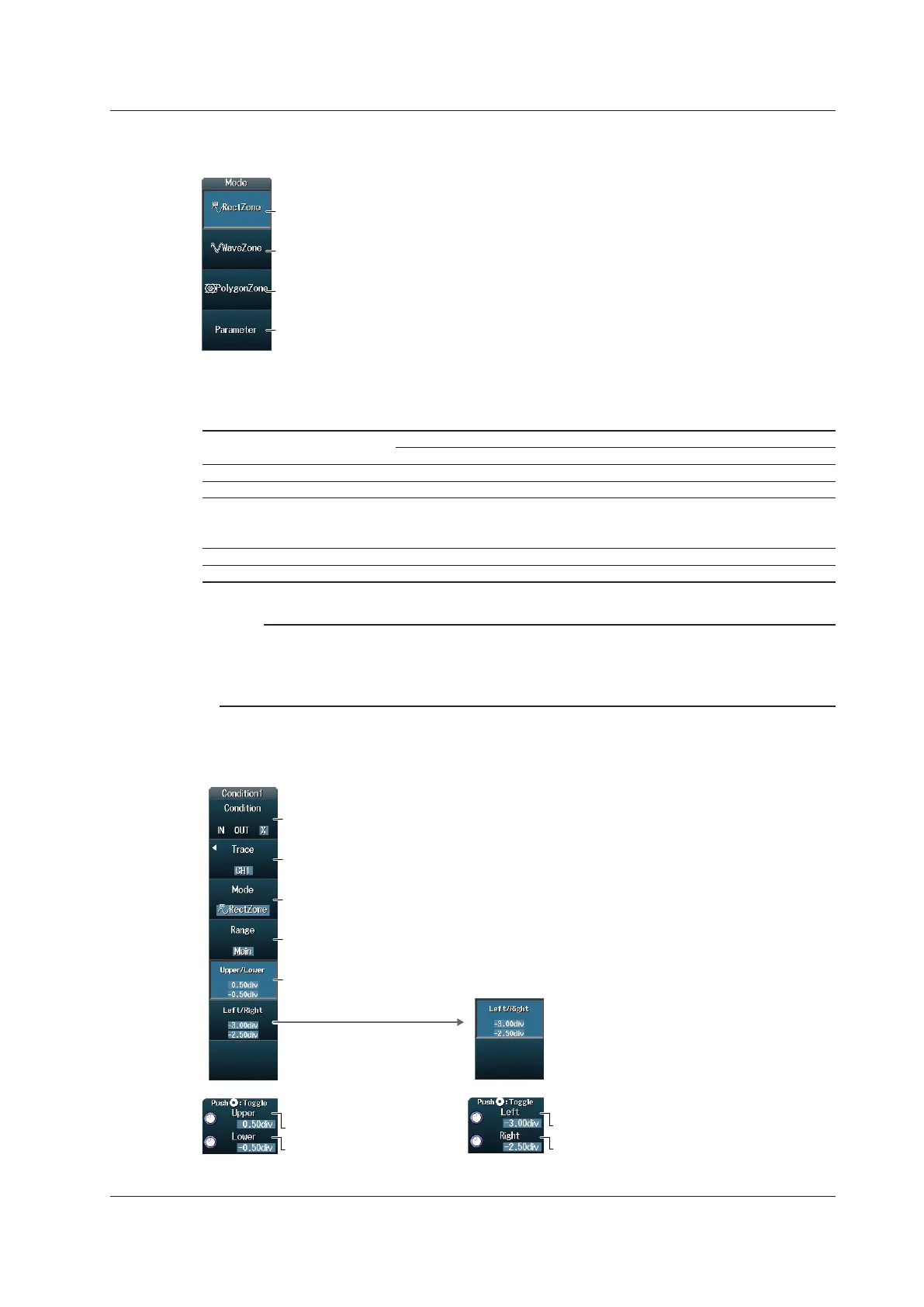

Press the Mode soft key to display the following menu.
Waveform zone
Polygonal zone
Waveform parameter
Rectangular zone
Under the following circumstances, there are reference range types that you cannot specify.
• When the source waveform is LOGIC(L), LOGIC(A|B),* XY1 to XY4, FFT1, or FFT2
• When the reference condition is 2 or 4 and the source waveform is Math1 to Math4
Source Waveform
Reference Range Type
RectZone WaveZone PolygonZone Parameter
CH1 to CH8 Yes Yes Yes Yes
LOGIC(L) and LOGIC(A|B)* No No No Yes
Math1 to Math4
Reference condition 1 and 3 Yes Yes Yes Yes
Reference condition 2 and 4 No No No Yes
XY1 to XY4 Yes No Ye s Ye s
FFT1 and FFT2 No No No Yes
* LOGIC(A|B) is available on models with the /L16 option.
Note
Using the CH8 Terminal and LOGIC(L) Port
When you perform GO/NO-GO determination, you cannot use the CH8 terminal and LOGIC(L) port as the
source at the same time. Specify the source that you want to use in advance by pressing either the CH8 key
or the L key.
Rectangular Zone (RectZone)
Press the RectZone soft key to display the following menu.
Reference standard.
The rectangular zone appears when this is set to IN or OUT.
Set the horizontal range.
Set the reference range type (RectZone).
Set the source waveform (CH1 to CH8, Math1 to Math4,
*
XY1 to XY4).
* Math1 to Math4 can be specified when the reference condition is 1 or 3.
Set the vertical range.
• Set the top side.
Configure the range of the
rectangular zone.
• Set the bottom side.
• Set the left side.
Configure the range of the
rectangular zone.
• Set the right side.
Set the GO/NO-GO determination source window (Main, Zoom1, or Zoom2).
Set this when the source waveform is CH1 to CH8 or Math1 to Math4.
2.23 Performing GO/NO-GO Determination
