9-2
IM DLM4038-02EN
9.1 Automatically Measuring Waveform Parameters
Setting the Source Waveform and the Measurement Items
(Item Setup)
Press the Item Setup soft key and then a soft key from CH1 to CH8, LOGIC(L), LOGIC(A), LOGIC(B),
or Math1 to Math4, to display the following menu.
* You can select CH8 or LOGIC(L), depending on which channel’s corresponding key (CH8 or L) is
illuminated. Specify the channel that you want to measure in advance by pressing either the CH8
key or the L key.
LOGIC(A) and LOGIC(B) are available on models with the /L16 option.

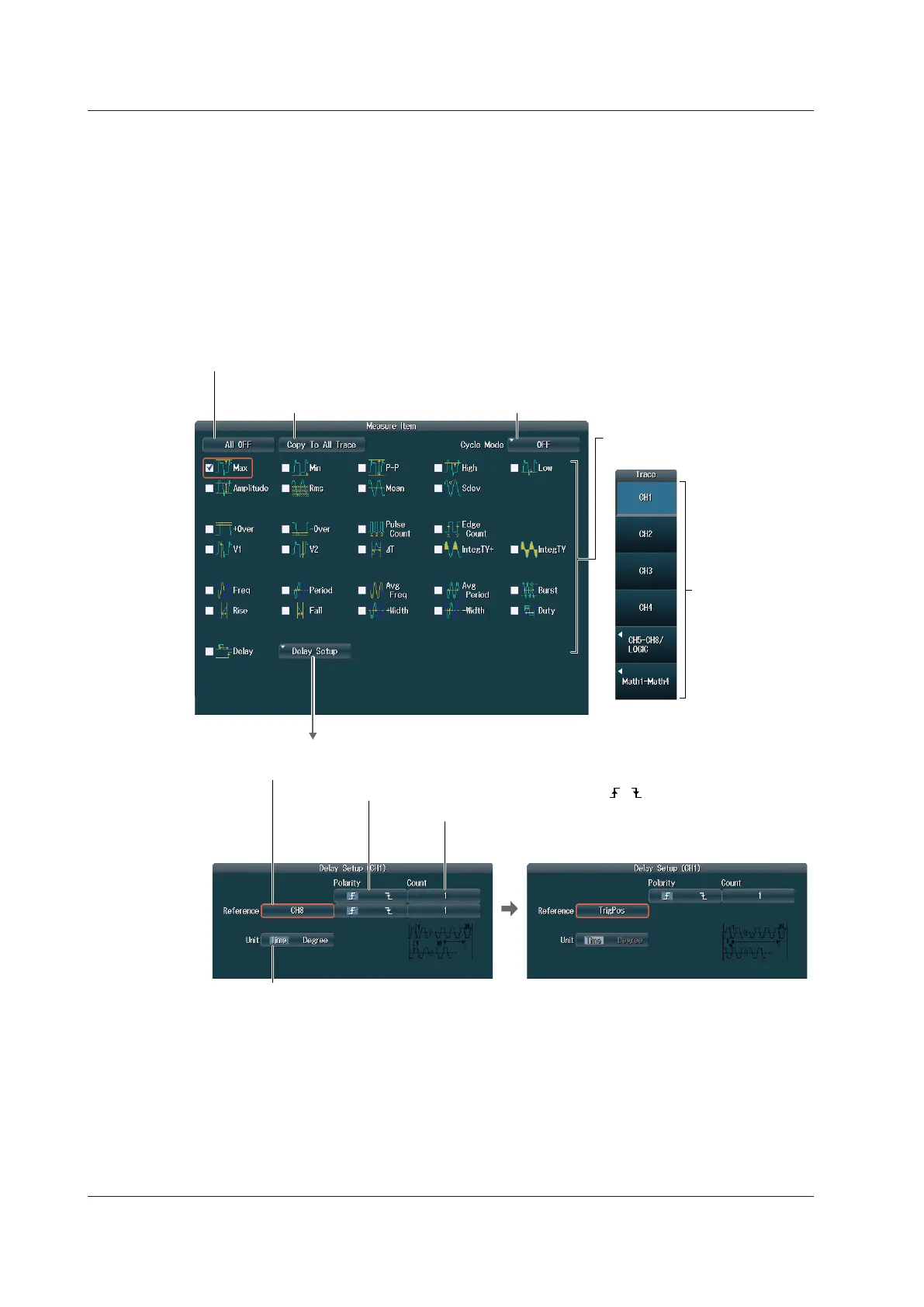

When the Measurement Source Waveform Is CH1 to CH8 or Math1 to Math4
Press the soft key
want to configure.
Clears the check boxes of all the measurement items
Copies the settings on this screen
to all channels
Set the cycle mode (OFF, 1 Cycle, or N Cycle).
Set the reference (CH1 to CH8, Math1 to Math4, TrigPos).
Set the unit (Time, Degree).
Set the polarity of the edge to be detected ( , ).
Set which counted edge to use as a detected point.
Select the measurement items
that you want to use.
Configure the measurement of delay between waveforms.
• When Reference is set to TrigPos.
To Next Page
